Description
Features
• Moveable Electric / Hydraulic Cabinet with hand-release power unit.
• Mechanical hand-release safety lock with automatic activation.
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed.
• Can be made portable by using the OPTIONAL dolly, Kit No: EM002.
| Model | EM06 |
| Lifting Capacity | 6,000lbs |
| Lifting Time | 26S |
| A: Lifting Height | 41 3/4″ (1060mm) |
| A: Minimum Height | 4 1/8″ (105mm) |
| B: Platform Width | 80″ (2030mm) |
| C: Swing Width | 57 1/2″ (1460mm) |
| D: Overall Length | 77 1/8″ (1960mm) |
| Gross Weight | 1202lbs (545kg) |
| Motor | 2.0HP,220V/60Hz,single phase |
Detailed Images
-

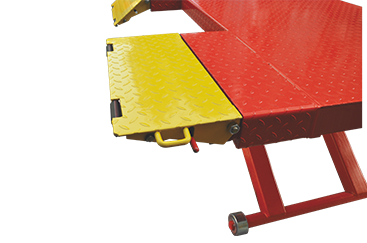

- Adjustable approach ramps quickly extend the length of the platform.
-

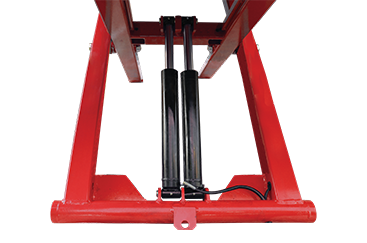

- Two hydraulic cylinders and hydraulic safety locks.
-

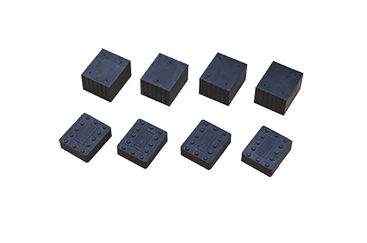

- Both 1 1/2” and 3” height rubber pads included as standard supply.
-

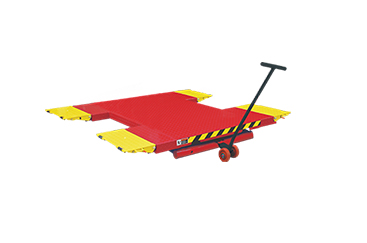

- Can be made portable by using the optional dolly,kit No.:EM002
Shipping Information
