Features
● The patented design of 4097X features double safety locks for both lower and upper platforms;
● Capacity: 7,000lbs for upper platforms, 9,000lbs for lower platforms;

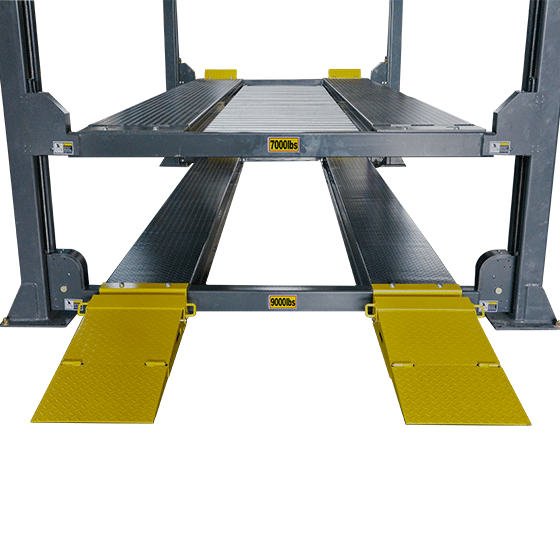

● Embedded platform design allows one set of drive-in ramps to serve both lower and upper platforms, minimum height just 7 1/16”;
● Special structure design to allow back-to-back installation;
● Fully operational control box that placed at the entry side enhances both user safety and on-site operational convenience;
● Safety control devices protect the vehicle from collision during lifting of the lower platforms, and prevent the upper platforms separating from the lower platforms when carrying the upper platforms down;
● 220V/60HZ Single Phase power unit, ETL Certified;
● Proprietary drive-in ramps function as both tire stop and drive-on ramp, with quick assembly and disassembly.

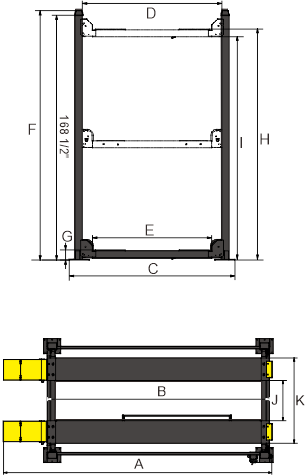

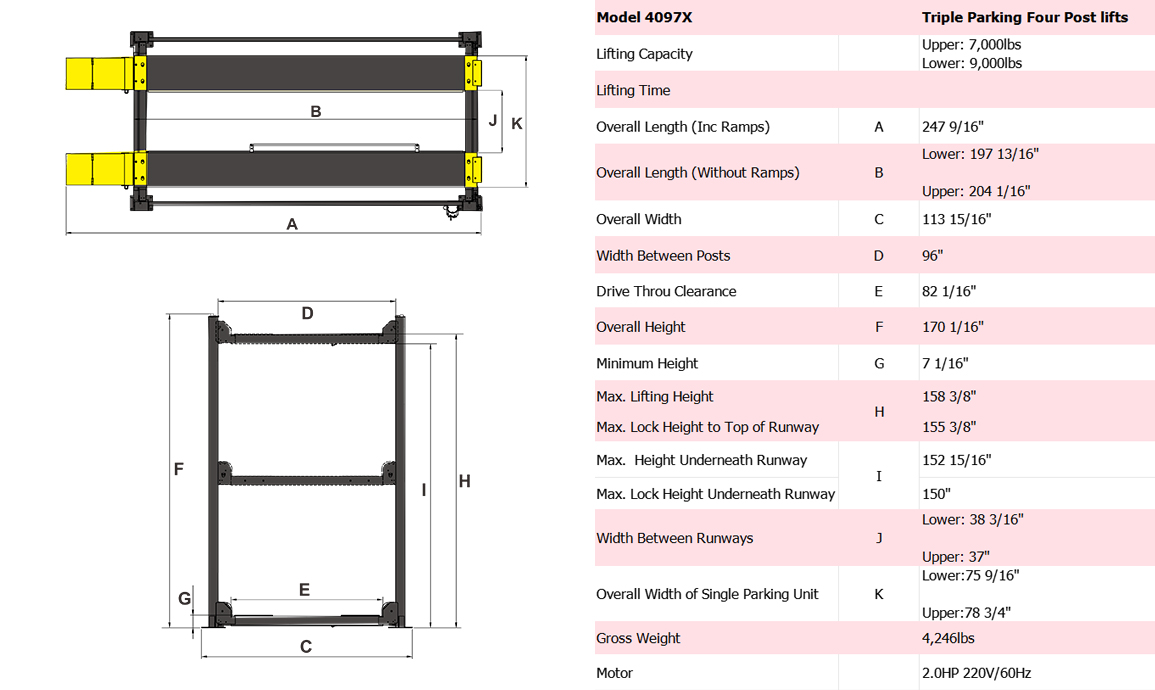

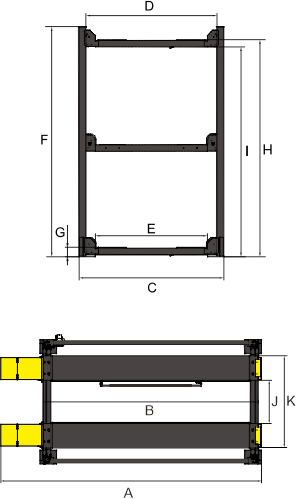

Specifications
| Model | 4097X | |
|---|---|---|
| Lifting Capacity | Upper:7,000lbs Lower:9,000 Ibs |
|
| Lifting Time | 104s | |
| Overall Length (Inc Ramps) | A | 247 9/16" |
| Outside Edge of Crossbeams | B | Upper:197 13/16" Lower: 204 1/16" |
| Overall Width | C | 106 1/16" |
| Width Between Posts | D | 96" |
| Drive Throu Clearance | E | 82 1/16" |
| Overall Height | F | 168 1/2" |
| Minimum Height | G | 7 1/16" |
| Max. Lifting Height | H | 158 3/8" |
| Max. Lock Height to Top of Runway | 155 3/8" | |
| Max. Height Underneath Runway | I | 152 15/16" |
| Max. Lock Height Underneath Runway | 150" | |
| Width Between Runways | J | Upper: 37" Lower: 38 3/16" |
| Overall Width of Single Parking Unit | K | Upper: 78 3/4" Lower: 75 9/16" |
| Gross Weight | 4,246 lbs | |
| Motor | 2.0HP |

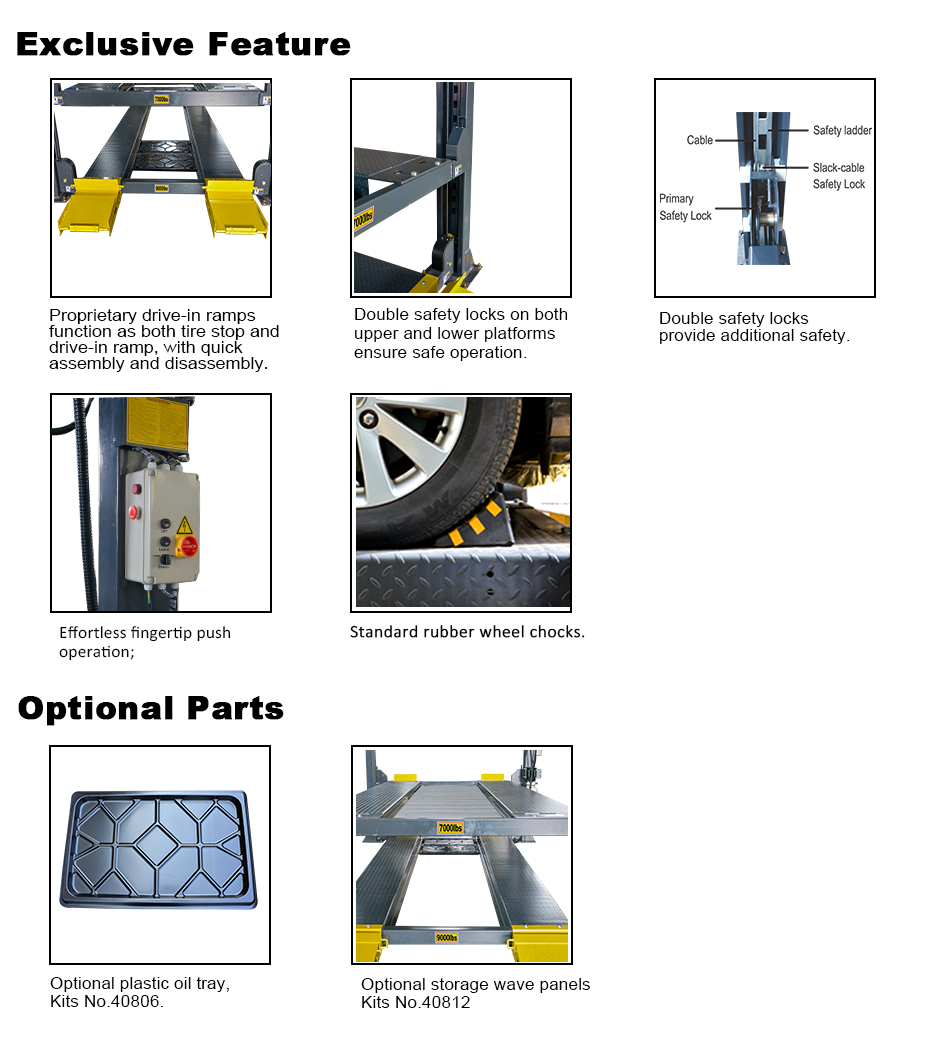

Detailed Image

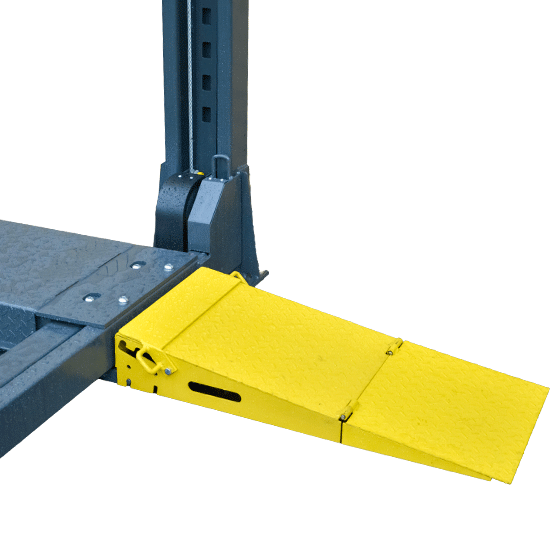

Proprietary drive-in ramps function as both tire stop and drive-in ramp, with quick assembly and disassembly.

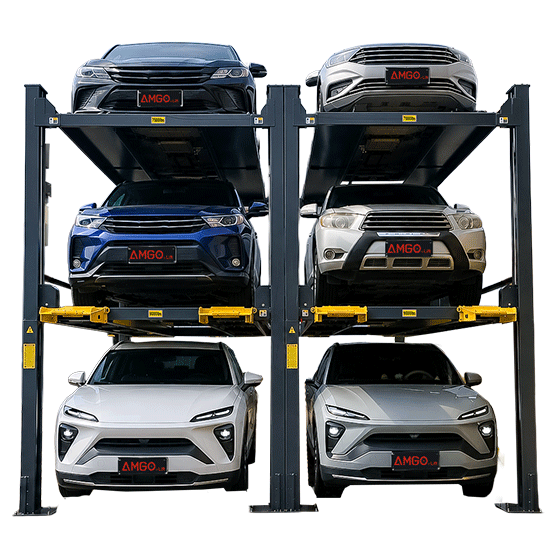

Special structure design to allow back-to-back installation;

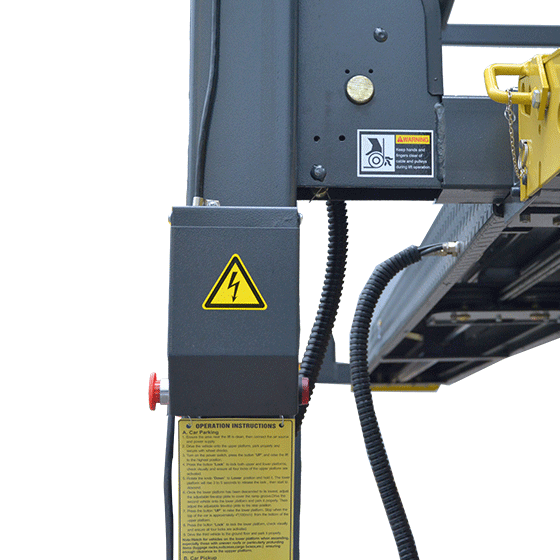

Fully operational control box is placed at the entry side；
Standard rubber wheel chocks.
Optional plastic oil tray, Kits No.: 40806.
Optional storage wave panels Kits No.: 40812
Shipping Information
Single unit packing dimensions (LxWxH): 210 5/8" x 22 1/4"x 40". Packed with Power Unit.
Packaging dimensions (3 units) (LxWxH) : 210 5/8" x 22 1/4"x 79 7/8"
