Features
• 12,000 lbs capacity, extra-wide design with more than 118″ between columns;
• ETL certified AMGO power unit comes standard;
• Mechanical self-locking safety device with air-driven lock release;
• Standard primary safety locks and cable-slack protection system;
• Cable-driven system with areo standard high quality cables;
• Hydraulic cylinder is designed and manufactured to a high standard, utilizing high-quality oil seals and compensation valve;
• Non-skid diamond platforms;
• Stepless adjustable width between platforms;
• Integrated slip plates and adjustable turnplate pockets.
Specifications
| Model | Pro-12ASX | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 45s | |
| Overall Length (Inc Ramps) | A | 232 5/8" |
| Runway Length | B | 182 11/16" |
| Overall Width | C | 132 1/8" |
| Width Between Columns | D | 118 1/8" |
| Max. Lifting Height | E | 76 3/8" |
| Max. Lock Height to top of runway | 73 1/4" | |
| Overall Height | F | 86" |
| Minimum Height | G | 8 11/16" |
| Max. Underneath Height | H | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" | |
| Drive-Thru Clearance | I | 104 3/16" |
| Width Between Runways | J | 43 5/16" Min. 35 7/16" Max. 53 3/4" |
| Outside Edge of Runways | K | 83 5/16" Min. 75 7/16" Max. 93 3/4" |
| Min. Four Wheel Align | L | 81 3/4" |
| Max. Four Wheel Align | M | 159 7/16" |
| Max. Two Wheel Align | N | 160 3/4" |
| Gross Weight | 2,773 lbs | |
| Motor | 2.0HP |

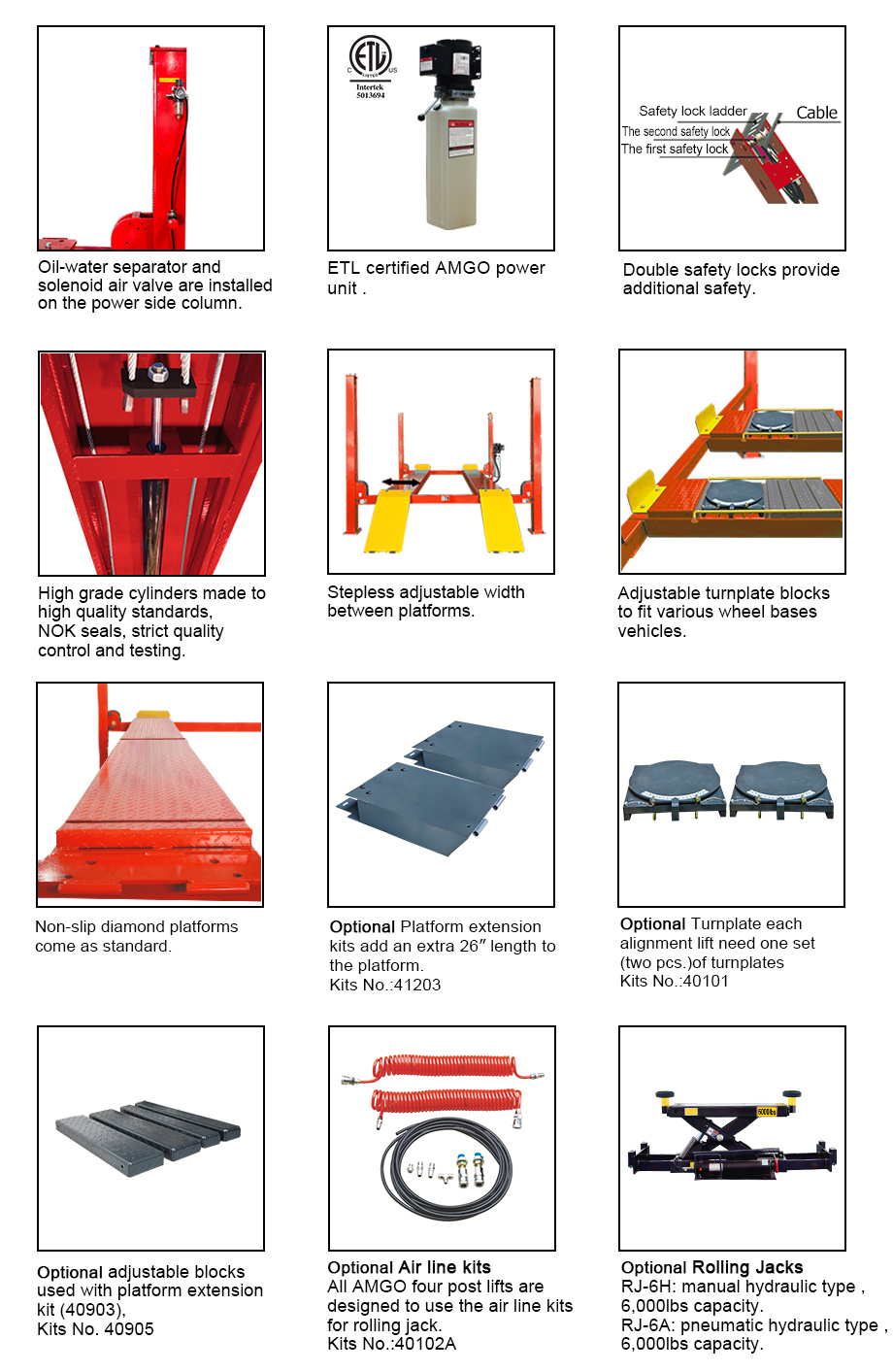

Detailed Image
Oil-water separator and solenoid air valve are installed on the power side column.
ETL certified AMGO power unit.
Standard primary safety locks and cable-slack protection system.
Hydraulic cylinder is designed and manufactured to a high standard, utilizing high-quality oil seals and compensation valve.
Stepless adjustable width between platforms.
Adjustable turnplate blocks accommodate various wheelbases.
Extra width between columns: 118 1/8".
Optional extension platform adds 26" in lenght to the platform. Kits No.:40903
Optional turnplate; 2 units needed for each alignment lift. Part no: 40101
Optional adjustable blocks used with platform extension kit (40903), Kits No.40905
Optional Air line kits. All AMGO four post lifts are designed to use the air line kits for rolling jack. Kits No.:40102A
Optional rolling jacks with 6,000lbs capacity: RJ-6A - pneumatic or RJ-6H: manual.
Shipping Information
1 units/package, packing measurement (LxWxH) : 199 5/8"x22 1/16"x28 1/2", Packed with power unit.
3 units/package, packing measurement (LxWxH) : 199 5/8"x22 1/1x84 7/16"
