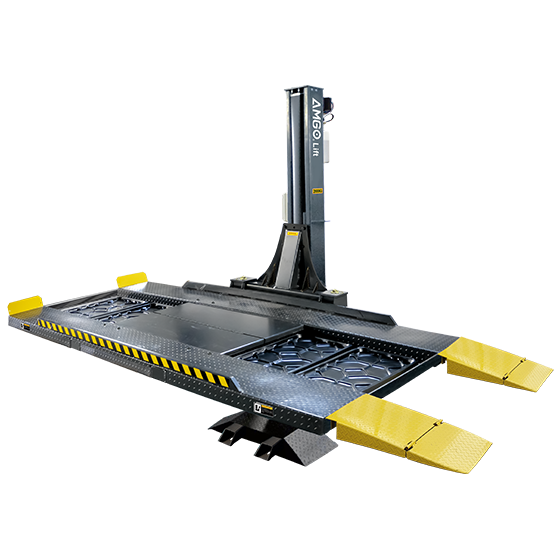

SPL-6 Single-post Parking Lift

The SPL-6 is our newest single post parking lift. This lift combines AMGO high quality with space saving design and easy operation. The SPL-6 is great fit for home garages and commercial shops.

Contact Us Now

Click to download Product Brochure

Description

Features

• 6,000lbs lifting capacity
• Manual safety lock release
• Non slip lifting platform
• H-shaped lifting platform with reinforced column
• Low post height for low ceilings
• Suitable for home garages and commercial applications
• Reversible Drive in ramps (drive in from either side)
• ETL certified power unit
Model SPL-6
Lifting Capacity 6,000lbs
Lifting Time 84s(110V)   32s(220V)

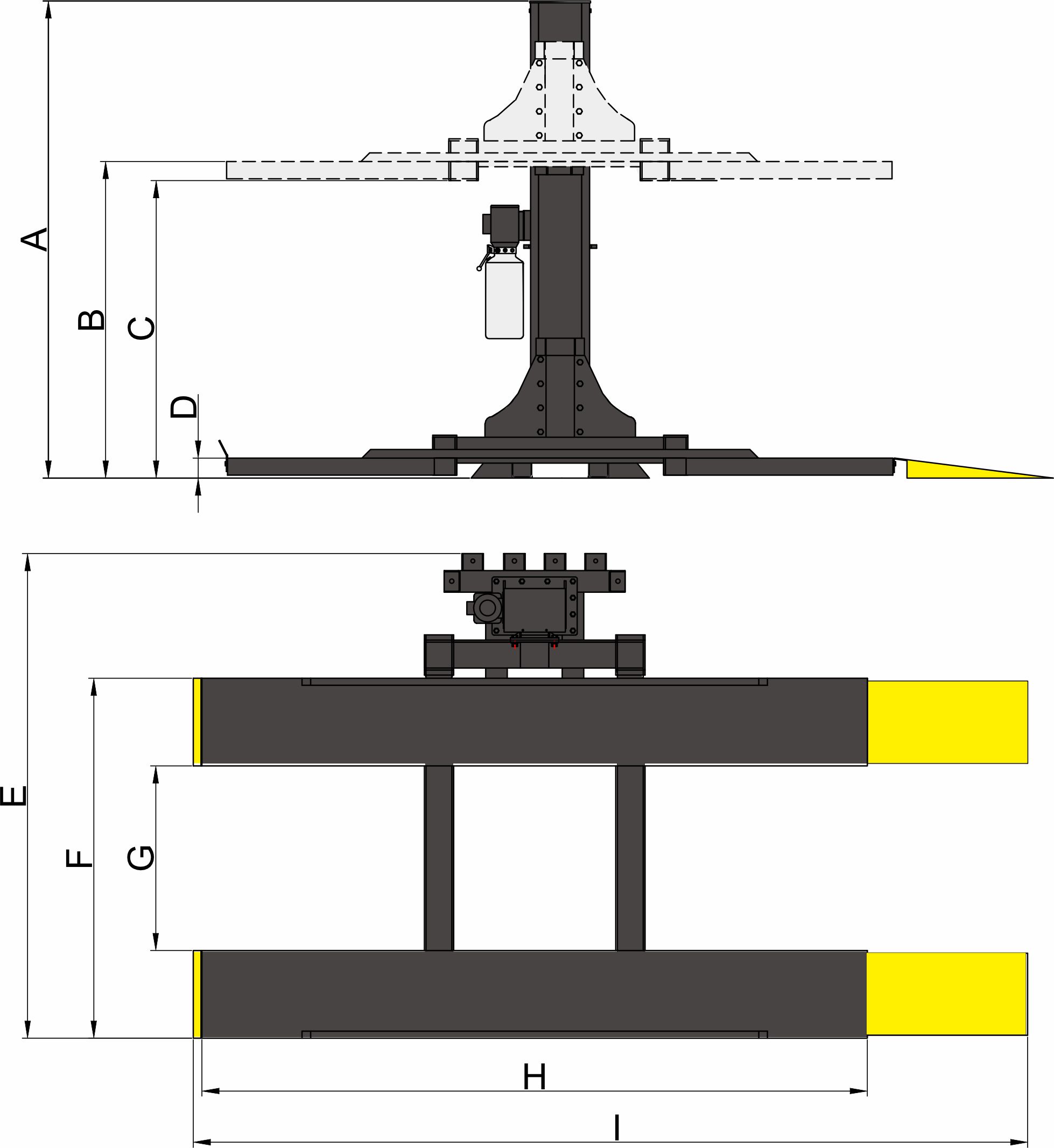

A:Overall Height 108 7/8″ (2766mm)
B:Max. Lifting Height 74″ (1880mm)
C:Max. Underneath Height 69 1/4″ (1760mm)
D:  Minimum Height 6 3/8″ (160mm)
E:Overall Width 111″ (2820mm)
F:Outside Edge of Runways 82 3/8″ (2093mm)
G:Width Between Runways 42 3/8″ (1077mm)
H:Platform Length 152″ (3860mm)
I:Overall Length 192 1/8″ (4880mm)
Gross Weight 2,725lbs (1235kg)
Motor 1.0HP/110V  2.0HP/220V



Optional parts

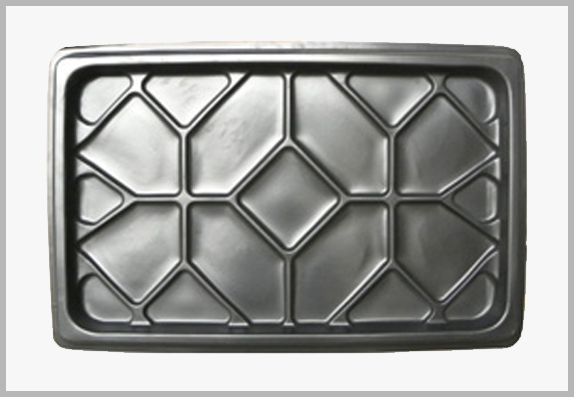

Optional Drip Trays one set 4pcs. Kit No: 40807. Specifications 42″×23 5/8″

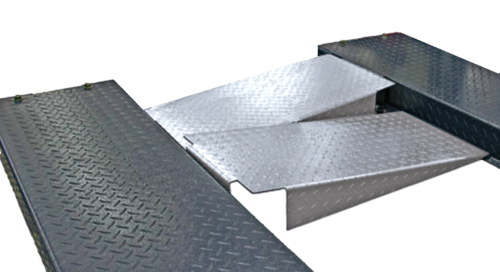

Optional Aluminum alloy drive in ramps. Weight for the set is 40 lbs (18 kg). Kit No: 40803
