Features
• 12,000 lbs capacity;
• ETL certified AMGO power unit comes standard;
• Mechanical self-locking safety device with air-driven lock release;
• Standard primary safety locks and cable-slack protection system;
• Cable-driven system with areo standard high quality cables;
• Hydraulic cylinder is designed and manufactured to a high standard, utilizing high-quality oil seals and compensation valve;
• Non-skid diamond platforms;
• Stepless adjustable width between platforms.
Specifications
| Model | Pro-12 | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 63s | |
| Overall Length (Inc Ramps) | A | 239 13/16" |
| Outside Edge of Crossbeams | B | 197 3/4" |
| Overall Width | C | 126 5/16" |
| Width Between Columns | D | 112 1/4" |
| Max. Lifting Height | E | 74 7/16" |
| Max. Lock Height to top of runway | 71 1/4" | |
| Overall Height | F | 86" |
| Minimum Height | G | 6 11/16" |
| Max. Underneath Height | H | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" | |
| Drive-Thru Clearance | I | 98 3/8" |
| Width Between Runways | J | 43 5/16" Min. 38" Max. 50 7/8" |
| Outside Edge of Runways | K | 83 5/16" Min. 78" Max. 90 7/8" |
| Gross Weight | 2,361 lbs | |
| Motor | 2.0HP |

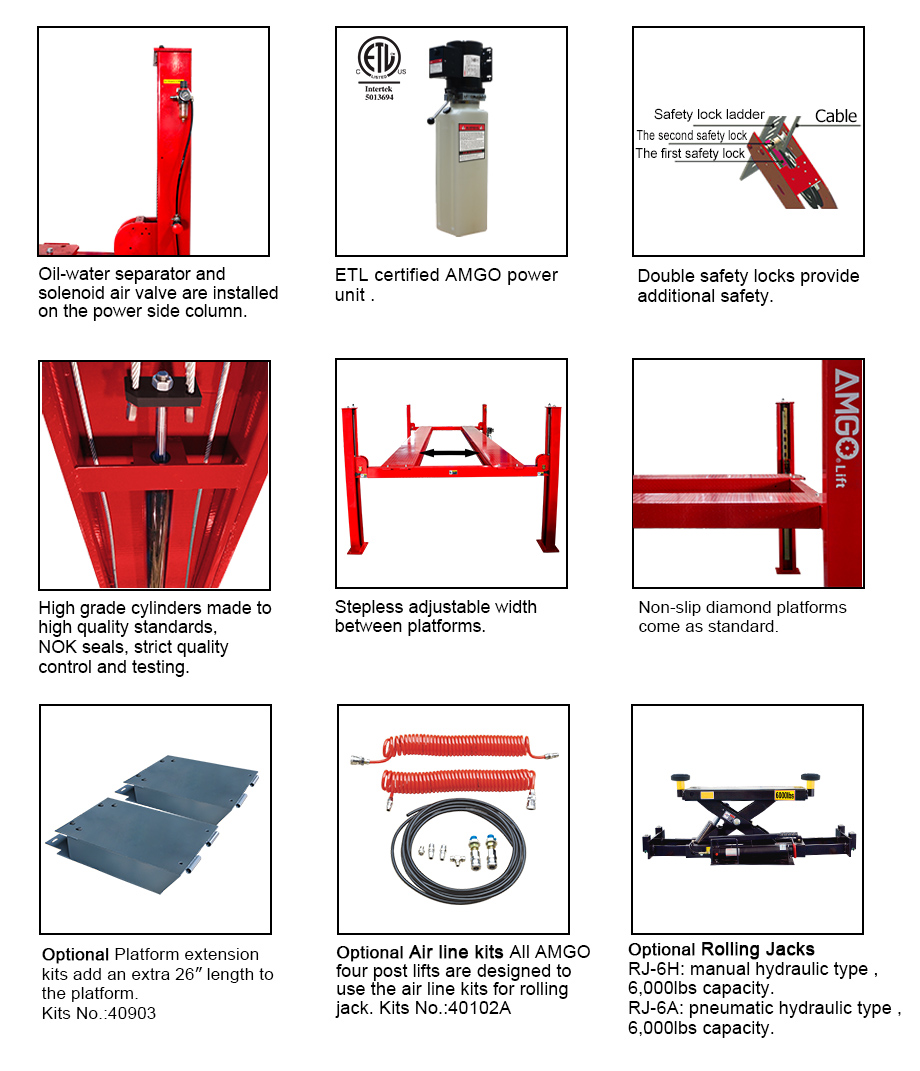

Detailed Image
Oil-water separator and solenoid air valve are installed on the power side column.
ETL certified AMGO power unit.
Standard primary safety locks and cable-slack protection system.
Hydraulic cylinder is designed and manufactured to a high standard, utilizing high-quality oil seals and compensation valve.
Stepless adjustable width between platforms.
Non-slip diamond platforms come as standard.
Optional extension platform adds 26" in lenght to the platform. Kits No.:41203
Optional air line kits - All AMGO 4 post lifts are designed to use the air lines for the rolling jack. Part no: 40102A
Optional rolling jacks with 6,000lbs capacity: RJ-6A - pneumatic or RJ-6H: manual
Shipping Information
1 units/package, packing measurement (LxWxH) : 203 9/16"x 22 1/16"x28 1/2". Packed with Power Unit.
3 units/package, packing measurement (LxWxH) : 203 9/16"x 22 1/16"x 84 1/16""
