Features
● Lifting capacity: 8,000lbs;
● AMGO ETL certified power unit comes standard;
● High quality dual hydraulic direct-drive cylinders;
● AMGO’s patented design: concealed safety lock control device with a manual single-point lock release;
● Aero standard cables come as standard;
● Double-
shaped columns are used to increase strength;
● Non-slip platforms come with foldable drive-in ramps;
● Support back-to-back installation to save space;
● The power side column can be installed at any corner;
● Increased lifting height is ideal for parking taller vehicles;
● Pull rope comes standard.
Specifications
| Model | 408-HP | |
|---|---|---|
| Lifting Capacity | 8,000 Ibs | |
| Lifting Time | 114s | |
| Overall Length (Inc Ramps) | A | 208 1/16" |
| Outside Edge of Crossbeams | B | 167 5/8" |
| Overall Width | C | 102 1/2" |
| Width Between Posts | D | 92 13/16" |
| Max. Lifting Height | E | 87 11/16" |
| Max. Locking Height | 84 15/16" | |
| Overall Height | F | 96 5/8" |
| Minimum Height | G | 5 11/16" |
| Max. Underneath Height | H | 82 15/16" |
| Max. Lock Underneath Runway | 80 3/16" | |
| Drive-Thru Clearance | I | 81 5/8" |
| Width Between Runways | J | 37" |
| Outside Edge of Runways | K | 74 7/16" |
| Gross Weight | 1,669 lbs | |
| Motor | 1.0HP,110V/60Hz |
Detailed Image
AMGO’s patented design: concealed safety lock control with a manual single-point release
Foldable drive-on ramps. (each lift 2 units). P/N:1104533025C-01
Double safety locks provide additional safety.
90° motor installing plate. P/N: 40802
Optional Caster kits help easily maneuver the parking lift. One set 4pcs. Kits No: 40801
Optional plastic oil tray (1 set, 4pcs) Kits No.: 40806.
Optional extended aluminum drive-in ramp. P/N: 40815, each lift needs 2 units.

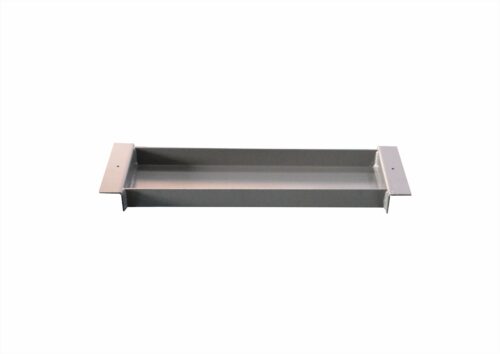

Optional Adj. Jack Tray, P/N: 40816
Optional Motor Protective cover (with emergency stop switch). Kits No.: 40810
Optional rubber wheel chock P/N: 40811
Optional storage wave panels Kits No.: 40812.
Optional J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 5,000lbs.
Shipping Information
Single unit packing dimensions (LxWxH): 167 3/4" x 20 1/2"x 29 5/16". Packed with Power Unit.
Packaging dimensions (3 units), packing measurement (LxWxH) : 167 3/4" x 20 1/2" x 87 3/8"
