Description
Features
- 7,000lbs lifting capacity
- AMGO exclusive hidden safety locks and manual single-point lock release
- Multi safety locks in each column
- Adjustable lock ladder
- Automatic safety locks combined with redundant anti-fall devices
- Double-S shaped columns for increased strength
- Non-slip platform
- Flexible Design: power side column can be installed at any corner
- AMGO 5-3-2 Warranty

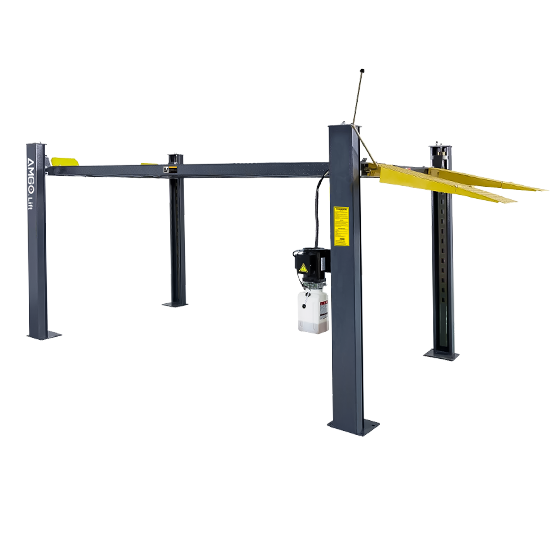

| Model | 407-P |
| Lifting Capacity | 7,000lbs |
| Lifting Time | 68s(110V) 26s(220V) |
| A: Overall Length (Inc Ramps) | 185 1/2″ (4712mm) |
| B: Overall Length (No Inc. ramps) | 152″ (3862mm) |
| C: Overall Width | 94 7/8″ (2409mm) |
| D: Width Between Posts | 85 3/8″ (2167mm) |
| E: Max. Lifting Height | 73 3/4″ (1872mm) |
| F: Overall Height | 82 7/8″ (2105mm) |
| G: Minimum Height | 5 3/8″(135mm) |
| H: Max. Underneath Height | 69 3/4″ (1772mm) |
| I: Drive-Thru Clearance | 77″ (1956mm) |
| J: Width Between Runways | 37″ (940mm) |
| K: Outside Edge of Runways | 74 3/8″ (1890mm) |
| Gross Weight | 1,543lbs(700kg) |
| Motor | 1.0HP 110V/60Hz; 2.0HP 220V/60Hz |
Exclusive Feature
-
- Hidden locking device and manual single-point safety lock release.
-
- Commercial double safety locks provide additional safety.
-
- Exclusive Feature, double-S shape column
Optional Parts
-
- 90° installation plate for installing the power unit at the side of a column. Optional Kit No: 40802
-
- Optional Aluminum alloy drive in ramps. Weight for the set is 40 lbs (18 kg). Kit No: 40803
-
- Optional Caster Kits help easily maneuver the parking lift. One set 4pcs. Kit No: 40801
-
- Optional J5H sliding jack with hand pump. 1.5″ and 2.5″ extension adapters included. Capacity 5,000lbs.
-

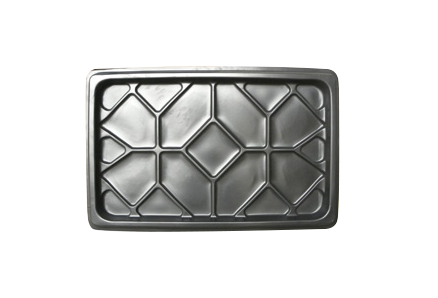

- Optional Drip Trays one set 4pcs. Kit No: 40806. Specifications 36 5/8″ ×23 5/8″
-

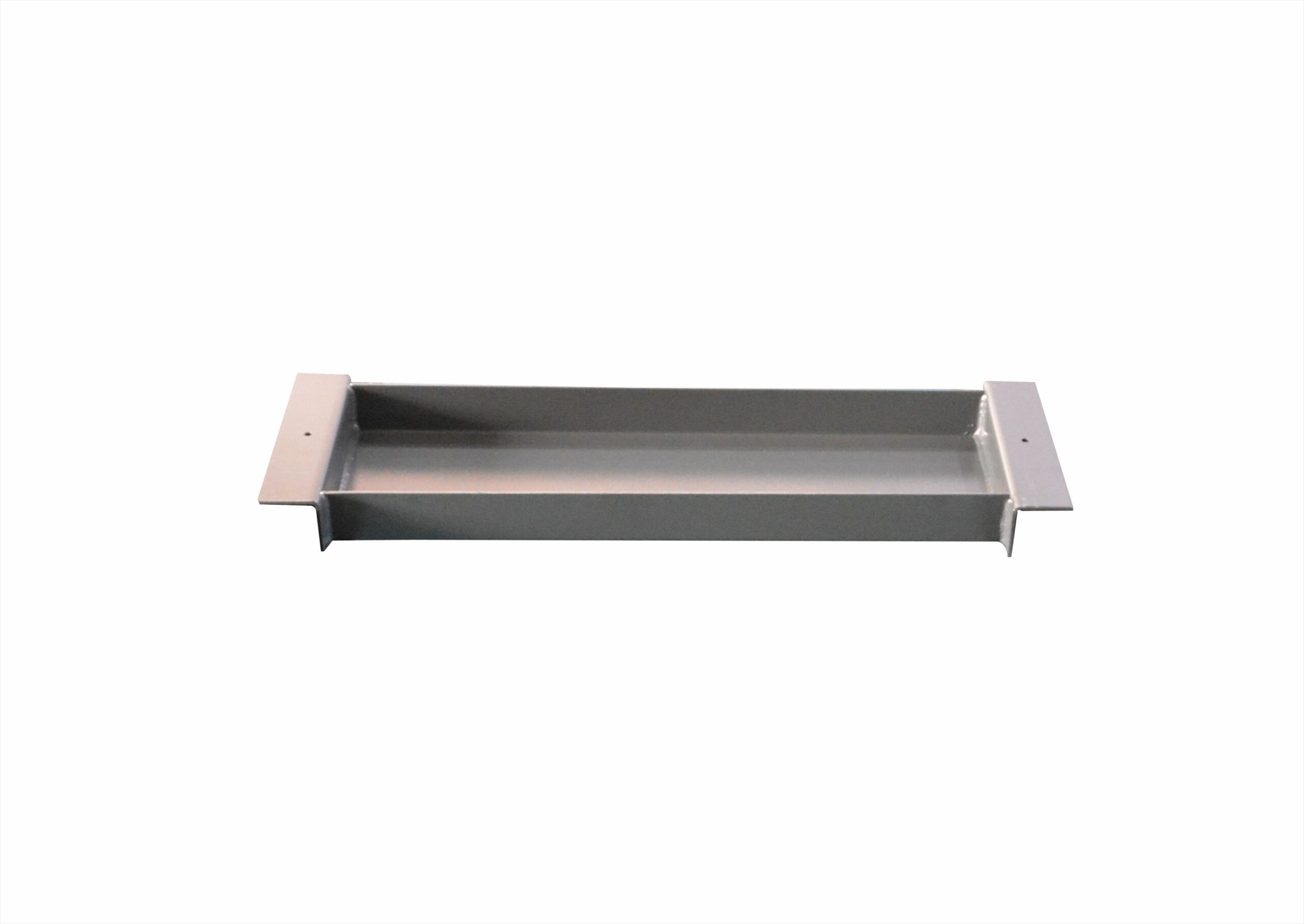

- Optional Jack Tray Kit No.:40808
Shipping Information
20′ container can load 12 units.
40′ HQ container can load 36 units.
