BP-9X

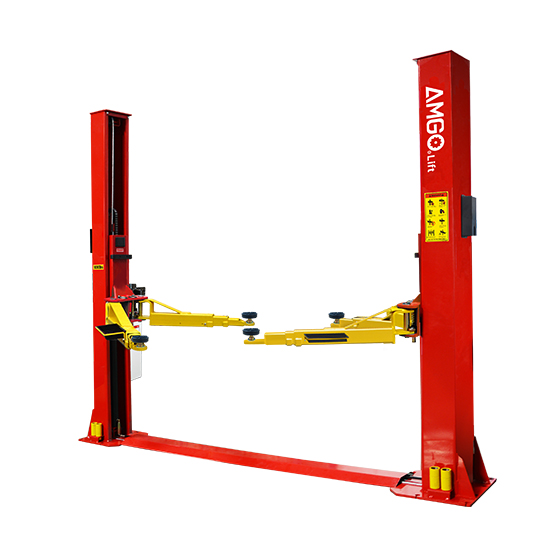

The BP-9X is a base-plate two-post lift designed for low ceiling garages. The total column height of 111 7/8″ allows this lift to be installed in almost any professional or home garage with a ceiling higher than 9.5 feet. The BP-9X features symmetric arms, and automatic arm restraints. The BP-9X also has a single point release switch to make it easier to unlock both column locks from one column.

Contact Us Now

Click to download Product Brochure

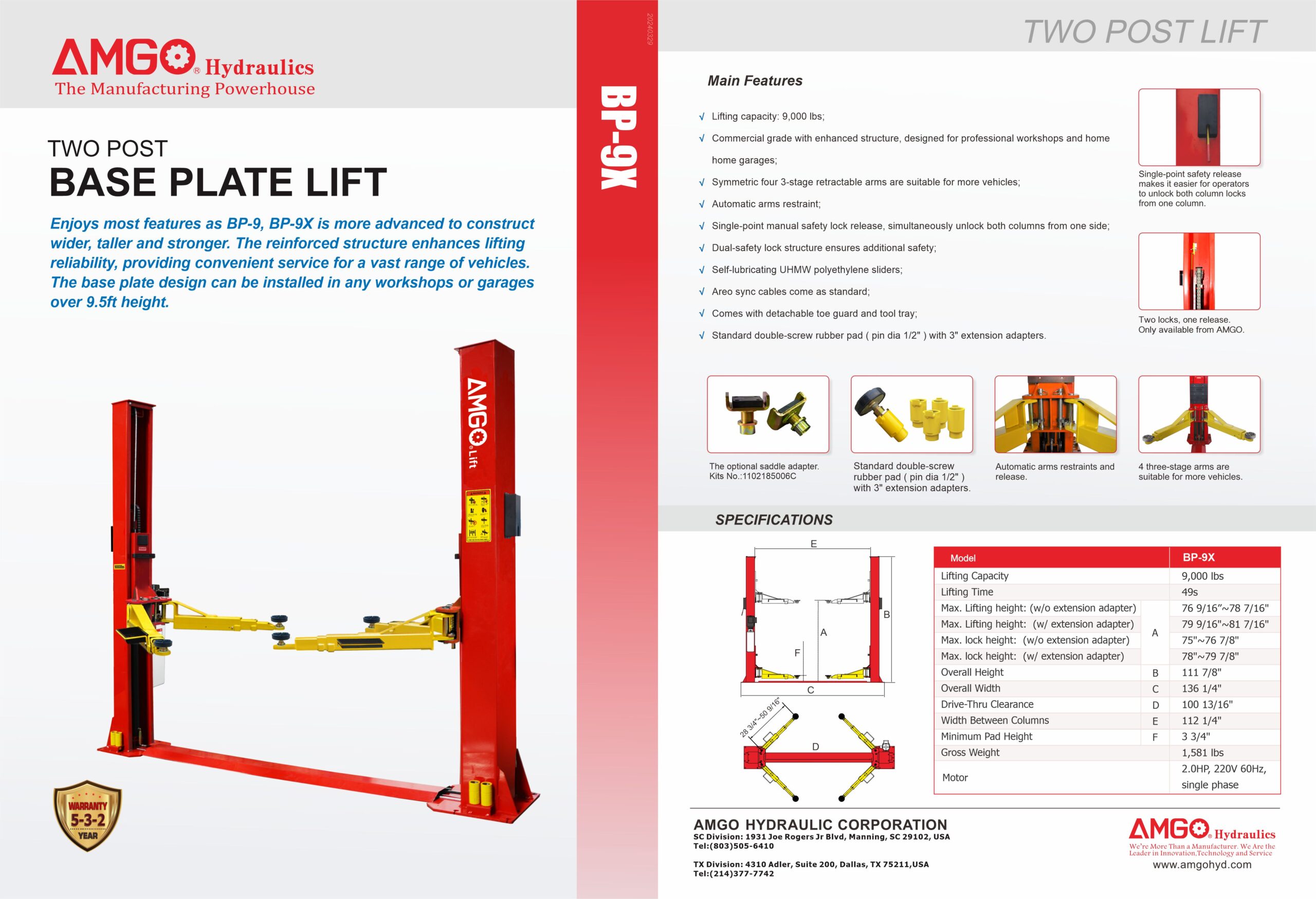

Click to download Product Manual



Description

Features

• 9,000 lbs capacity, commercial grade 2-post base plate lift is designed and built for any professional shops and home garages to fit low ceiling workshop environment without overhead obstructions

• Single-point safety release allows the operator to unlock the safety locks from both Columns simultaneous. There is also a dual locking system for additional safety

• 4 three-stage arms are suitable for more vehicles

• Automatic arm restraints keep the arms locked in their proper positions

• Self-lubricating UHMW Polyethylene sliders and bronze bushings

• Aircraft quality cable is used for synchronization

• Detachable foot guard and tool tray allow for a clutter free work space

• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components

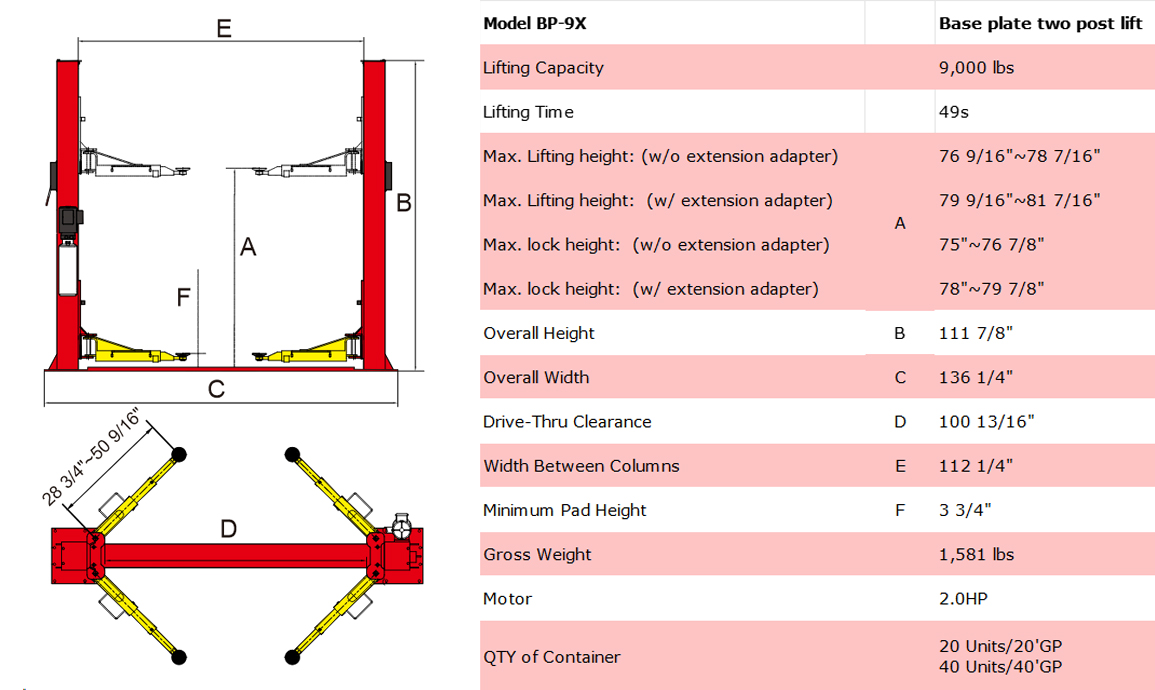

Model BP-9X
Lifting Capacity 9,000lbs (4,082kg)
Lifting Time 49s

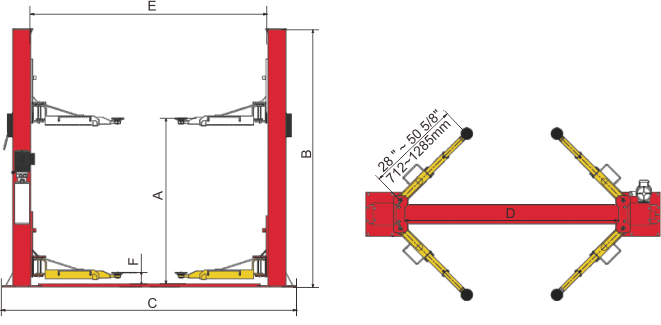

A: Lifting height 76 3/8″ ~ 85 3/8″ (1940~2169mm)
B: Overall Height 111 7/8″ (2841mm)
C: Overall Width 136 1/4″ (3460mm)
D: Drive-Thru Clearance 100 3/4″ (2560mm)
E: Width Between Columns 112 1/4″ (2850mm)
F: Minimum Pad Height 3 1/2″ (90mm)
Motor 2.0HP/220V/60Hz, Single Phase
Gross Weight 1,590lbs (721kg)

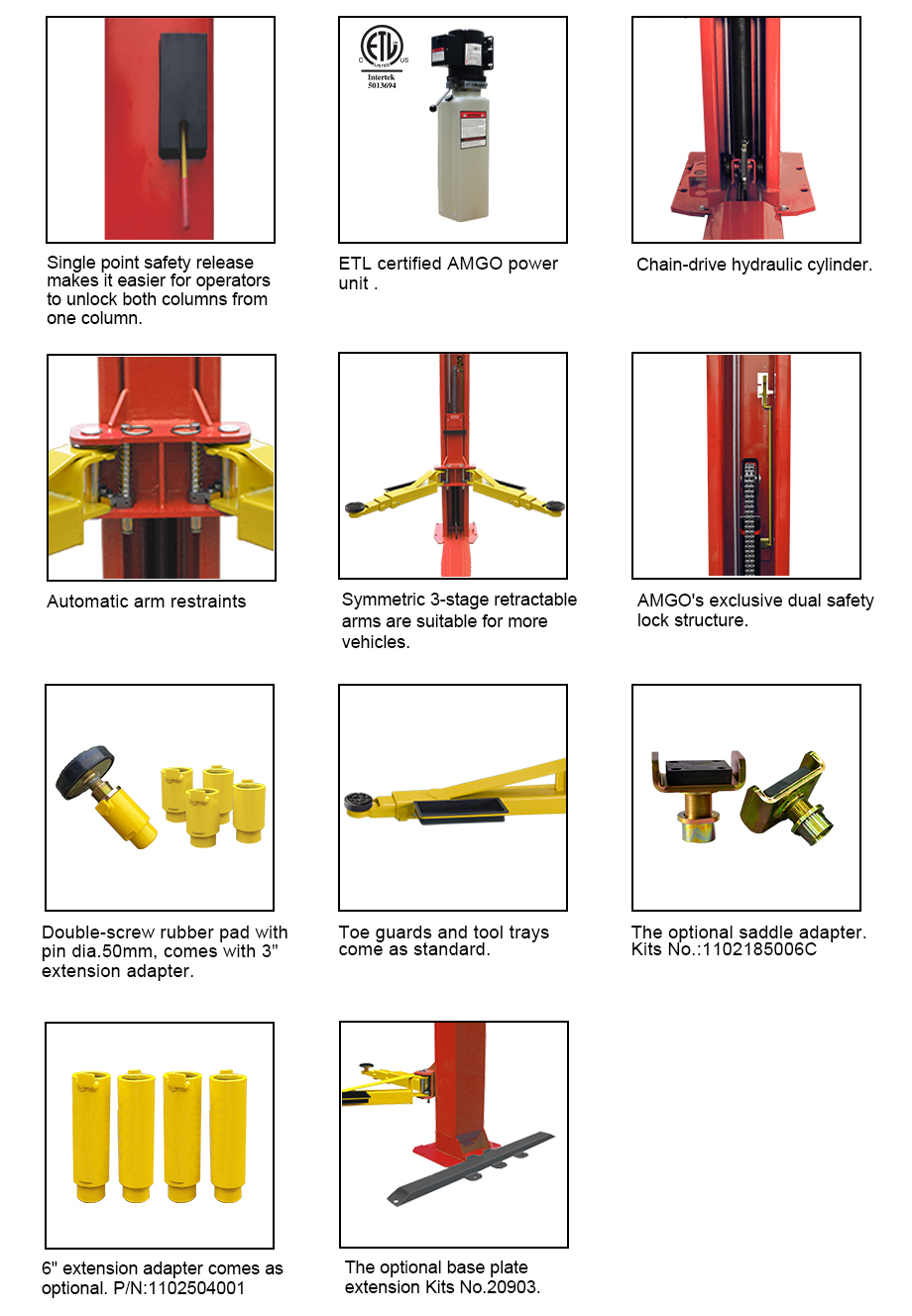

Detailed Images

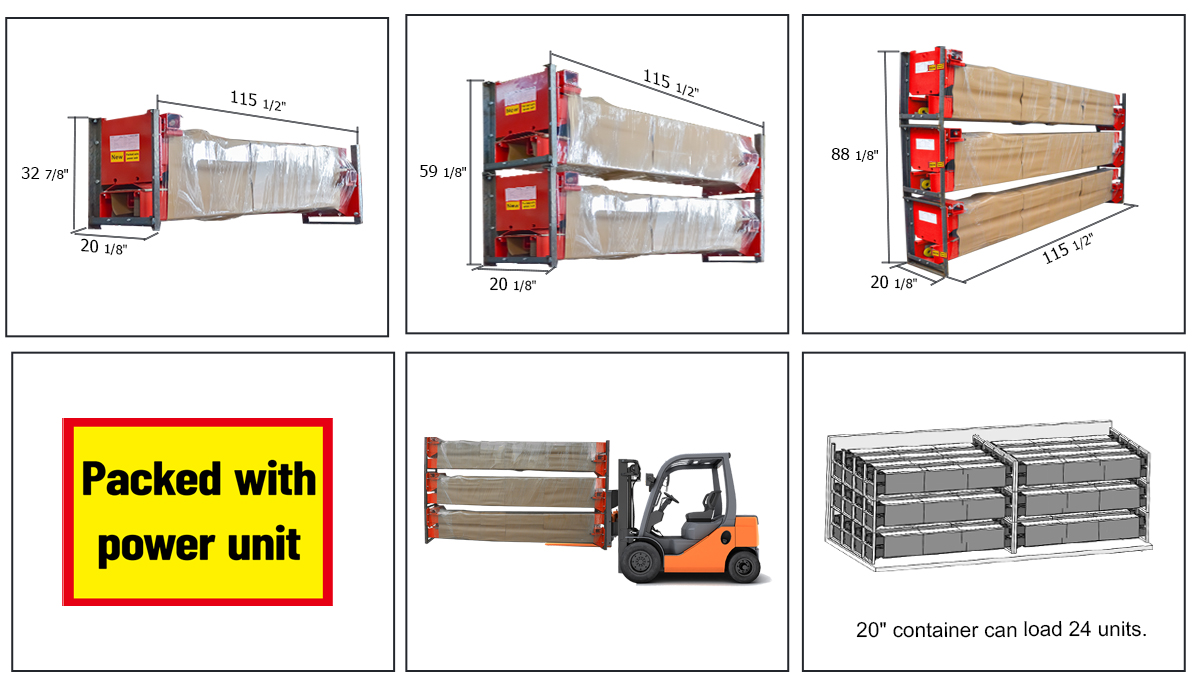

Shipping Information
