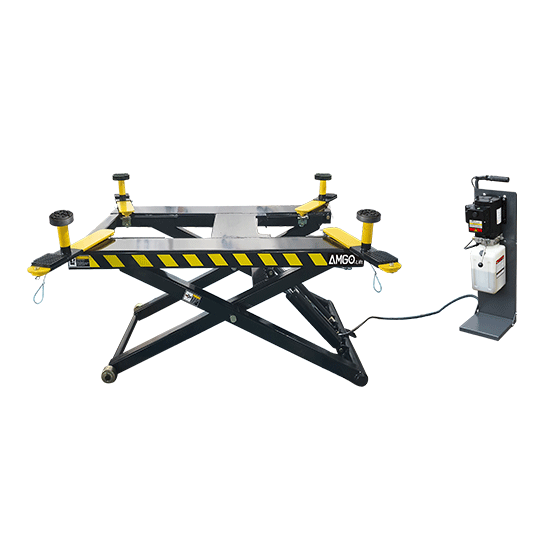

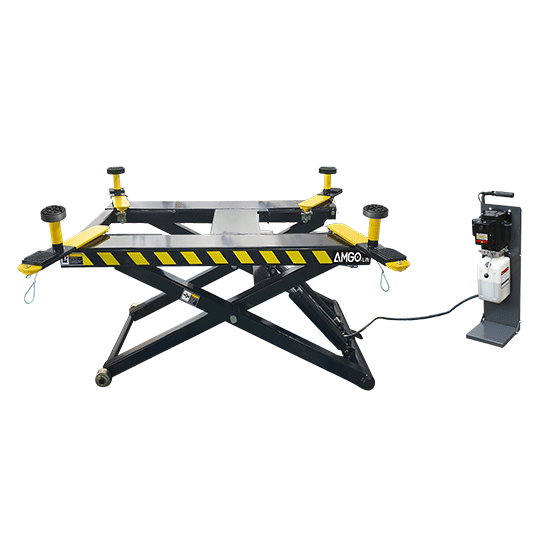

Features
- Adjustable sliding radius arms with an automatic mechanical lock;
- Multi-position safety locks for secure lifting at any height;
- Portable power unit stand & telescoping dolly come standard for easy mobililty;
- Dual hydraulic cylinders and the solid platform structure provides maximum strength and stability;
- Standard extension adapters and durable pads can be used on various vehicle chassis.
Specifications
| Model | MR06 | |
|---|---|---|
| Lifting Capacity | 6,000 Ibs | |
| Lifting Time | 56s | |

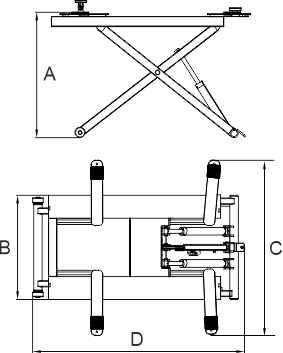

| Max. Lifting Height | A | 42 15/16" |
| Max. Lock Height | 41 3/4" | |
| Minimum Height | 4 15/16" | |
| Platform Width | B | 40 1/8" |
| Swing Width | C | 66 5/16" |
| Overall Length | D | 74 3/16" |
| Gross Weight | 950 lbs | |
| Motor | 110V/1.0HP |
Detailed Image

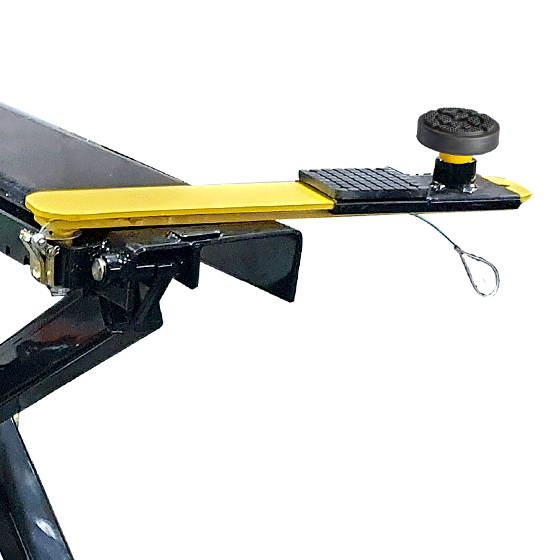

Quick-release arm locks with easy-pull cable.

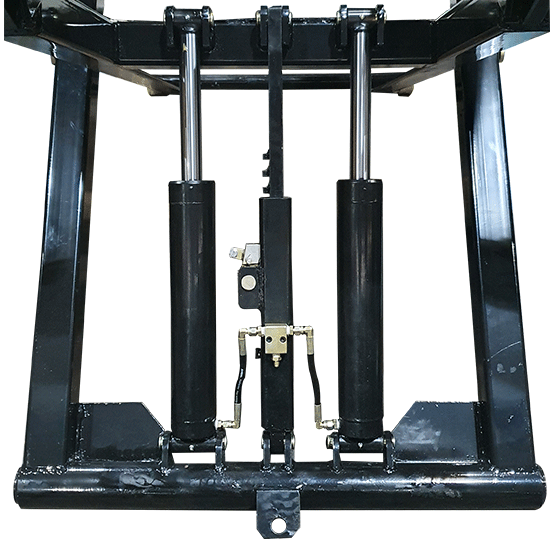

Auto-engaged safety locks with an integrated manual release.

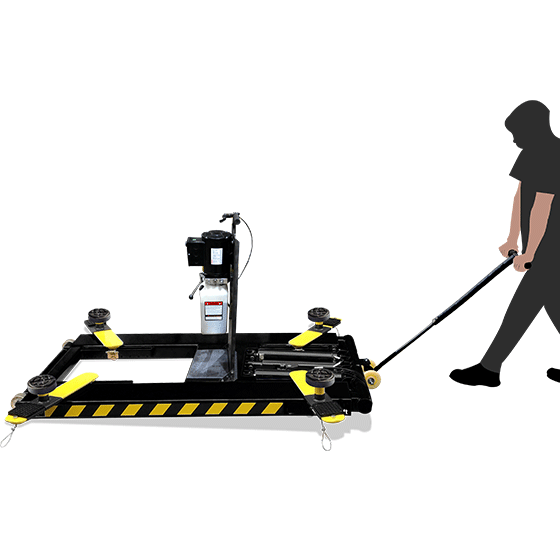

Portable, newly designed dolly for easy moving.

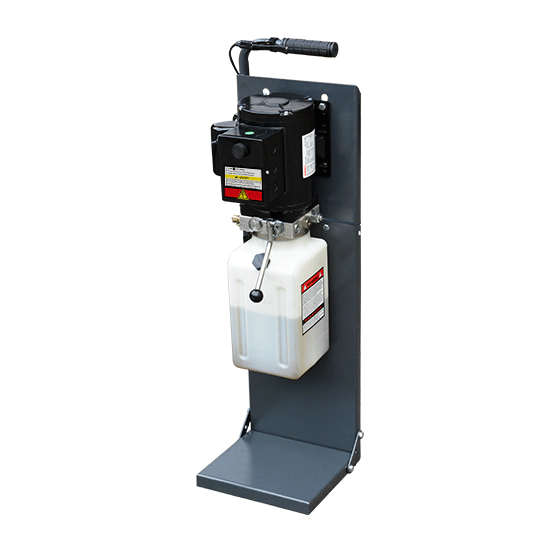

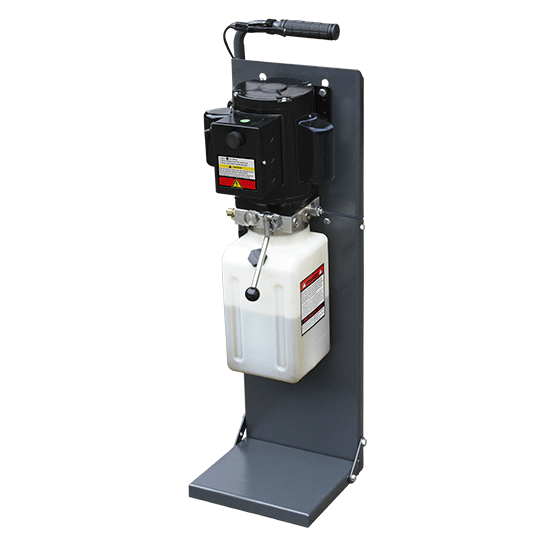

Detachable power unit stand with integrated manual safety release
Integrated swing-arm restraints prevent the arms from moving beyond the platform. Two kinds of adapters come standard.

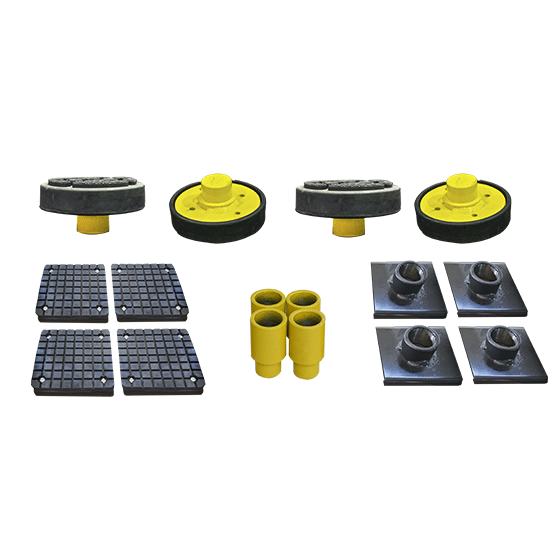

16-piece adapter kits comes standard.
Shipping Information

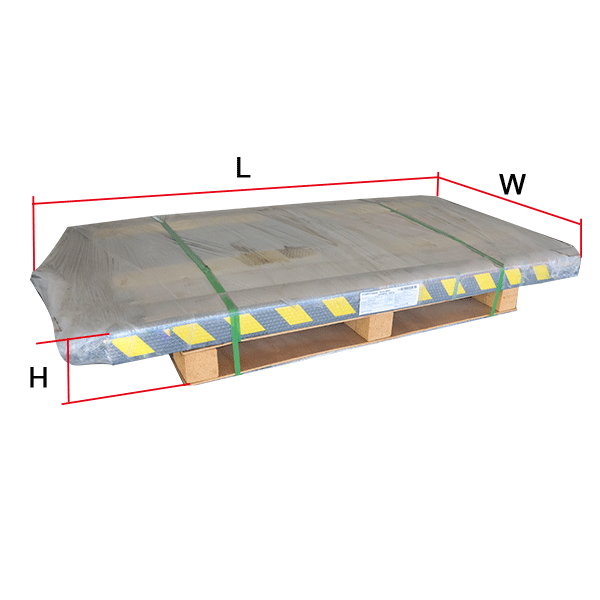

1 units/package, packing measurement (LxWxH) : 74 3/4”x40 1/8"x7 7/8"

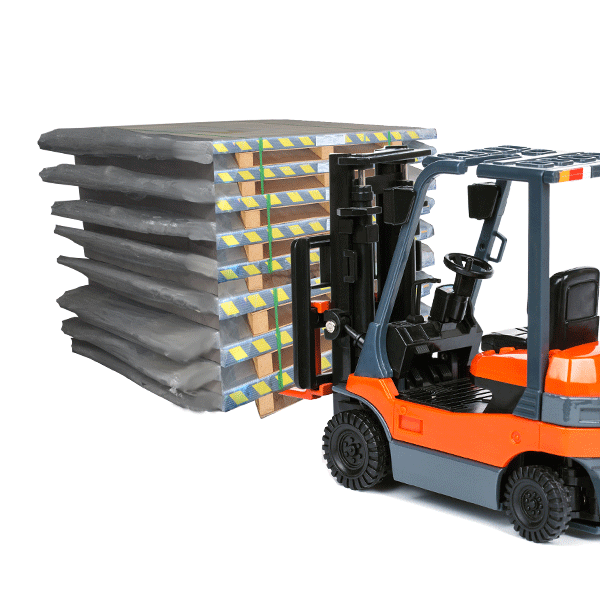

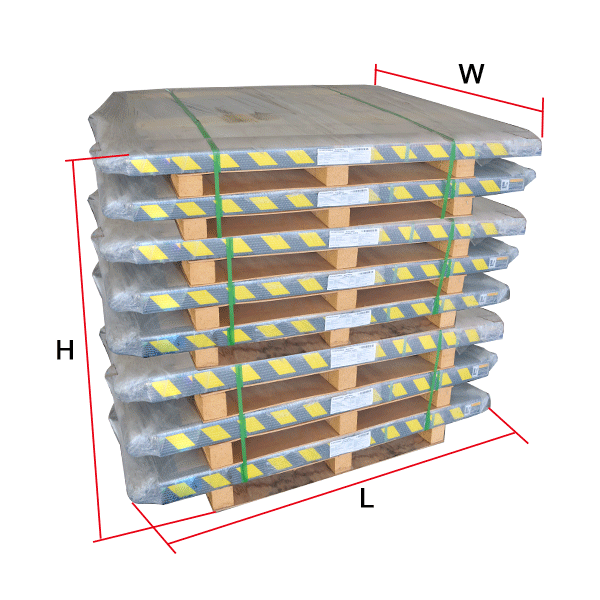

8 units/package, packing measurement (LxWxH) : 74 3/4”x40 1/8"x63"
1 units/package, packing measurement (LxWxH) : 27 3/4”x11 3/4"x12 5/8""
