Description
Features

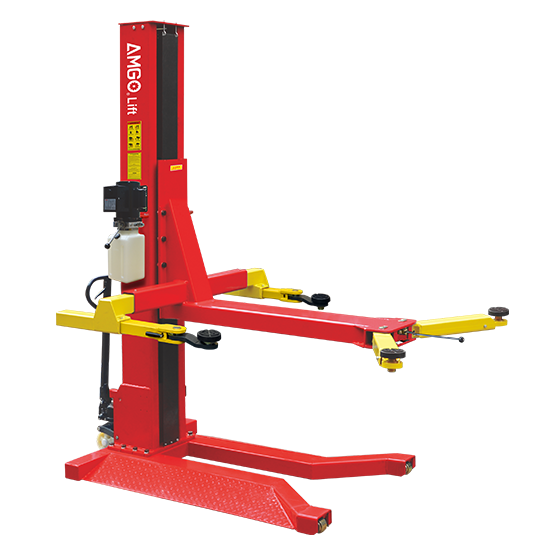

• 7,000lbs capacity, portable single post lift.
• Max. lifting height: 77 3/4″ (1976 mm)
• Min height: 4 3/8″ (110 mm)
• Self-lubricating UHMW Polyethylene sliders and a self-lubricating bronze bushings.
• High quality cylinders and power units are manufactured to high quality standards.
• AMGO 5-3-2 Warranty.
| Model | SML-7 |
| Lifting Capacity | 7,000 lbs |
| Lifting Time | 84S (110V) 32S (220V) |
| A: Lifting height | 72″~77 3/4″ (1830mm ~ 1976mm) |
| B: Overall Height | 108 7/8″ (2766mm) |
| C: Overall Width | 90 3/8″ (2295mm) |
| D: Minimum Pad Height | 4 3/8 “（110 mm） |
| Gross Weight | 1,916 lbs（869 kg） |
| Motor | 1.0HP，110V/60Hz Single Phase 2.0HP，220V/60Hz Single Phase |
Detailed Images
-
- A manually locking release safety device controls the double locks.
-
- Two locks, one release. Only available from AMGO.
-
- Arm locking device with easy release handles.
-
- Adjustable arms, two stage stretching.
-
- Features screw and insert rubber pads.
-
- Portable roller device to easily move the lift.
-
- “pallet jack” style device allows the lift to move freely to wherever the job may be.
-
- Dust cloth provides protection to the chain and gives the SML-7 an elegant appearance.
