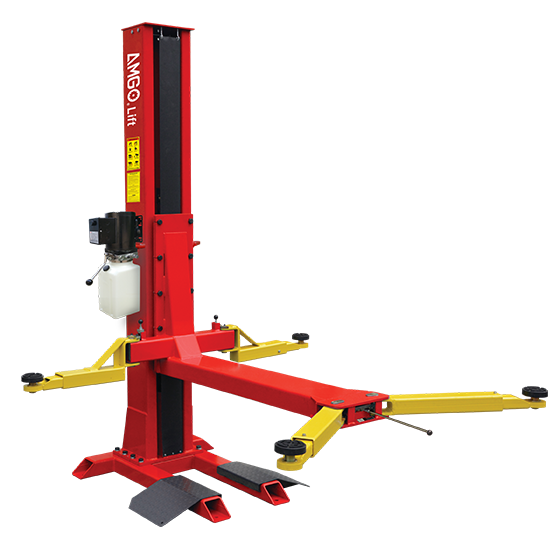

SL-7

AMGO’s newly designed single post lift is the perfect choice when you must quickly lift a vehicle in limited space.The SL-7 is one of the least space-consuming, permanently affixed lifts in the world and can be used in commercial service shops, home garages, or any area where space is at a premium and durability is a must.

Contact Us Now

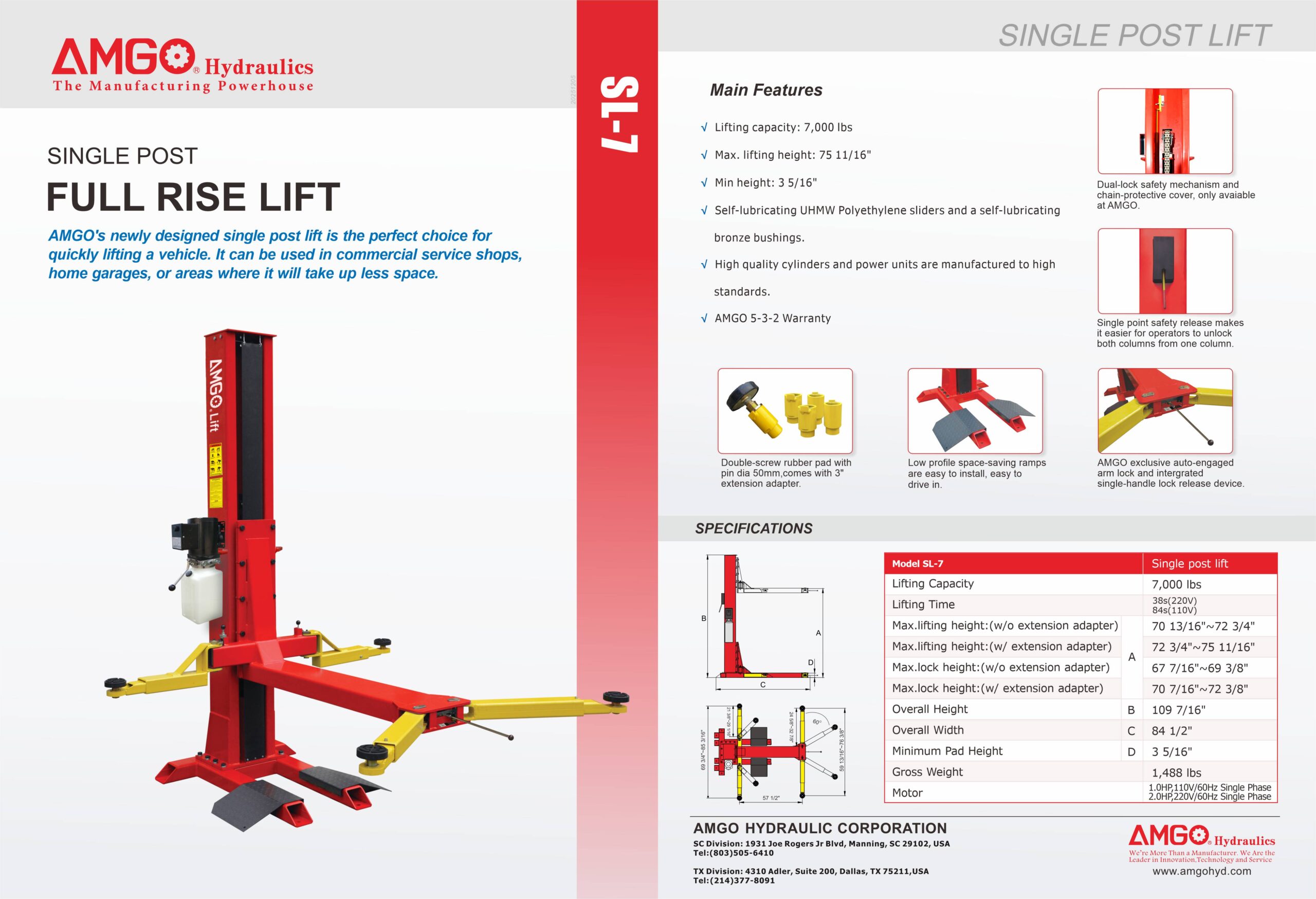

Click to download Product Brochure

Click to download Product Manual

Categories: ,

Description

FEATURES

•  Lifting capacity: 7,000 lbs.

•  Max. lifting height: 77 3/4″ (1976 mm).

•  Min height: 4 3/8″ (110 mm).

•  Self-lubricating UHMW Polyethylene sliders and a self-lubricating bronze Bushings.

•  High quality cylinders and power units are manufactured to high standards.

•  AMGO 5-3-2 Warranty.

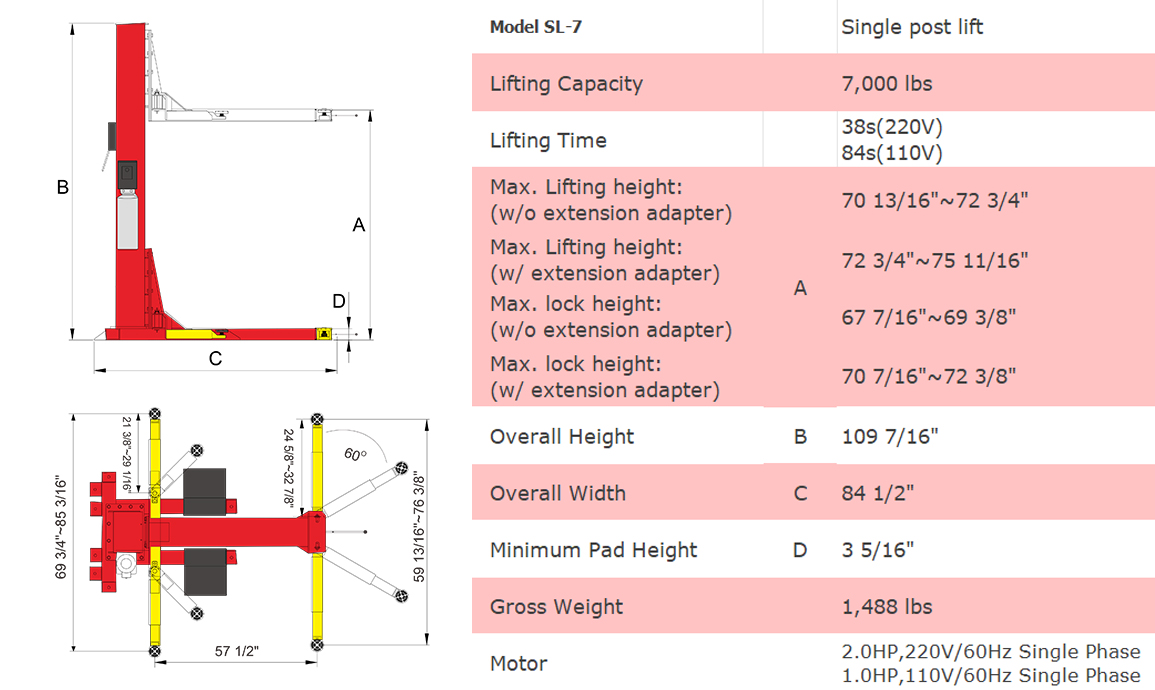

Model SL-7
Lifting Capacity 7,000lbs
Lifting Time 84S (110V)  32S (220V)
A: Lifting Height 72″~77 3/4″ (1830mm ~ 1976mm)
B: Overall Height 108 7/8″ (2766mm)
C: Overall Width 84 1/2″ (2146mm)
D: Minimum Pad Height 4 3/8″ (110mm)
Gross Weight 1,488lbs (675kg)
Motor 1.0HP, 110V/ 60Hz Single Phase   2.0HP, 220V/60Hz Single Phase

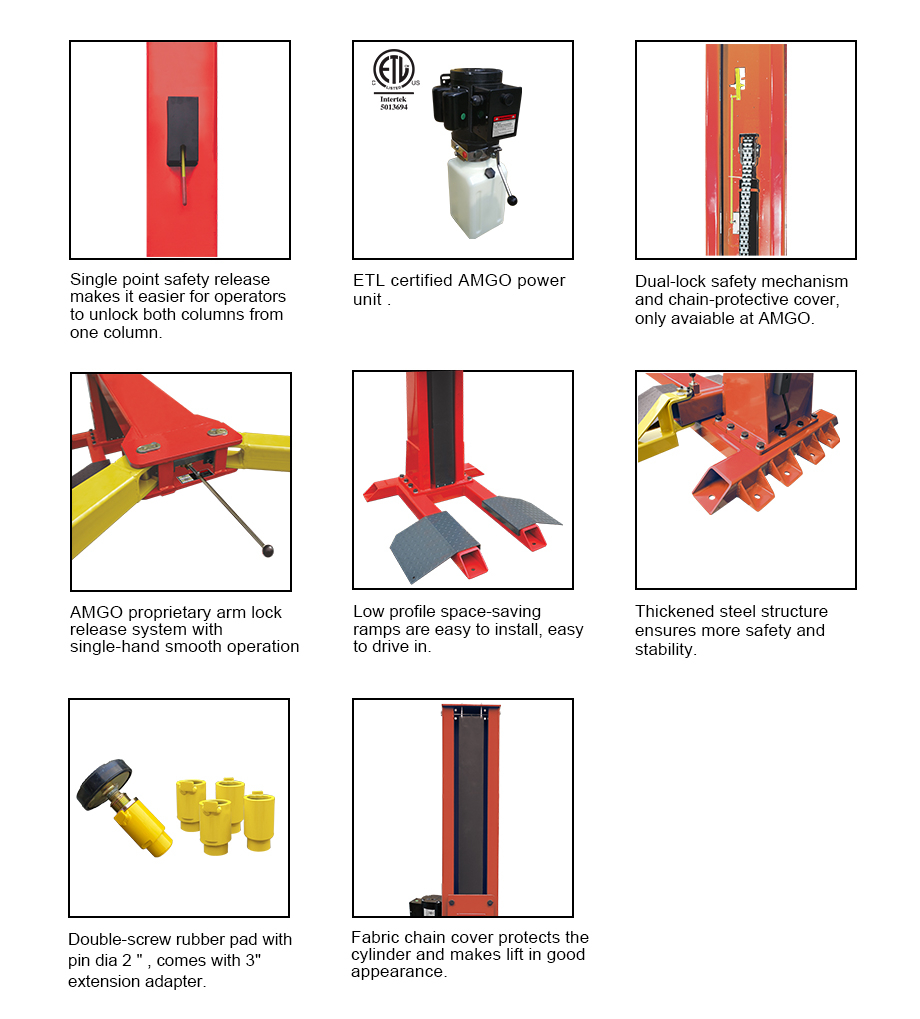

Detailed Images

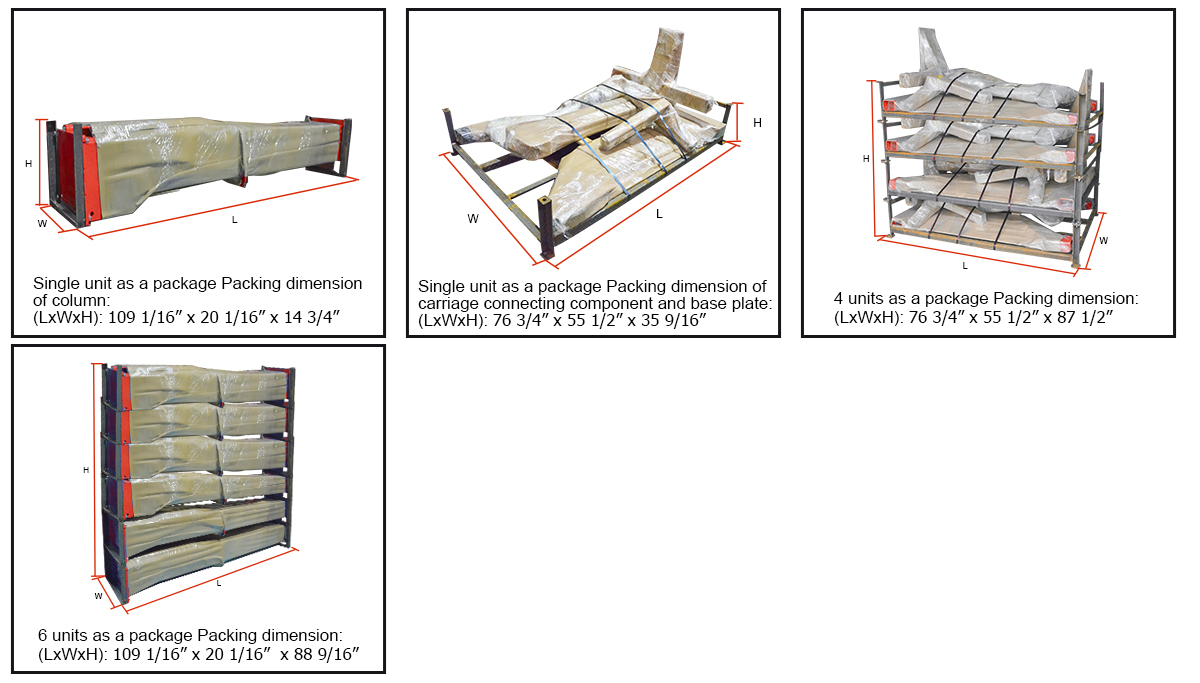

Shipping Information
