Features
- 8,000lbs capacity;
- The flush-mount design provides unobstructed floor space;;
- The full rise design gives generous workspace beneath the vehicle;
- Extendable platfroms allow various long wheelbase vehicles to be serviced;
- Mechanical air-release locking system;
- Electro-hydraulic power system with a dedicated control cabinet for enhanced safety;
- 3” rubber pads come standard;
- Electro control system, with control cabinet for enhanced safety.

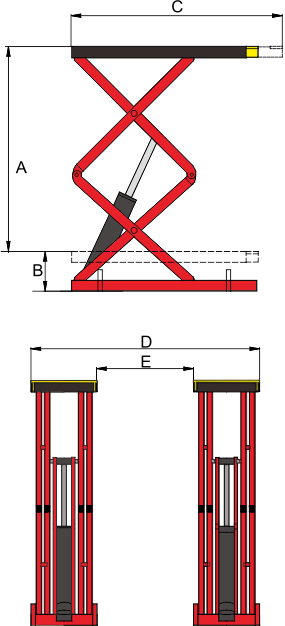

Specifications
| Model | XL-8F | |
|---|---|---|
| Lifting Capacity | 8,000 Ibs | |
| Lifting Time | 35s | |
| Max. Lifting Height | A | 72 7/16" |
| Max. Lock Height | 70 7/8" | |
| Minimum Height | B | 13 3/4" |
| Runway Length | C | 61 3/16"~69 1/16" |
| Overall Width | D | 74 13/16" |
| Width Between Runways | E | 31 1/2" |
| Gross Weight | 1,501 lbs | |
| Motor | 2.0HP |
Detailed Image

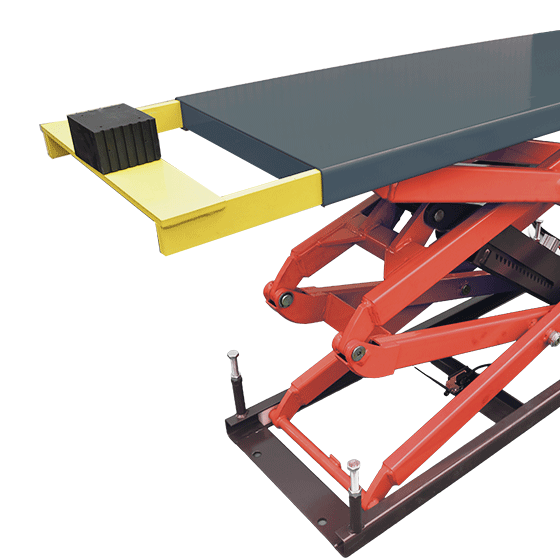

Extendable platfroms allow various long wheelbase vehicles to be serviced.

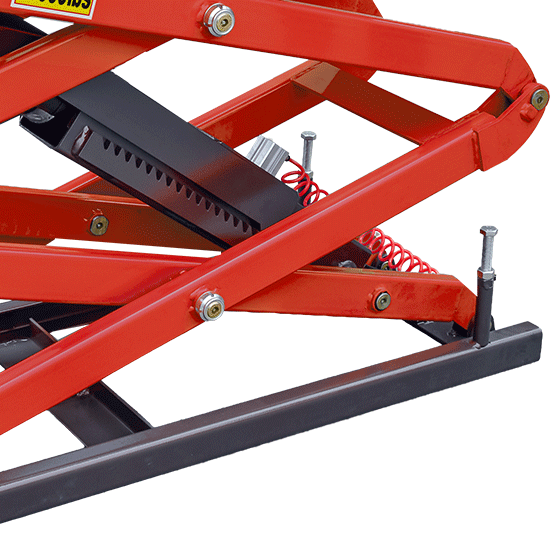

Mechanical air-operated auto-safety release. The open design allows free vehicle access from either side.
3" Rubber pads come as standard.
Optional: Leveling bar. Kits No.: SX003

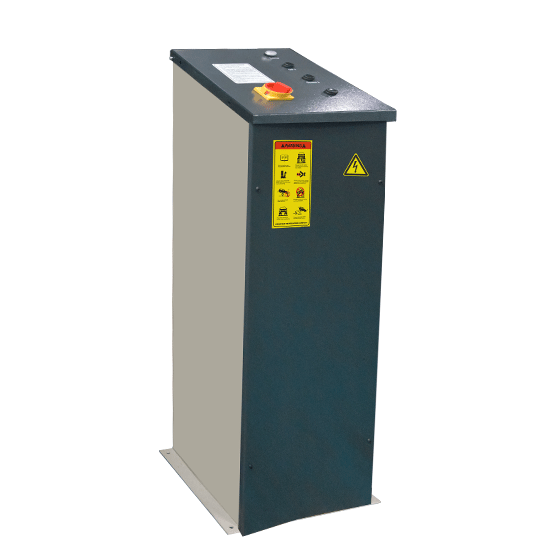

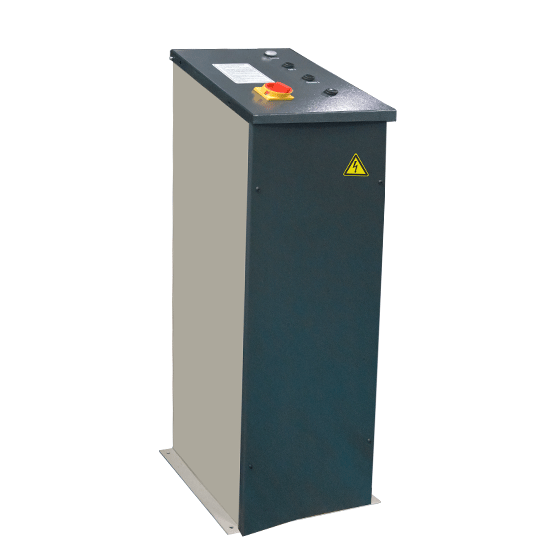

Electronic control system with control cabinet for enhanced safety.
Shipping Information

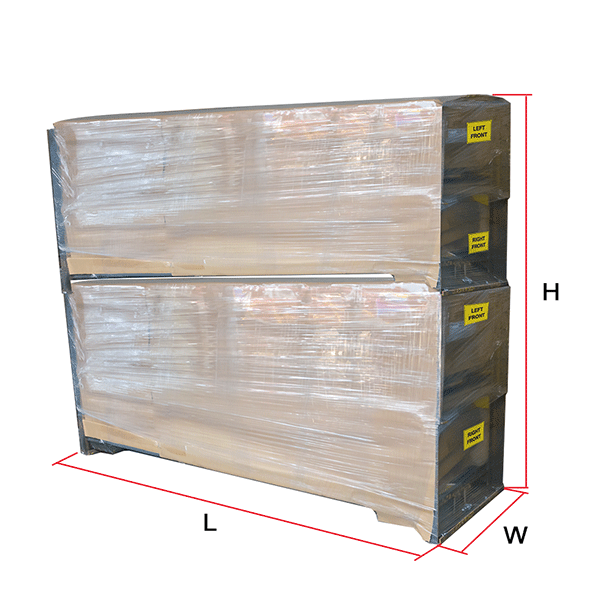

2 units/package, packing measurement (LxWxH) : 66 1/8" x 21 5/8" x 64 15/16"
Attention to forklift loading and unloading
Reviews
There are no reviews yet.
