Features
- Lifting capacity: 10,000 lbs;
- High quality dual hydraulic direct-drive cylinders;
- The
arms allow a symmetrical or asymmetrical loading while ensuring there is adequate door clearance; - Single-point manual safety lock release that unlocks both columns simultaneously from one side;
- The clear-floor design provides an unobstructed workspace;
- The overhead safety shut-off device for maximum vehicle protection;
- Easy installation with a single column piece;
- Self-lubricating UHMW polyethylene sliders;
- Automatic arms restraint;

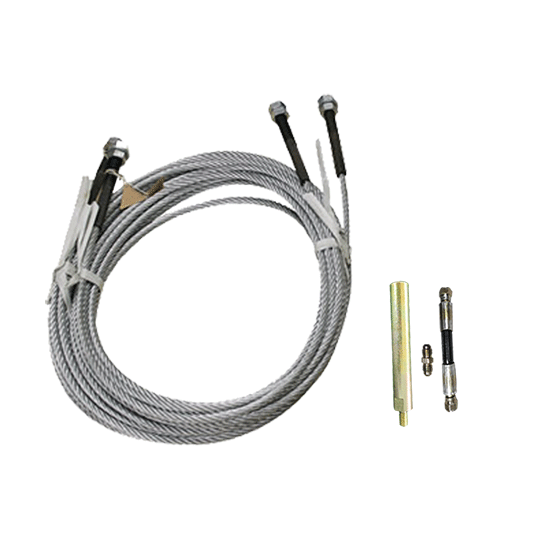

- Standard areo sync cables;
- Detachable toe guard and tool tray come standard;
- Standard double-screw rubber pad ( pin dia 2” ) with 3” extension adapters.
Specifications

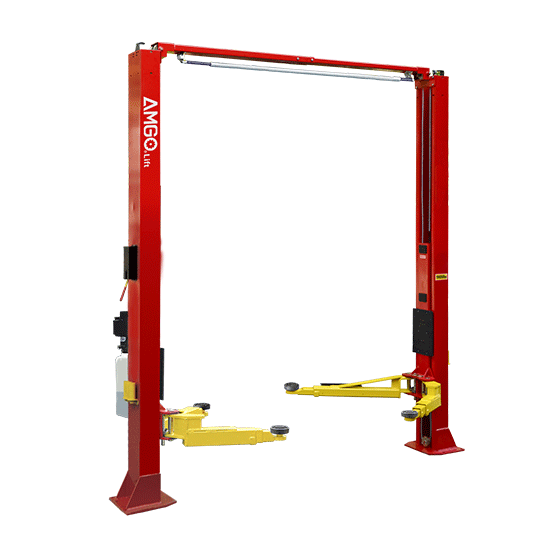

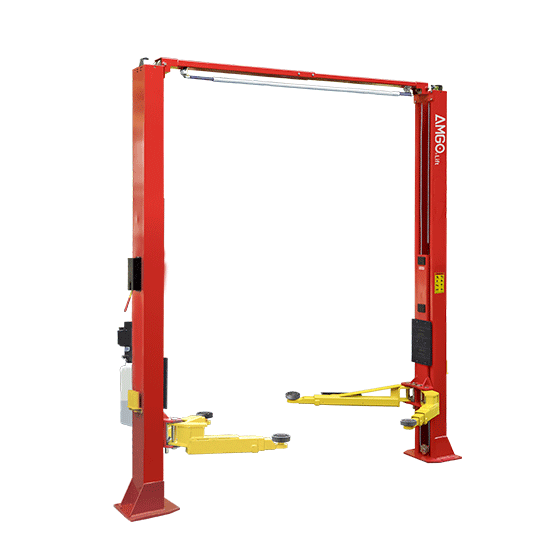

| Model OHX-10 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 10,000 Ibs | |
| Lifting Time | 57s | |
| Max. Lifting height: (w/o extension adapter) | A | 71 7/16"~73 3/8" |
| Max. Lifting height: (w/ extension adapter) | 74 7/16"~76 5/16" | |
| Max. lock height: (w/o extension adapter) | 69 5/8″~71 1/2" | |
| Max. lock height: (w/ extension adapter) | 72 5/8"~74 1/2" | |
| Overall Height | B | 144" |
| Overall Width | C | 134 15/16" |
| Drive-Thru Clearance | D | 99 13/16" |
| Width Between Columns | E | 112 1/4" |
| Minimum Pad Height | F | 3 9/16" |
| Gross Weight | 1,592 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 15 Units/20'GP |
Detailed Image

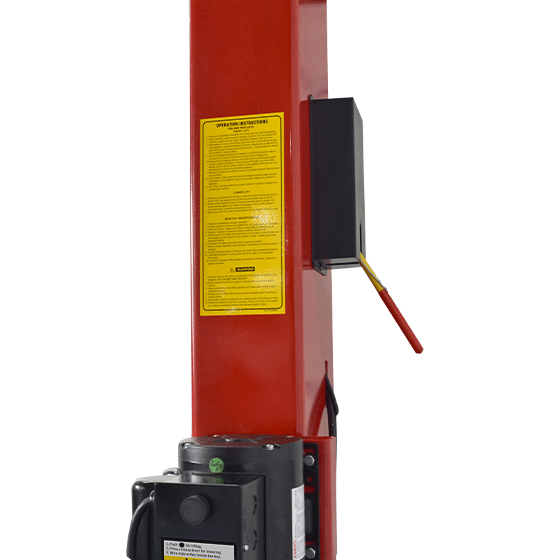

Single-point manual safety lock release that simultaneously unlocks both columns from one side

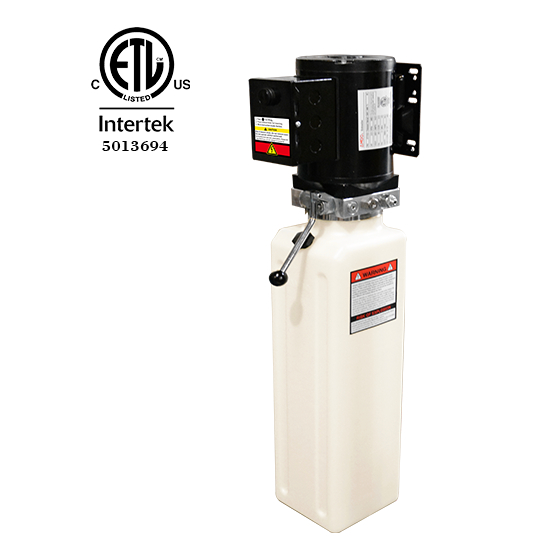

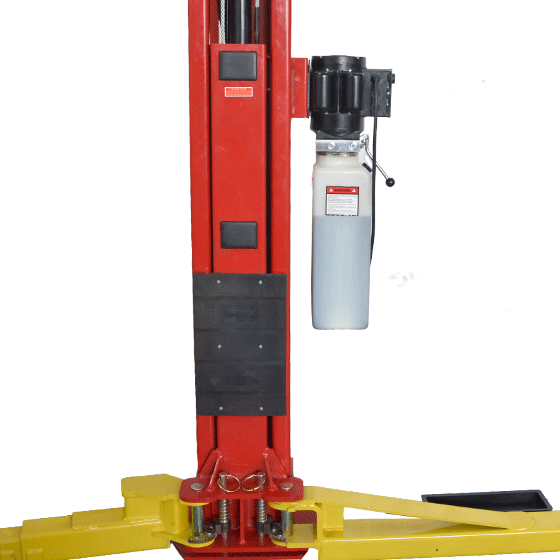

ETL certified AMGO power unit.

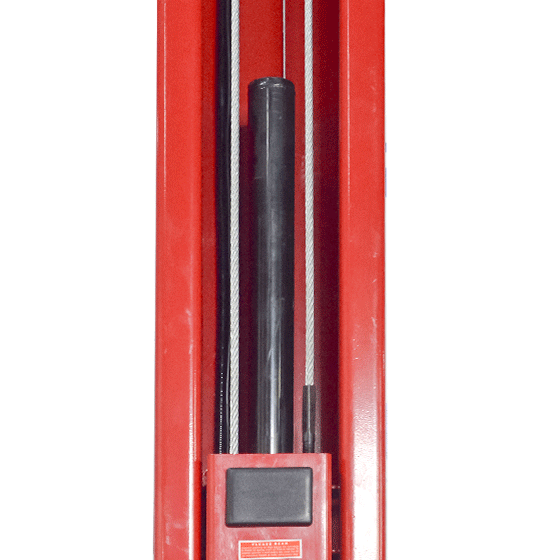

High quality dual hydraulic direct-drive cylinders

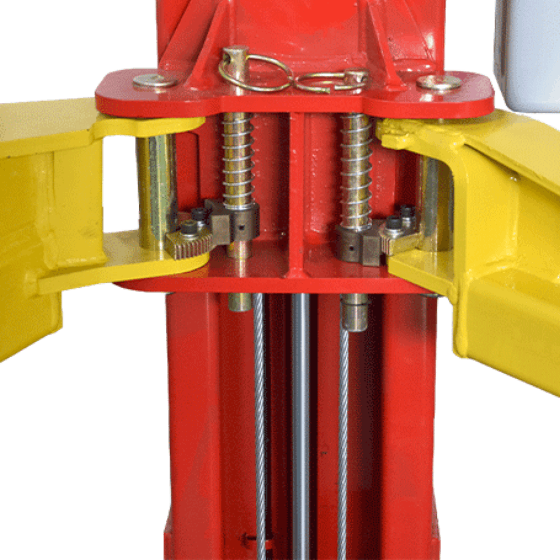

Automatic arm restraints.

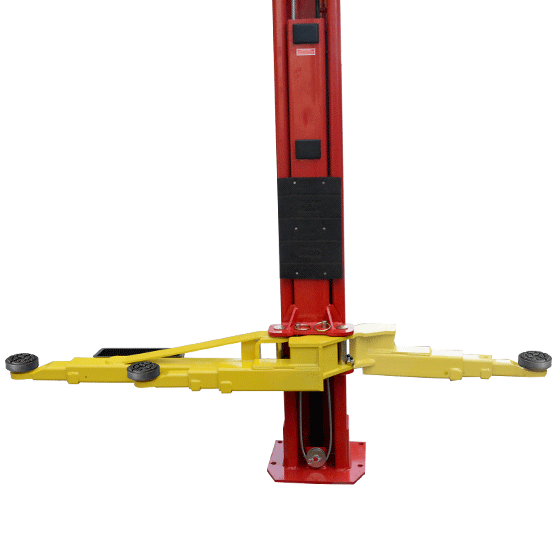

Super asymmetric arms allow a symmetrical or asymmetrical loading while ensuring there is adequate door clearance
Extremely long carriages, more than twice the length of comparable models on the market.

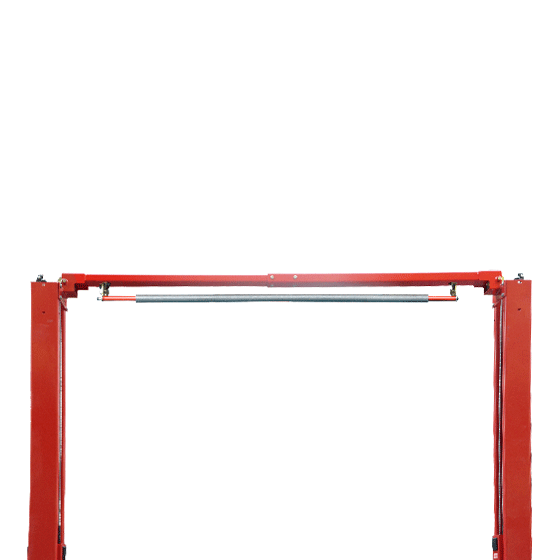

The top beam is designed to be adjustable to fit different widths. There is an overhead safety shut-off device for maximum vehicle protection.

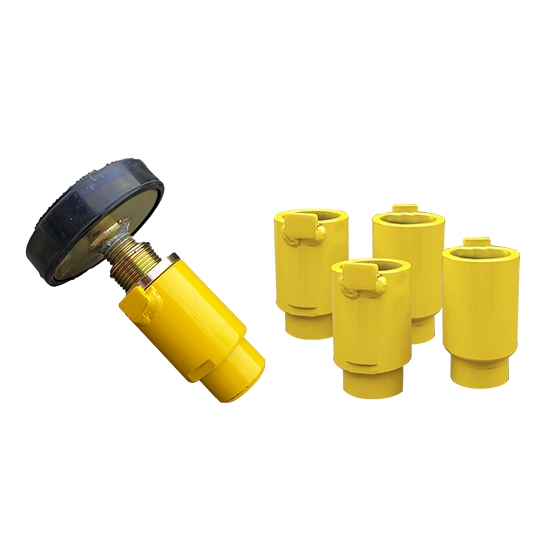

Standard double-screw rubber pad (pin dia 2") with 3" extension adapters.

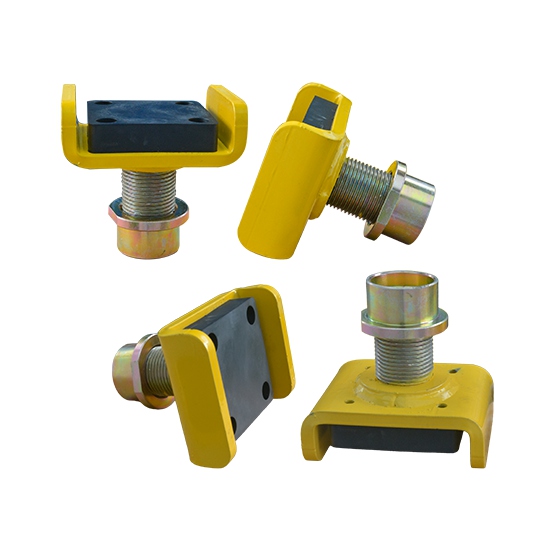

Optional saddle adapter. Kits No.: 21108

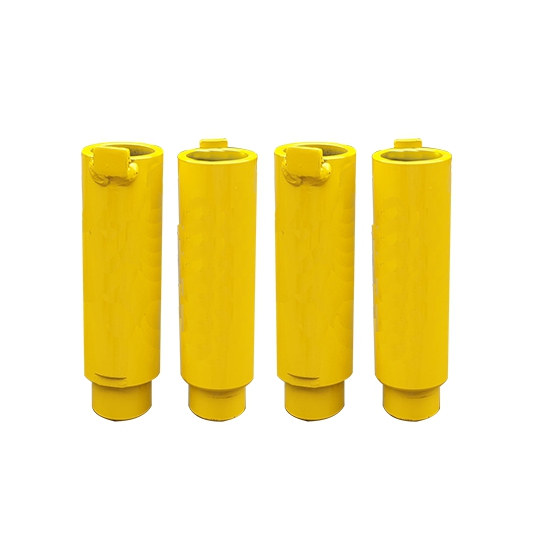

Optional 6" extension adapter, P/N: 1102504001-01
Optional width extension kits, that can extend the width between columns from 112 1/4" to 118 1/8". Kits No.: 21004
Shipping Information

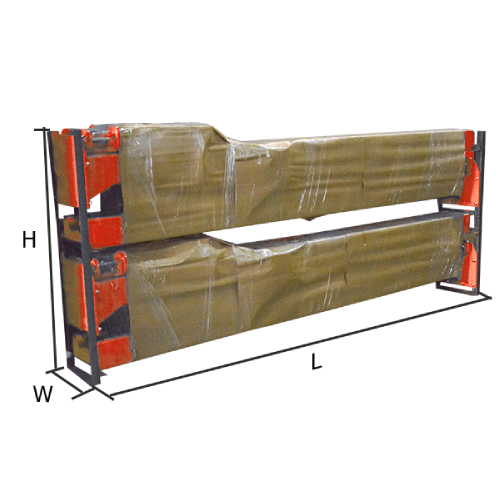

2 units/package, packing measurement (LxWxH) : 145 1/16" x 17 3/4" x 61" (Packed with power unit)

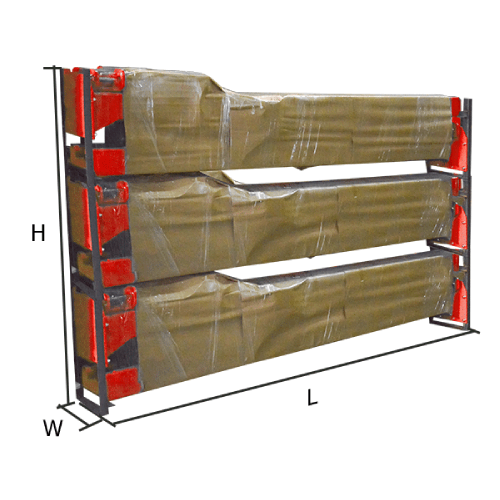

3 units/package, packing measurement (LxWxH) : 145 1/16" x 17 3/4" x 89 1/16" (Packed with power unit)
