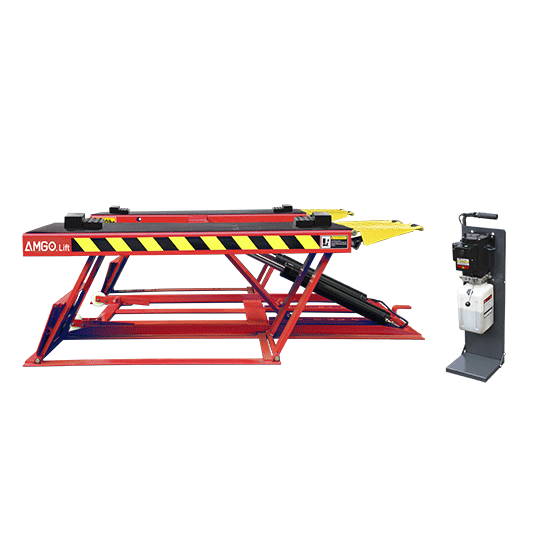

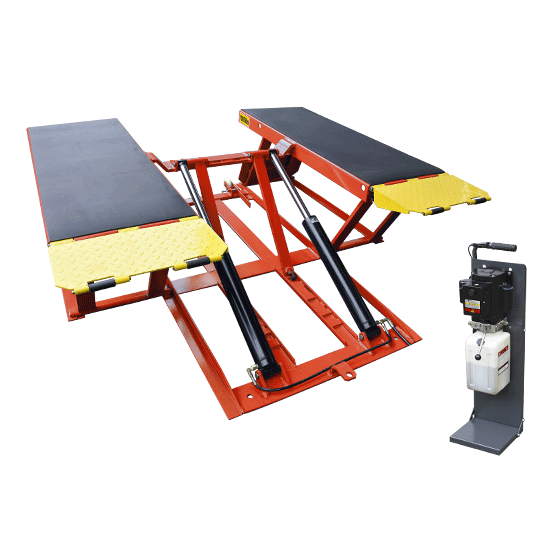

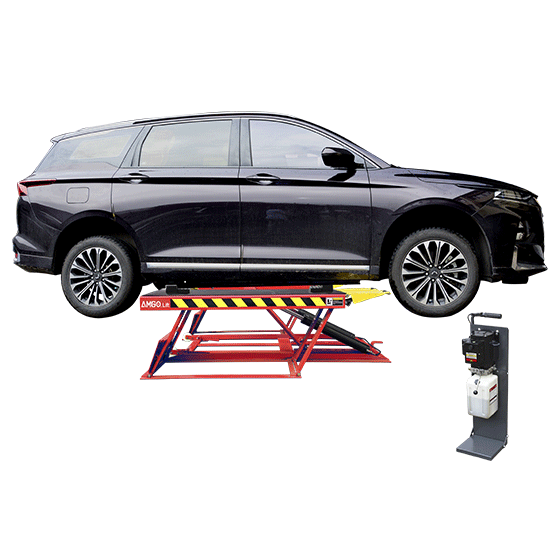

LR10 Low Rise Lift

The Portable low-rised lift is an excellent choice for low ceiling or adding a bay for seasonal increases in business. Provides good working height for tires, brakes and body repairs.

Contact Us Now

Click to download Product Brochure

Click to download Product Manual




• Automatic multiful safety locksd.

• Automatical safety lock release.

• Portable unit is easy to move with the power unit stand.

• High speed: From 105-600 mm(4 1/8″-23 5/8”) in just 50 seconds .

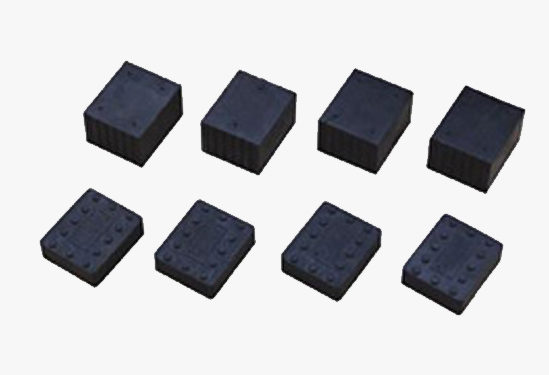

• Standard rubber pads included.

Model LR10
Lifting Capacity 10,000lbs
Lifting Time 50s
A1: Max. Lifting Height 23 5/8″ (600mm)
A2: Minimum Height 4 1/8″ (105mm)
B: Runway Length 53 1/4″ (1352mm)
C: Overall Width 70″ (1780mm)
D: Width Between Runways 34 1/8″ (868mm)
E: Overall Length 76 1/4″ (1938mm)
F: Overall Runway Length(Inc.Ramp) 66″ (1676mm)
Gross Weight 1,025lbs (465kg)
Motor 1.0HP 110V/60Hz, single phase
