BP-12

Features

• Lifting capacity: 12,000 lbs;
• Sturdy three-stage retractable arms that works for various vehicles;
• Single-point manual safety lock release that simultaneously unlocks both columns from one side;
• Base plate design that can accommodate various vehicles;
• Exclusive: Two width settings for installation: width between columns 118 1/8″ and 123 1/2″;
• Self-lubricating UHMW polyethylene sliders
• Automatic arms restraint;
• Areo sync cables come standard;
• Detachable toe guard and tool tray come standard;
• Heavy-duty single-screw rubber pad and saddle adapter come standard;
• 3″ and 6″ extension adapters come standard.

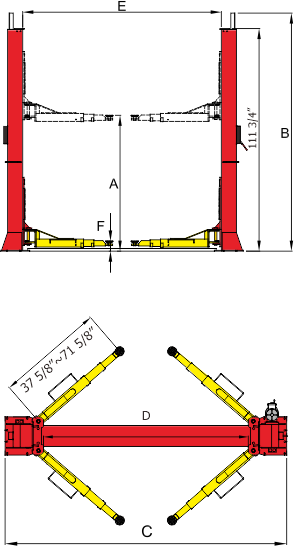

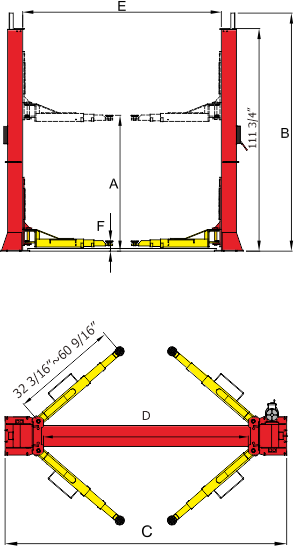

Specifications

Model BP-12		Base plate two post lift
Lifting Capacity		12,000 Ibs
Lifting Time		65s
Max. Lifting height: (w/o extension adapter)	A	72 1/2"~73 7/8"
Max. Lifting height: (w/ extension adapter)		81 9/16"~82 7/8"
Max. lock height: (w/o extension adapter)		70 9/16″~71 7/8"
Max. lock height: (w/ extension adapter)		79 9/16"~80 15/16"
Overall Height	B	122 1/2"
Overall Width	C	145 3/8" (150 3/4")
Drive-Thru Clearance	D	104 7/16" (109 13/16")
Width Between Columns	E	118 1/8" (123 1/2")
Minimum Pad Height	F	4 1/2"
Gross Weight		2,238 Ibs
Motor		2.0HP
QTY of Container		20 Units/20'GP

Detailed Image

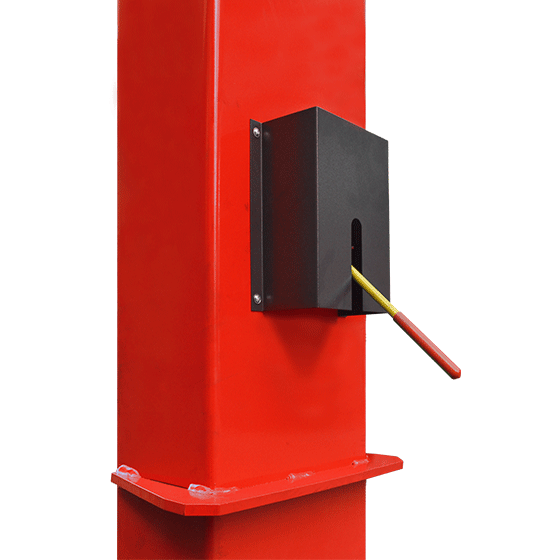

Single-point manual safety lock release that unlocks both columns simultaneously from one side

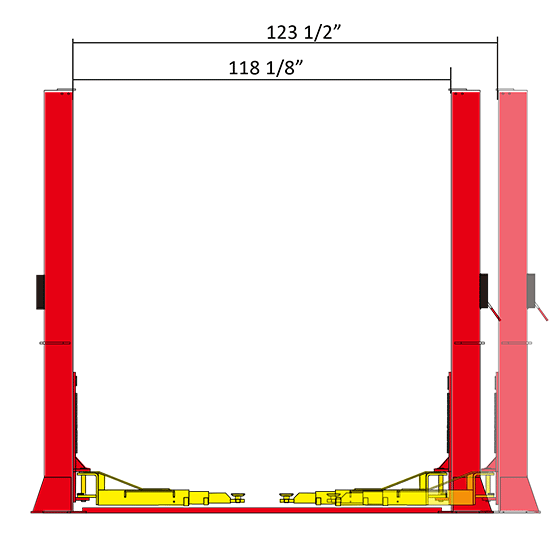

Two installation widths available to choose from.

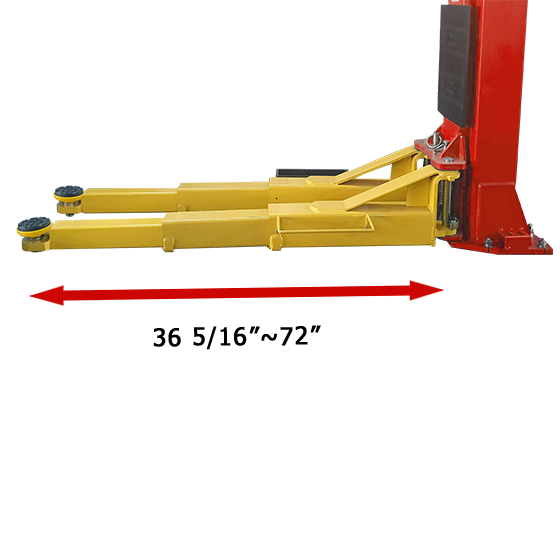

Four 3-stage retractable arms fit more vehicles. Toe guards and tool trays come standard.

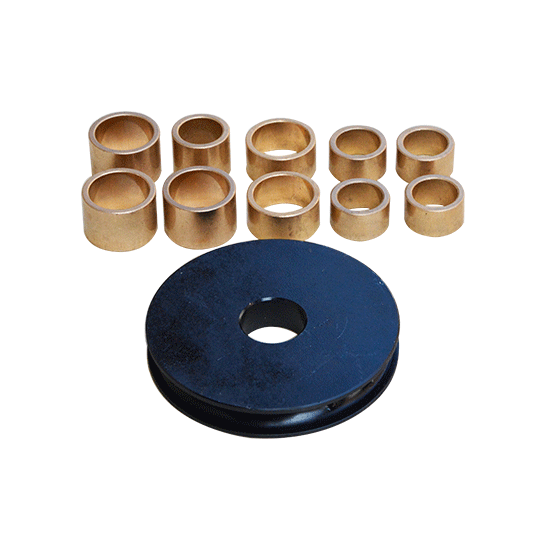

Pulley with self-lubricating bronze bush that's virtually maintenance free.

Heavy duty single-screw rubber pads and saddle adapters come standard.

3" and 6" extension adapters come standard.

Optional heavy-duty extra-wide saddle adapter. Kits No. 21109

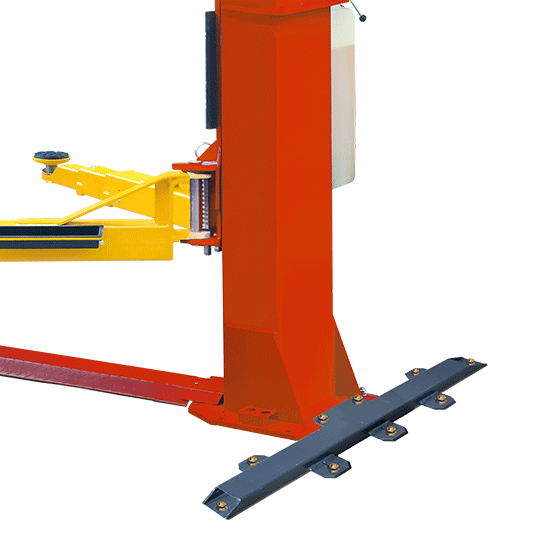

Optional base plate extention. Kits no.: 21501

Optional extra length 3-stage arms . Kits no.: 10207063-02

Shipping Information

2 units/package, packing measurement (LxWxH) : 114 15/16" x 22 7/16" x 74 13/16" (Packed with power unit)

Attention to forklift loading and unloading
