Features
- Lifting Capacity: 7,000lbs;
- AMGO’s patented arm-lock release system provides a seamless, single-handed release operation;
- Double-lock safety system;
- Drop-in screw-type rubber pad with 2” pin diameter;
- Self-lubricating UHMW polyethylene sliders and bronze bushings;
- AMGO ETL certified power unit;

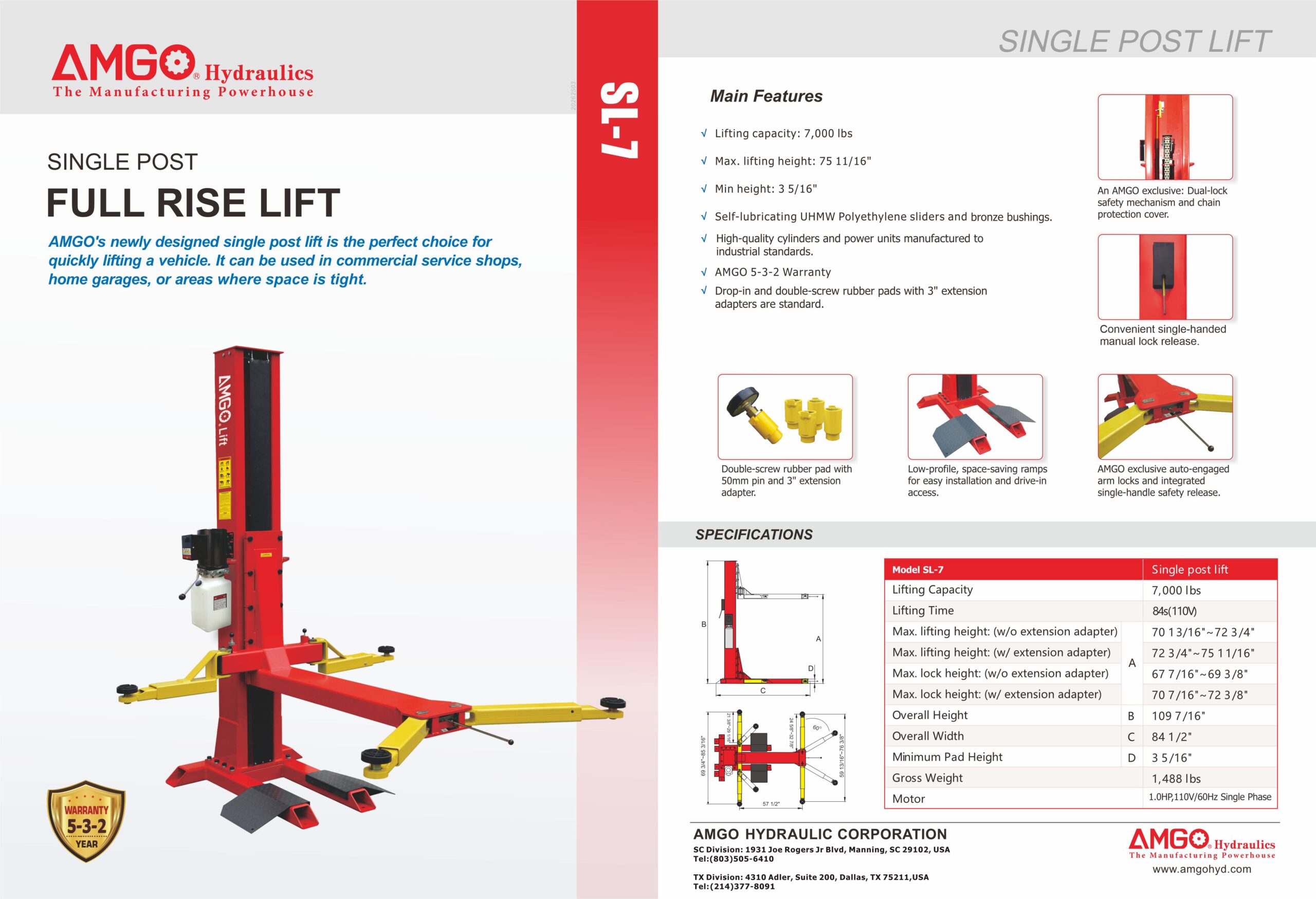

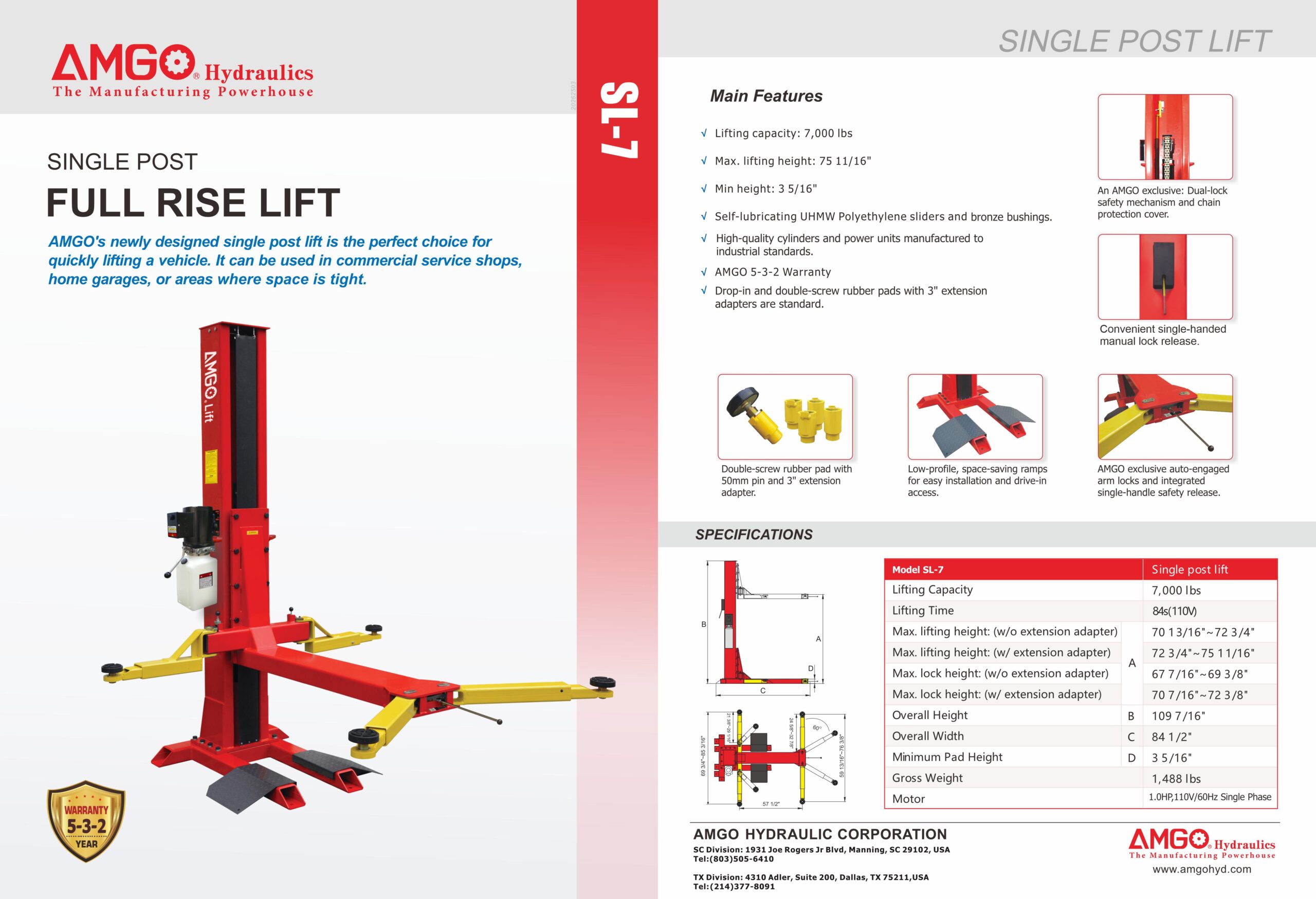

Specifications

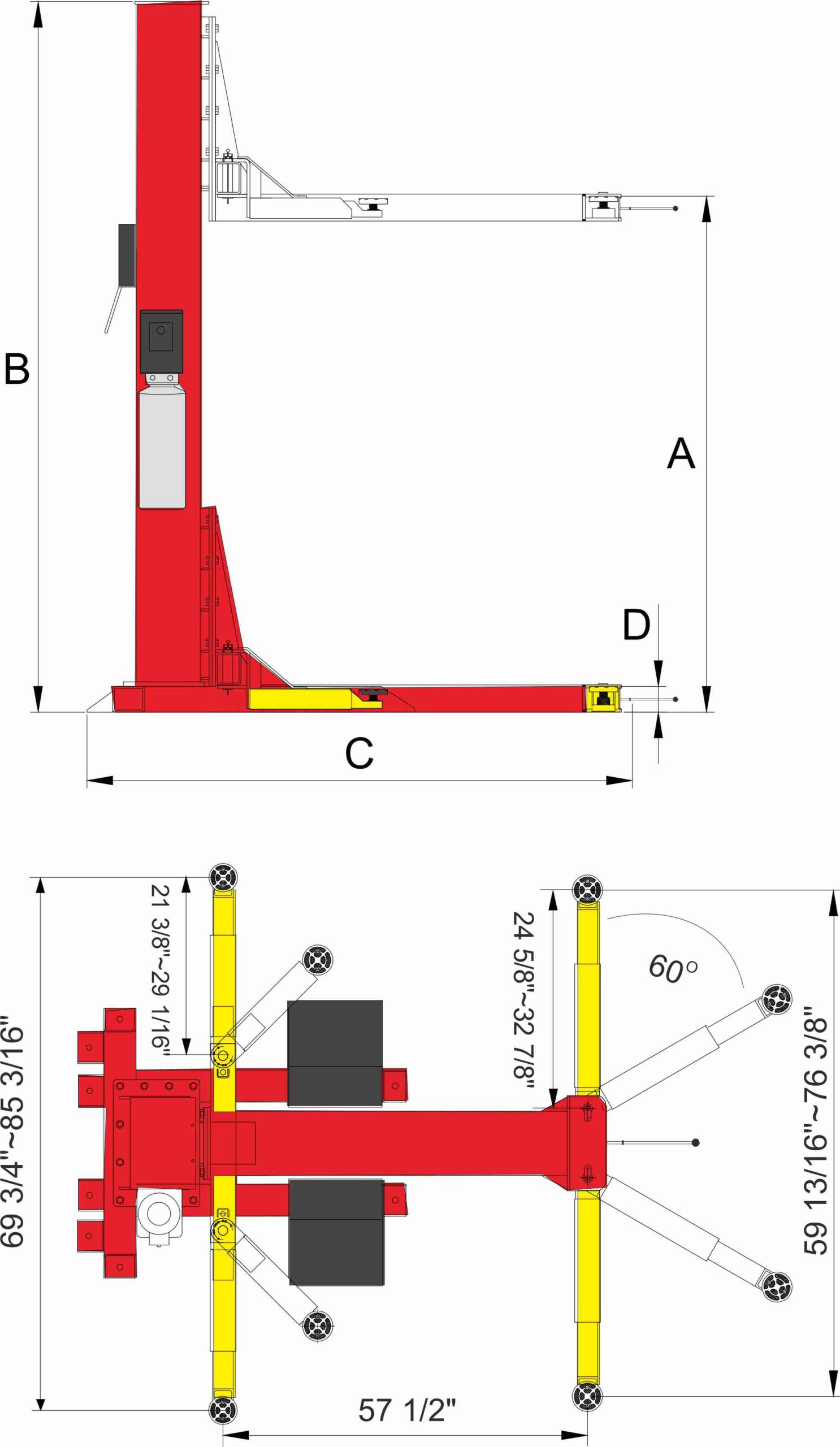

| Model SL-7 | Single Post Lift | |
|---|---|---|
| Lifting Capacity | 7,000 lbs | |
| Lifting Time | 84s | |
| Max. Lifting Height: (w/o extension adapter) | A | 70 13/16" ~ 72 3/4" |
| Max. Lifting Height: (w/ extension adapter) | 72 3/4" ~ 75 11/16" | |
| Max. Lock Height: (w/o extension adapter ) | 67 7/16" ~ 69 3/8" | |
| Max. Lock Height: (w/ extension adapter ) | 70 7/16” ~ 72 3/8“ | |
| Overall Height | B | 109 7/16" |
| Overall Width | C | 84 1/2" |
| Minimum Pad Height | D | 3 5/16" |
| Gross Weight | 1,488 lbs | |
| Motor | 1.0HP,110V/60Hz | |
| QTY of Container | 12 Units/20'GP |
Detailed Image

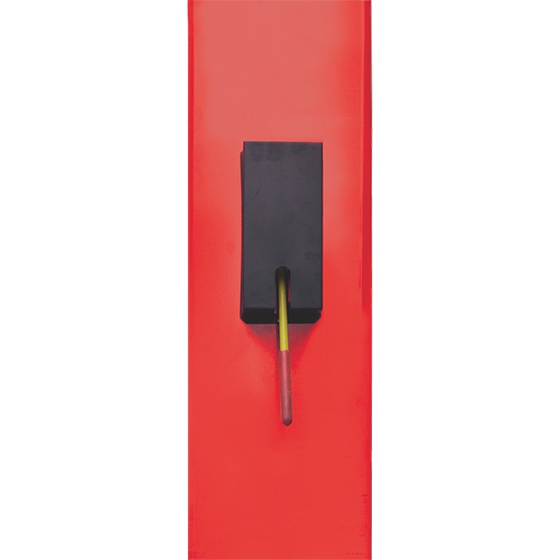

Convenient single-handed manual lock release.
ETL certified AMGO power unit.

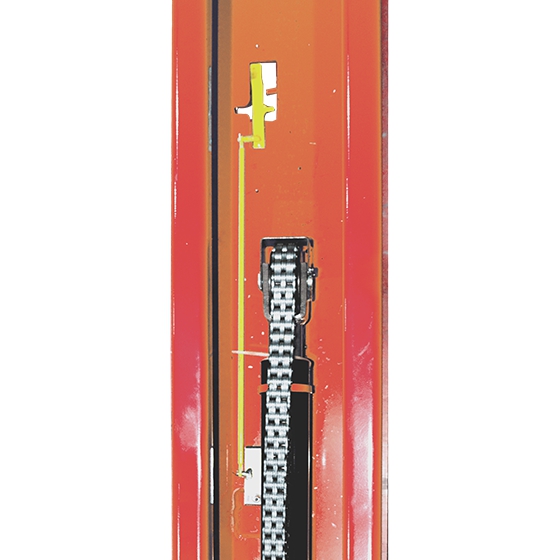

Dual-lock safety mechanism and chain-protective cover,only available at AMGO.

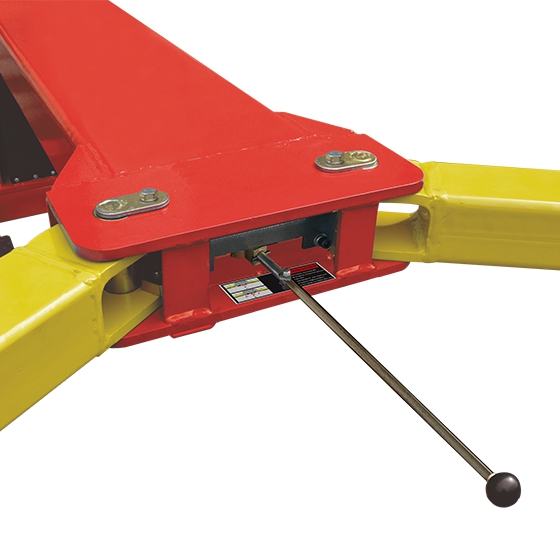

AMGO's patented arm-lock release system provides a seamless, single-handed release operation.

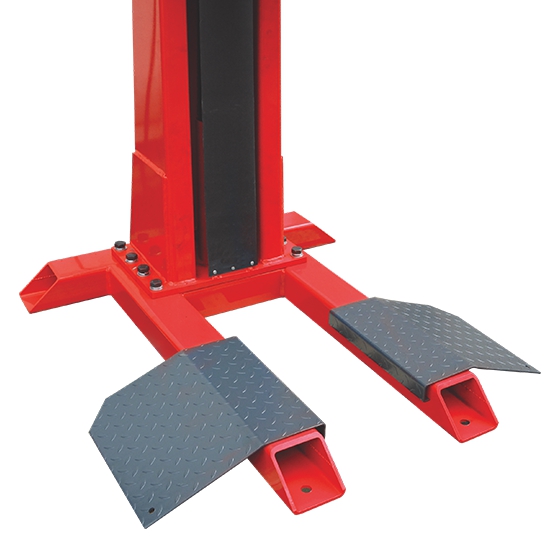

Low-profile, space-saving ramps make it easy to drive in and are easy to install.

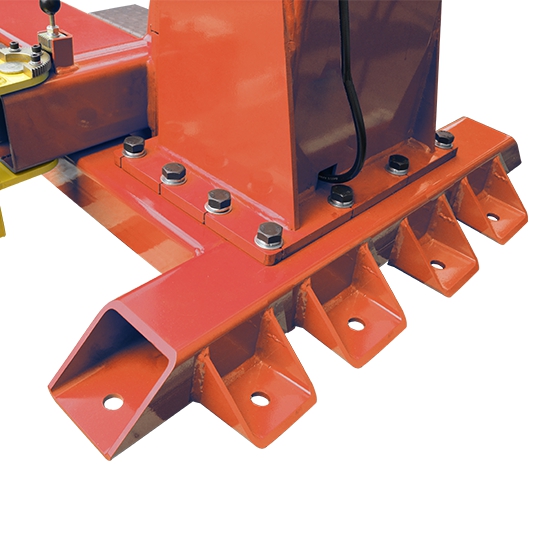

Thickened steel structure provides more safety and stability.

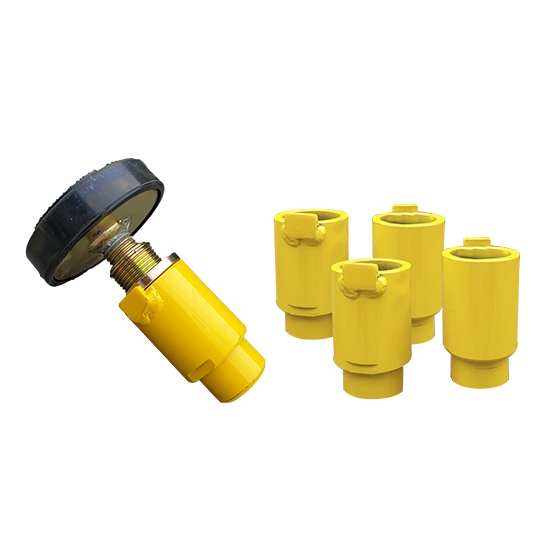

Drop-in screw-type rubber pad with 2” pin diameter, comes with 3" extension adapter.

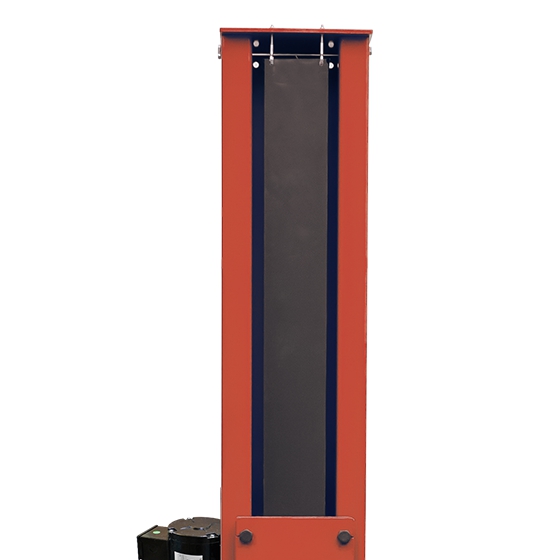

Fabric chain cover protects the cylinder and provides a nice, clean appearance.
Shipping Information
Single unit as a package, packing dimension of column (LxWxH): 109 1/16" x 20 1/16" x 14 3/4“
6 units as a package, packing dimension (LxWxH): 109 1/16" x 20 1/16" x 88 9/16"
Single unit as a package, packing dimension (LxWxH): 76 3/4" x 55 1/2" x 35 9/16"
