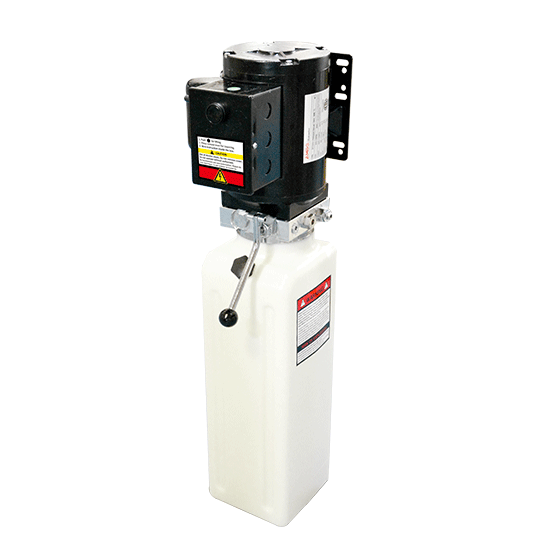

Model: 071101

220V/60HZ Single Phase Manual Power Unit

Engineered with a modular plug-in design, 071101 embodies our commitment to delivering professional-grade power solutions. It features a manual release mechanism, ensuring maximum compatibility with nearly every lift on the market—particularly two post and four post car lifts.

Compatible AMGO models:

BP-9 | BP-9X | BP-10 | OH-9 | OH-10 | OHX-10 | OHX-10H | PRO-12SX | PRO-12ASX | 409-HP | 409-DP | 409-DPX | 408HLX | 409-HPX.

Contact Us Now

Click to download Product Manual

Categories: ,

Features

    • With ETL Certificate, 220V single-phase 60Hz AC;
    • Equipped with 11L high-density polyethylene oil tank;
    • Manual Detrol release valve;
    • High pressure gear pump with a displacement 2.1cc/r, the highest pressure up to 25MPa;
    • Plug-in design high-pressure relief valve, with a relief pressure set at 21MPa;
    • Adjustable reflux speed by throttle valve;
    • Longevity & easy maintenance
    • Oil outlet is provided on both sides

Specifications

Model: 071101 Specifications
Part No.071101
L31 7/16’’
L19 5/16’’
L222 3/16’’
Voltage220v Single Phase
Frequency60Hz
Power2.0HP
Pressure21MPa
Displace ment2.1cc/r
Tank11L
Oil Outlet3/8SAE

Detailed Image

Shipping Information

1 units/package, packing measurement (LxWxH) : 36 5/8’’x12 3/16’’x15 3/8’’
