Features
• Lifting capacity: 6000lbs.
• Commercial grade, suitable for both commercial applications and home garages.
• Space saving design, available for low ceiling garage as low as 110″.
• Dual safety devices, single-point release lock, no need air source.
• H-shaped non slip lifting platform with reinforced column and base to provide excellent stability.
• The two platforms can be interchangeably installed.
• Guide ramp is equipped as standard for convenient parking underneath.
• Exclusive: Foldable drive-on ramps come as standard.

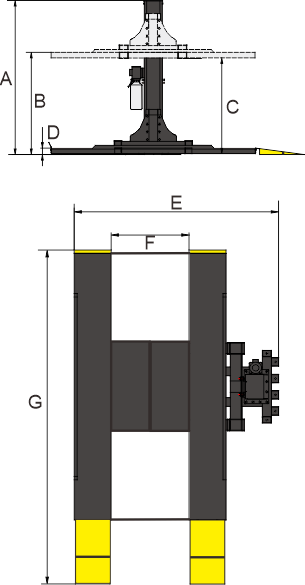

Specifications
| Model | SPL-6 | |
|---|---|---|
| Lifting Capacity | 6,000 lbs | |
| Lifting Time | 38s(220V) 84s(110V) |
|
| Overall Height | A | 109 7/16" |
| Max. Lifting Height | B | 74" |
| Max. Lock Height to top of Runway | 70 3/16" | |
| Max. Height Underneath Runway | C | 69 5/16“ |
| Max. Lock Height Underneath Runway | 65 1/2" | |
| Minimum Height | D | 6 1/8" |
| Overall Width | E | 111" |
| Width Between Runways | F | 42 3/8" |
| Overall Length | G | 192 1/8" |
| Gross Weight | 3,027 lbs | |
| Motor | 2.0HP,220V/60Hz 1.0HP,110V/60Hz |
Detailed Image

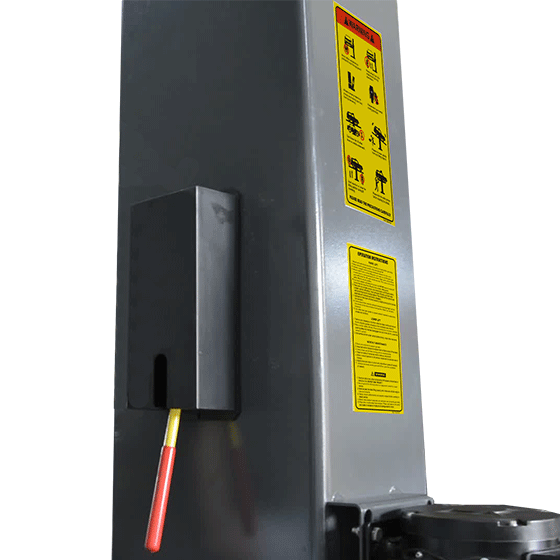

Manual lock release with two-stages safety locks, no extra air source required.
ETL certified AMGO power unit.

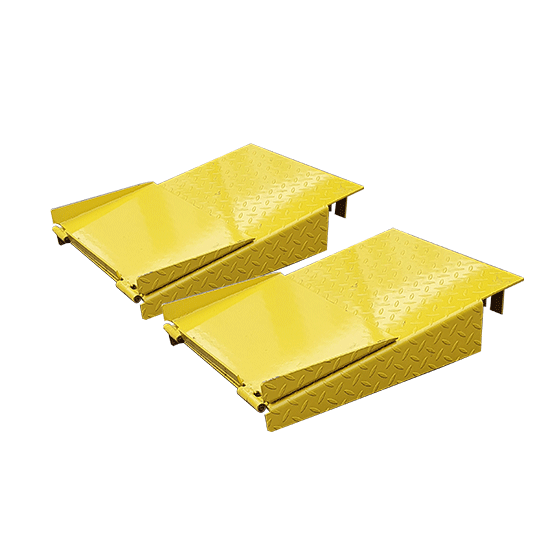

Foldable drive-on ramps come standard (each lift 2 units).

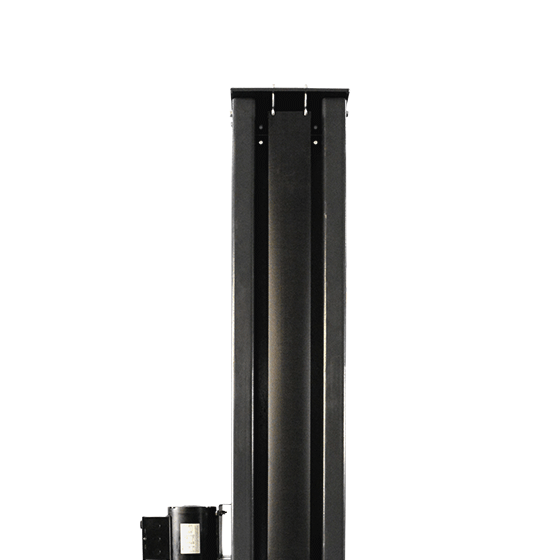

Fabric chain cover protects the cylinder and makes lift in good appearance.

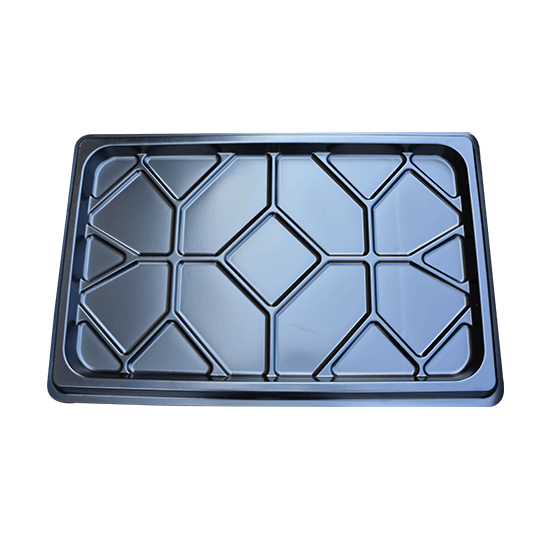

Optional plastic oil tray (1 set, 4pcs), Kits No.: 40807

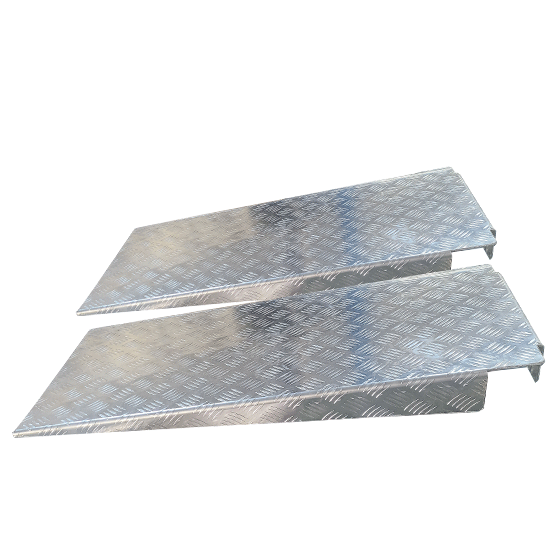

Optional aluminum alloy drive-in ramp (1pc), P/N: 40815

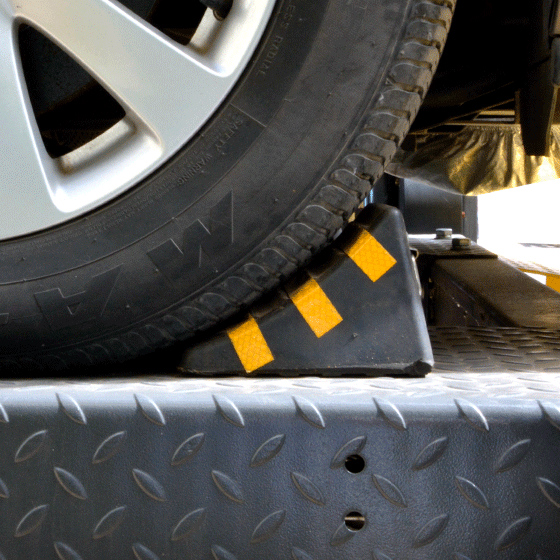

Optional rubber wheel chock (1PC), P/N: 40811

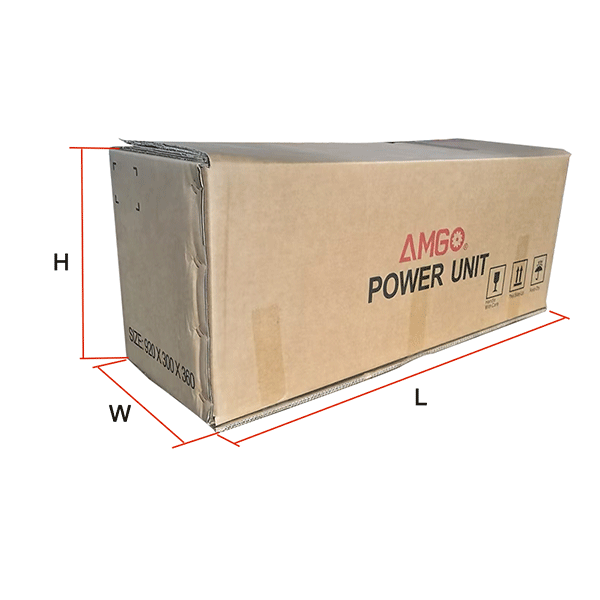

Shipping Information
Single unit packing dimension of carriage connecting component and base plate(LxWxH): 49 5/8"x41 3/8"x14 1/2"； 6 units packing dimension(LxWxH): 49 5/8"x41 3/8"x86 7/8"

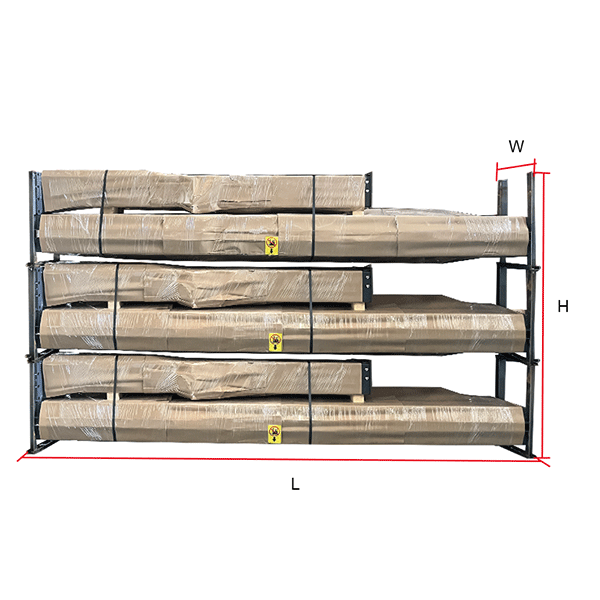

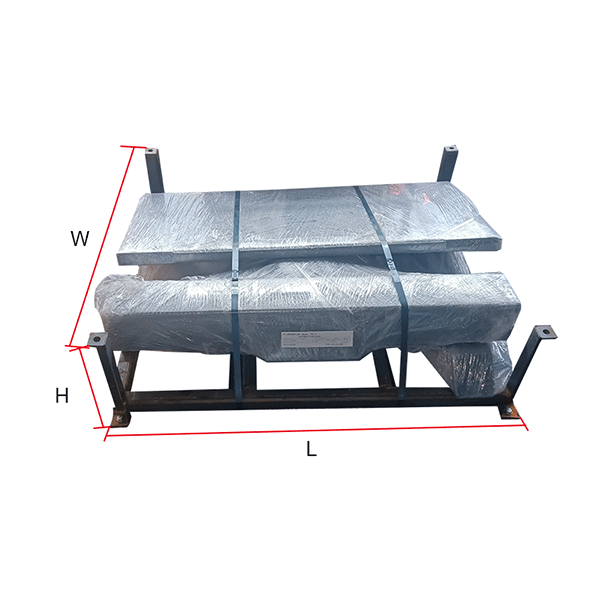

Single unit as a package Packing dimension of column(LxWxH): 156 3/4"x21 1/4"x30 3/8"; 3 units as a package Packing dimension (LxWxH): 156 3/4"x21 1/4"x87 1/8"
