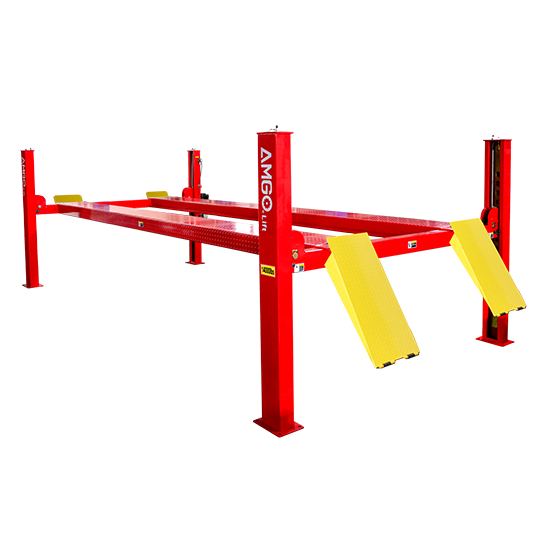

Features
• 14,000 lbs capacity;
• ETL certified AMGO power unit comes standard;
• Mechanical self-locking safety device with air-driven lock release;
• Standard primary safety locks and cable-slack protection system;
• Cable-driven system with areo standard high quality cables;
• Hydraulic cylinder is designed and manufactured to a high standard, utilizing high-quality oil seals and compensation valve;
• Non-skid diamond platforms;
Specifications
| Model | PRO-14E | |
|---|---|---|
| Lifting Capacity | 14,000 Ibs | |
| Lifting Time | 81s | |
| Overall Length (Inc Ramps) | A | 287 1/16" |
| Outside Edge of Crossbeams | B | 238 13/16" |
| Overall Width | C | 130 7/8" |
| Width Between Columns | D | 116" |
| Max. Lifting Height | E | 75 9/16" |
| Max. Lock Height to top of runway | 72 7/16" | |
| Overall Height | F | 86 3/16" |
| Minimum Height | G | 7 7/8" |
| Max. Underneath Height | H | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" | |
| Drive-Thru Clearance | I | 102 1/16" |
| Width Between Runways | J | 46" |
| Outside Edge of Runways | K | 86" |
| Gross Weight | 3,267 lbs | |
| Motor | 2.0HP |
Detailed Image
Oil-water separator and solenoid air valve are installed on the power side column.
ETL certified AMGO power unit.
Standard primary safety locks and cable-slack protection system.
Hydraulic cylinder is designed and manufactured to a high standard, utilizing high-quality oil seals and compensation valve.
Non-slip diamond platforms come standard.
Optional extension platform. Kits No.:41801-01
Optional Air line kits- All AMGO four post lifts are designed to use the air line kits for rolling jack. Kits No.:40102A
Optional rolling jacks with 8,000lbs capacity: RJ-8A - pneumatic.
Shipping Information
1 units/package, packing measurement (LxWxH) : 247 3/16"x 22 5/8"x 33 1/16". Packed with Power Unit.
2 units/package, packing measurement (LxWxH) : 247 3/16"x 22 5/8"x 66 1/8"
After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.
Use a forklift to lift up one end of the machine about 2"-5" from the ground, and pull the machine out from the container with the assistance of lifting belt or other cables.
