Features
- 7,000lbs capacity;
- Portable design, can be easily moved to any service bay;
- Elaborate minimalist design, virtually maintenance-free;
- Low profile design that fits various vehicles (min. 4 5/8″);
- Flexible drive-in ramps can also serve as extension platforms；
- Dual torsion bars enhance the absolute platform synchronization;
- Auto-release mechanical locks eliminate the need for an external air source;
- 3″ and 1 1/2″ rubber pads come standard.
Specifications

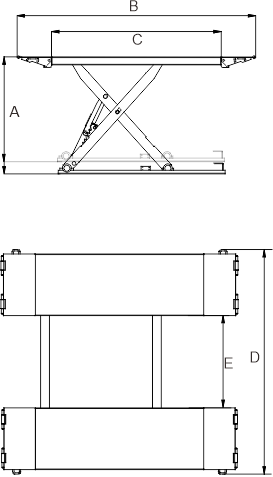

| Model | MRL07 | |
|---|---|---|
| Lifting Capacity | 7,000 Ibs | |
| Lifting Time | 23s(220V) 48s(110V) | |

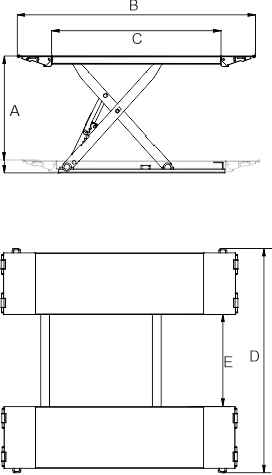

| Max. Lifting Height | A | 42 1/8" |
| Minimum Height | 4 5/8" | |
| Max. Lock Height | 39 3/4" | |
| Overall length(Inc. ramps) | B | 80 1/2" |
| Runway Length | C | 57 15/16" |
| Overall Width | D | 76 7/8" |
| Width Between Runways | E | 31 1/2" |
| Gross Weight | 1,153 lbs | |
| Motor | 1.0HP (110v) 2.0HP (220v) |
Detailed Image

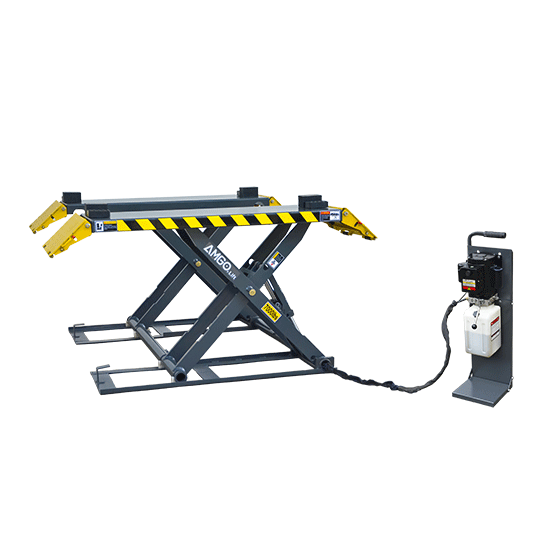

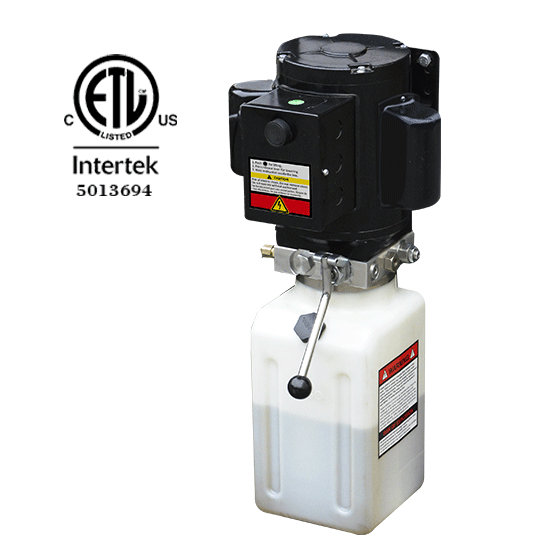

ETL certified AMGO power unit.
Auto-release mechanical locks eliminate the need for an external air source.

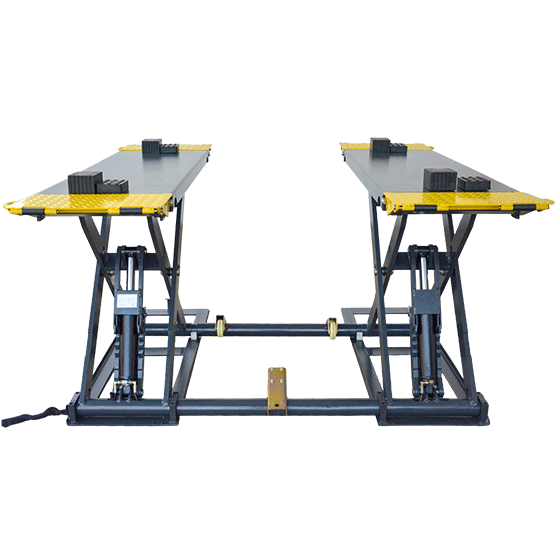

Dual torsion bars enhance the absolute platform synchronization

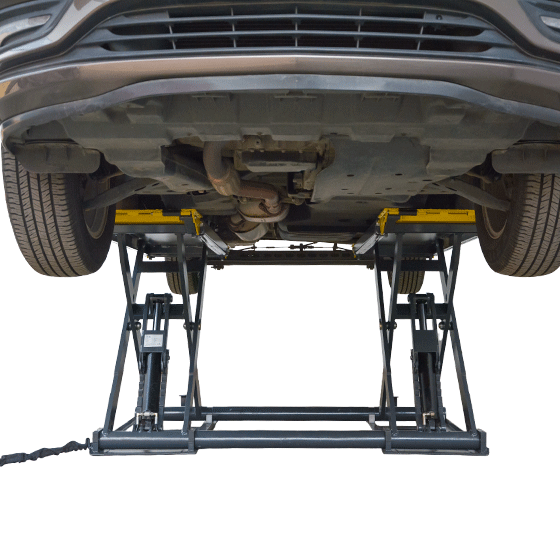

Low profile design that fits various vehicles (min. 4 5/8").

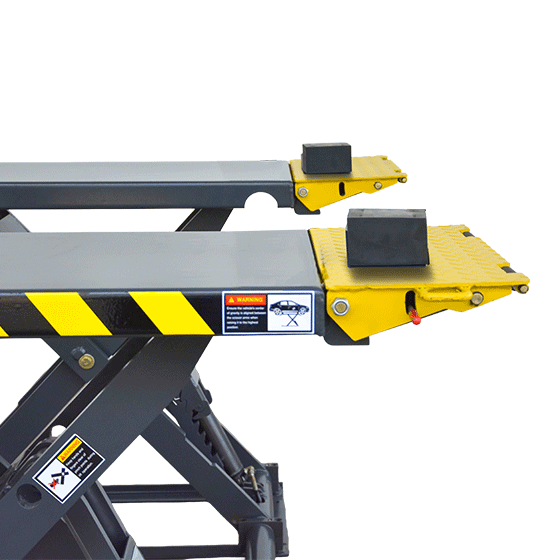

Flexible drive-in ramps can also serve as extension platforms.

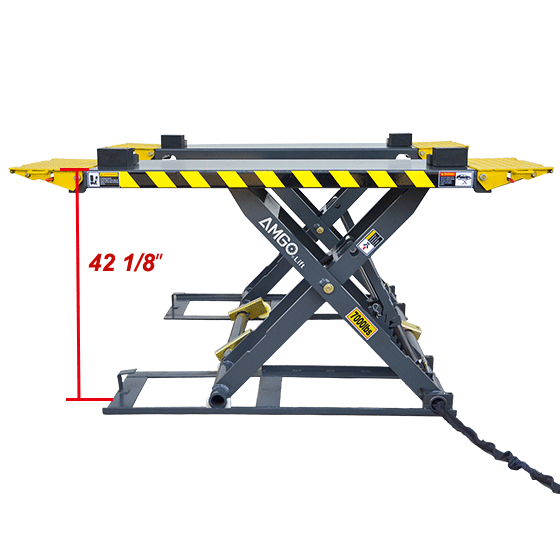

Maxmum lifting height 42 1/8" . Fast lifting in 23 seconds.

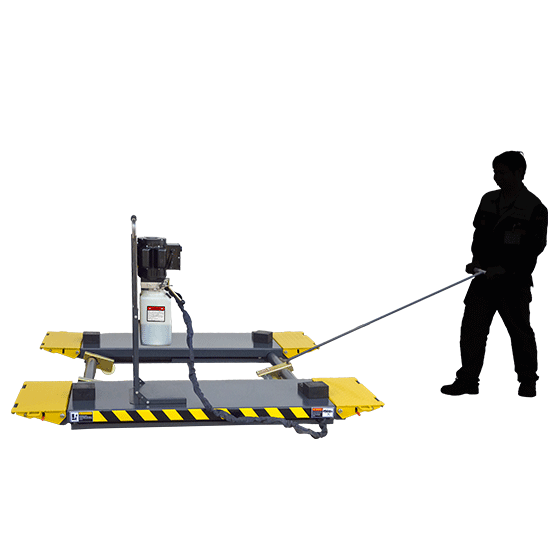

Portable design, can be easily moved to any service bay.

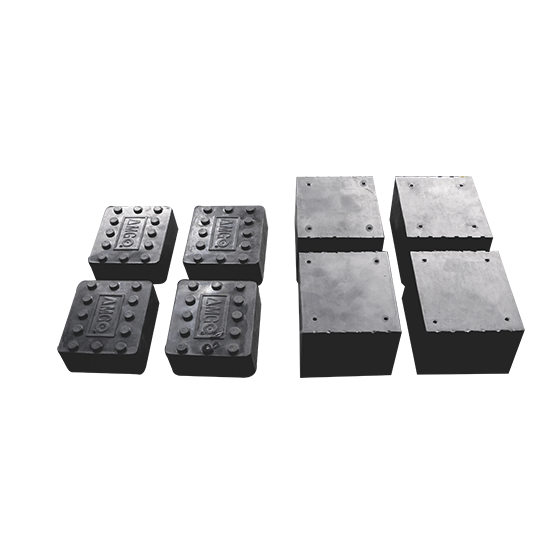

1 1/2" and 3" rubber pads come standard.
Shipping Information
1 units/package, packing measurement (LxWxH) : 27 3/4”x11 3/4"x12 5/8"

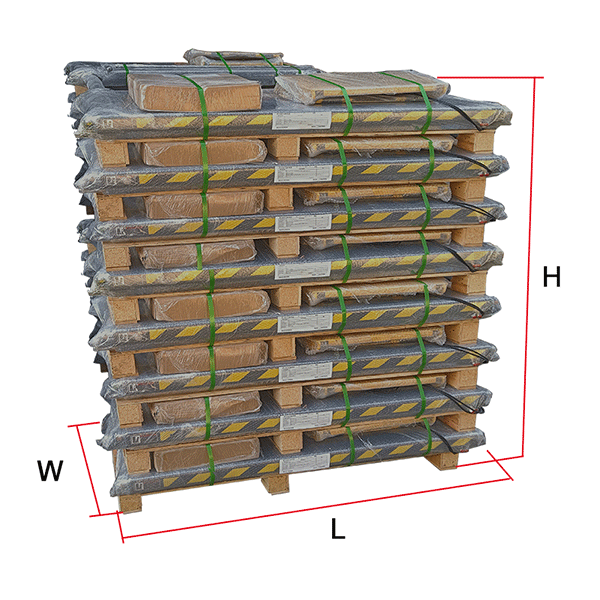

8 units/package, packing measurement (LxWxH) : 75 9/16" x 63 3/8" x 84 3/16"
