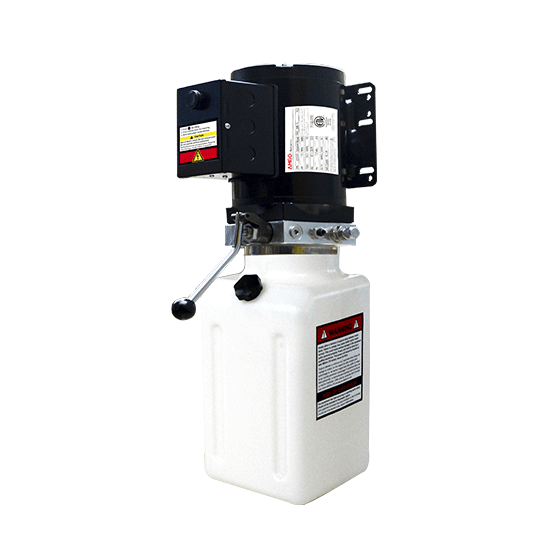

Model: 071104

220V/60HZ Single Phase Manual Power Unit

This compact 220V power unit delivers robust performance to efficiently drive single post lifts, parking and storage lifts, and a variety of other car lifts.

Compatiable with AMGO models:

407-P | 407-HP | 408-P | 408-HP | 408-HPX | SL-7 | SML-7 | SPL-6 | MR06 | MRP06 | LR06 | LR10 | MRL07

Contact Us Now

Click to download Product Manual

Categories: ,

Features

  • With ETL Certificate, 220V single-phase 60Hz AC;
  • Equipped with 6L high-density polyethylene oil tank;
  • Manual Detrol release valve;
  • High pressure gear pump with a displacement 2.1cc/r, the highest pressure up to 25MPa;
  • Plug-in design high-pressure relief valve, with a relief pressure set at 21MPa;
  • Adjustable reflux speed by throttle valve;
  • Longevity & easy maintenance
  • Oil outlet is provided on both sides

Specifications

Model: 071104 Specifications
Part No.071104
L23 3/16"
L19 5/16’"
L213 7/8"
Voltage220v Single Phase
Frequency60Hz
Power2.0HP
Pressure21MPa
Displace ment2.1cc/r
Tank6L
Oil Outlet3/8SAE

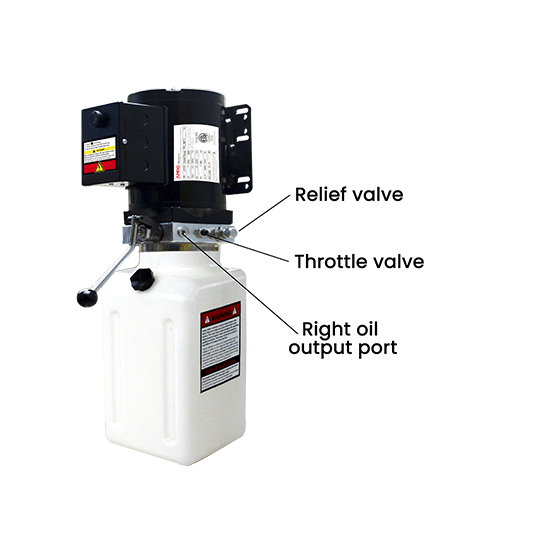

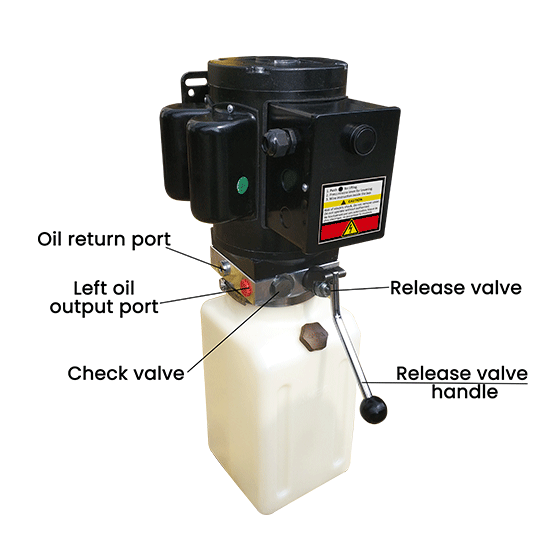

Detailed Image

Shipping Information

1 units/package, packing measurement (LxWxH) : 28 3/8”x12 3/16"x15 3/8”
