Features
• AMGO ETL certified power unit with power unit stand;
• AMGO’s patented design safety device: automatic activation lock with manual release;
• Non-skid diamond platform enhances the stability;
• Professional grade hydraulic cylinders use premium oil seals;
• Removable rear tire cover plate and tool tray come standard;
• Optional tie kits, lifting jack, and length/width extension kits are available.
Specifications
| Model | MC-1200 | |
|---|---|---|
| Lifting Capacity | 1,200 Ibs | |
| Lifting Time | 23s | |
| Max. Lifting Height | A | 42 15/16" |
| Max. Lock Height | 40 9/16" | |
| Minimum Height | 6 1/8" | |
| Overall Length (Inc. Ramp) | B | 106 5/16" |
| Runway Length | C | 88 9/16" |
| Overall Width | D | 29 1/2" |
| Gross Weight | 593 lbs | |
| Motor | 110V / 1.0HP |
Detailed Image
Adjustable wheel vise to accommodate various wheels. Two installation positions to fit for different wheelbases.

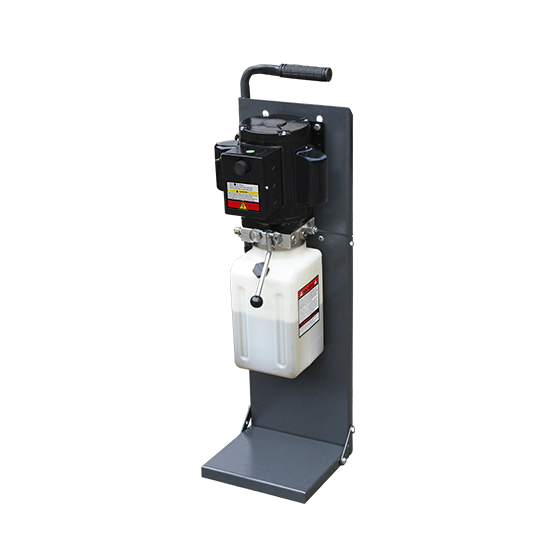

Exclusively designed detachable power unit stand with manual safety release device.
Removable rear cover plate for easy wheel replacement.
AMGO's patented design safety device: automatic activation lock with manual release.
Portable design, easily roll into any servicebay.
Optional width extension kit . Adds 23 5/8" in width on platform for three or four-wheel motorcycle. Kits No.: MC001
Optional length extension kits no.MC002, adds 15 3/4” in ength that suitable for long wheelbases.
Optional sliding jack MC005, lifting capacity: 500lbs.
Optional tie kits no.MC006.
Shipping Information
8 units/package, packing measurement (LxWxH) : 89 3/4"x29 7/8"x80 1/8"
1 units/package, packing measurement (LxWxH) : 27 3/4”x11 3/4"x12 5/8""
