Features
• 12,000lbs capacity for main scissor lift and 9,000lbs capacity for secondary scissor lift
• Synchronization cylinders system equipped with hose burst valves
• Safety stop device at the height of 11 3/4″, both control buttons are needed to lower the lift from 11 3/4″ to ground, with tone alarm for added safety
• Skid proof diamond runways and optional adjustable turnplate pockets
• Self-lubricating UHMW polyethylene sliders and bronze bushings
Specifications

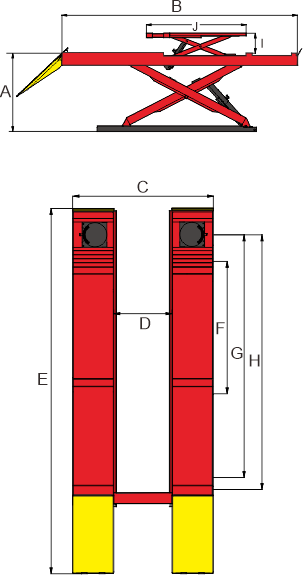

| Model | DX-12A | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 64s | |
| Max. Lifting Height | A | 72 13/16" |
| Max. Lock Height | 71 1/16" | |
| Minimum Height | 12 5/8" | |
| Runway Length | B | 196 1/2" |
| Overall Width | C | 86 1/4" |
| Width Between Runways | D | 37" |
| Overall Length (Inc. Ramps) | E | 256" |
| Min. Four Wheel Align | F | 85 13/16" |
| Max. Four Wheel Align | G | 166 9/16" |
| Max. Two Wheel Align | H | 172 7/8" |
| Lifting Capacity Of Sub Lift | 9,000 lbs | |
| Lifting Height Of Sub Lift | I | 16 1/2" |
| Runway Length Of Sub Lift | J | 63"~74" |
| Gross Weight | 5,745 lbs | |
| Motor | 2.0HP |
Detailed Image
Electro-air control system, mechanical safety locks.
ETL certified AMGO power unit.

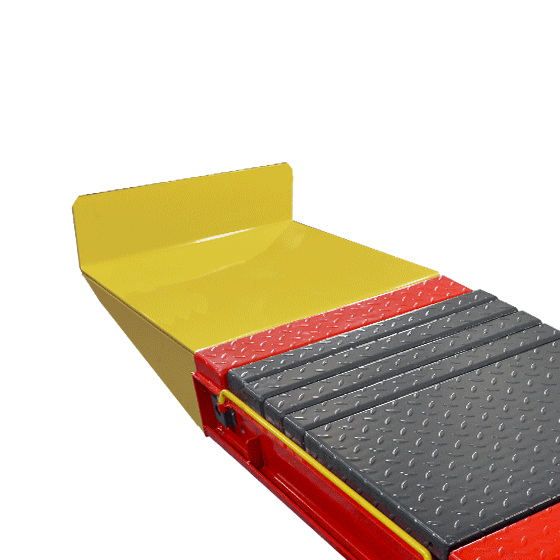

Extremely long and wide non-skid diamond platforms are capable of servicing varying wheelbase vehicles.

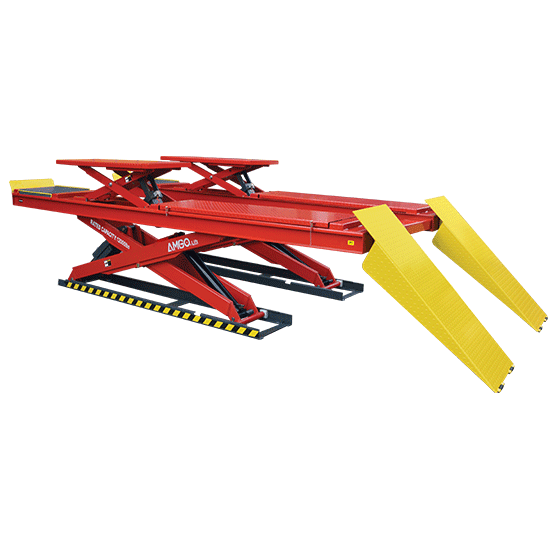

Heavy duty design with robust X sicissors made of large steel tubes to ensure strong capabilities under heavy workloads.

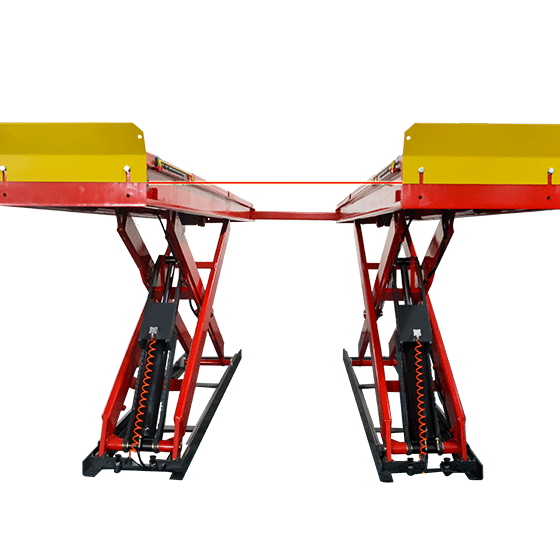

Equipped with photocell configuration as standard to ensure the equalization of both platforms.
New rear-slip ball sets.

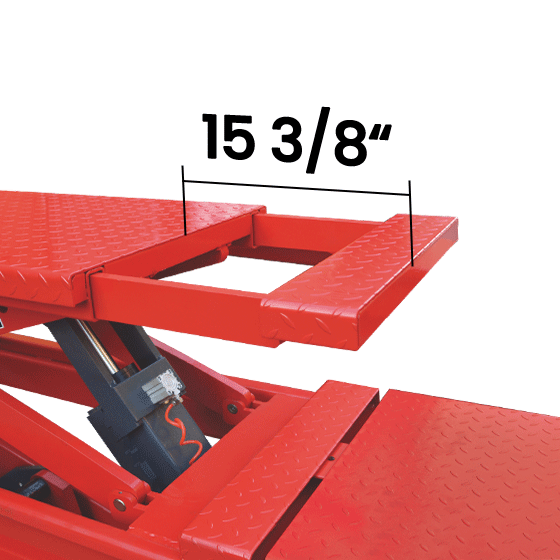

The built-in auxiliary scissors platform is extendable to accomodate various wheelbases.

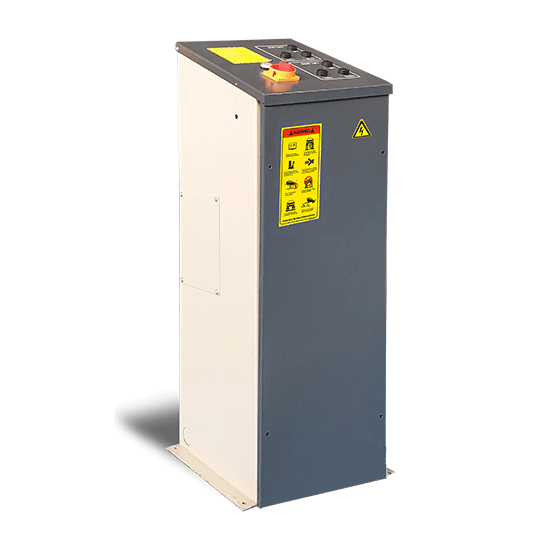

Electro-air control cabinet.
Optional: extension platform, kits no.: PX002
Optional air line kits (kits no.: PX004A)
Optional Turnplate each alignment liftneed one set (two pcs.) of turnplates Kits No.:40101
Optional RJ-8A sliding jack with pneumatic hydraulic, 2.5" and 5" extension adapters included. Capacity 8,000lbs.
Shipping Information
1 units/package, packing measurement (LxWxH): 201 1/8" x 29 7/8"x 39 3/4".
2 units/package, packing measurement (LxWxH) : 201 1/8" x 29 7/8"x 80".
Attention to forklift loading and unloading.
