Features
• Lifting capacity: 7,000lbs;
• Low profile on surface design, allows easy access for low-clearance vehicles;
• Full rise to 78 3/4″ height, allows confortable work underneatch the vehicle;
• 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms;
• Hydraulic cylinders built with hose burst valves for safety protection;
• Dual safety system features both automatic mechnical lock and hydralic lock;
• No need of extra air source;
• Automatic safety stop device at 11 13/16″ from gound;
• Electro control system, with control cabinet for enhanced safety.
Specifications

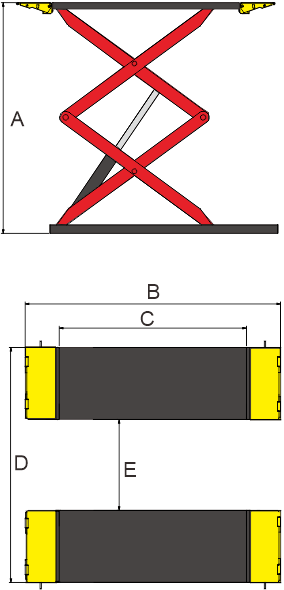

| Model | XL-7 | |
|---|---|---|
| Lifting Capacity | 7,000 Ibs | |
| Lifting Time | 50s | |
| Max. Lifting Height | A | 78 3/4" |
| Minimum Height | 4 5/8" | |

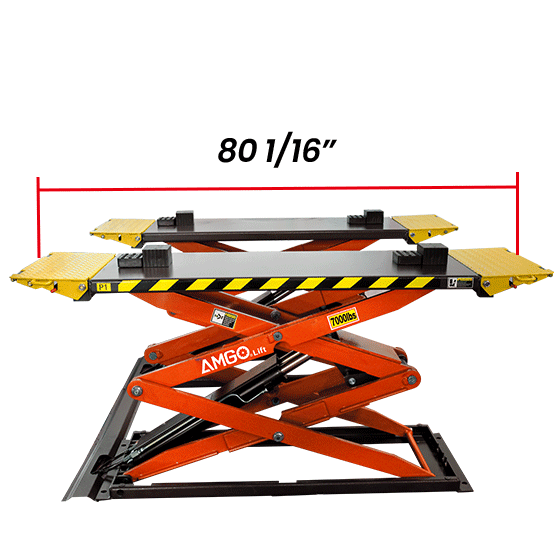

| Overall Length | B | 80" |
| Runway Length | C | 57 5/8" |
| Overall Width | D | 76 3/4" |
| Width Between Runways | E | 29 1/2" |
| Gross Weight | 2,006 lbs | |
| Motor | 2.0HP |
Detailed Image
Easy flip-lock ramps, can be used as extension platform.

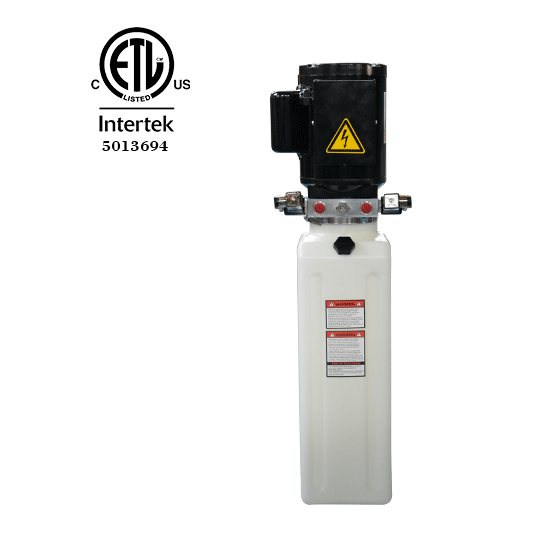

ETL certified AMGO power unit.

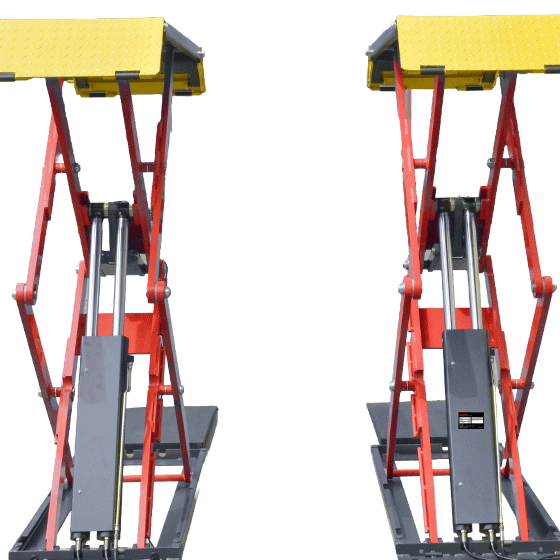

Dual groups of total 4 hydraulic cylinders ensure platforms equalization..

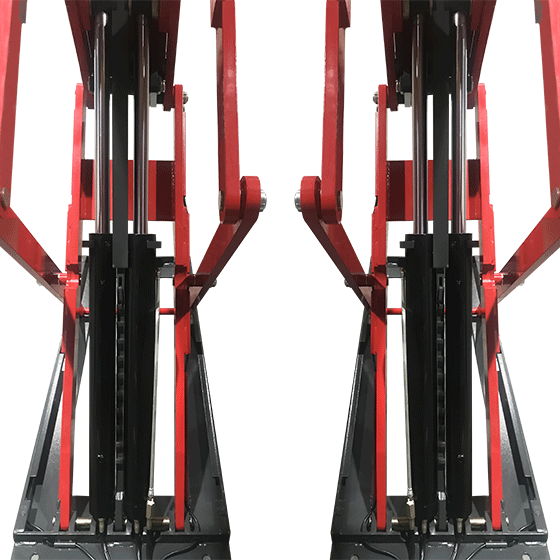

Feature both automatic mechnical lock and hydraulic lock.

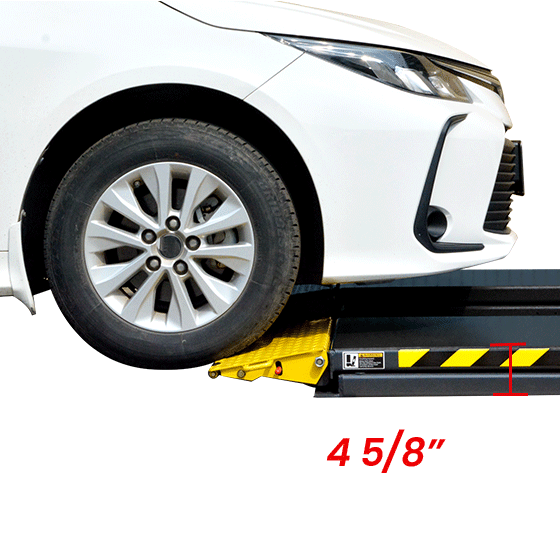

Low profile on surface design, allows easy access for low-clearance vehicles.

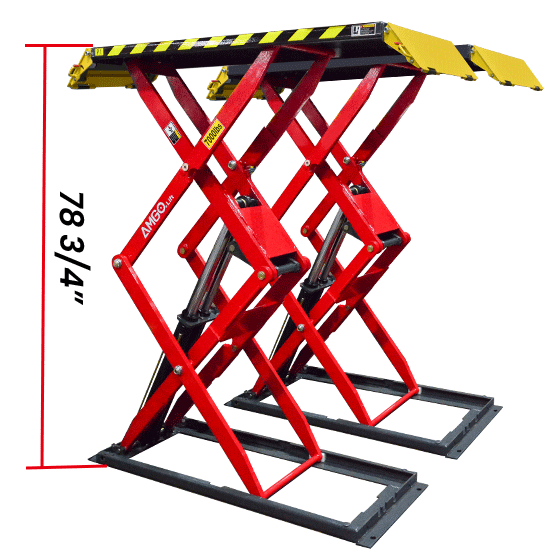

Full rise design, allows confortable work underneatch the vehicle;

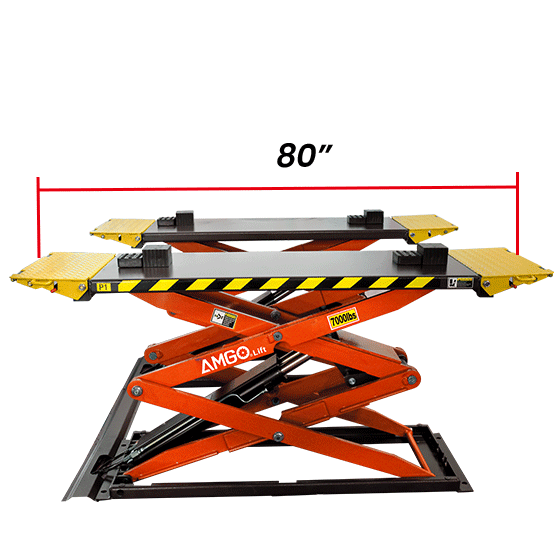

Extendable platforms accommodate various wheel base vehicles.

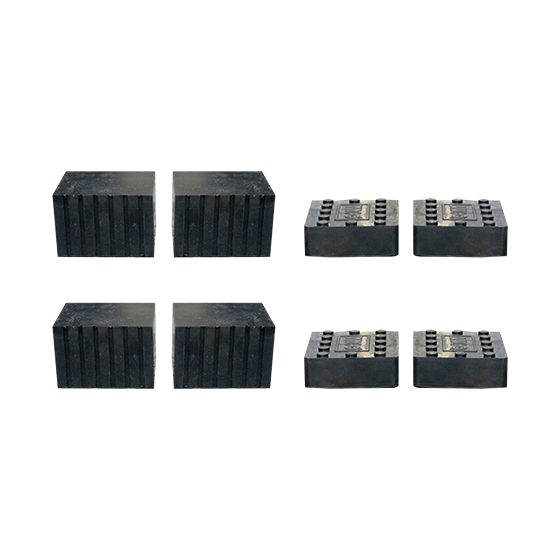

Both 1 1/2" and 3" rubber pads come standard.

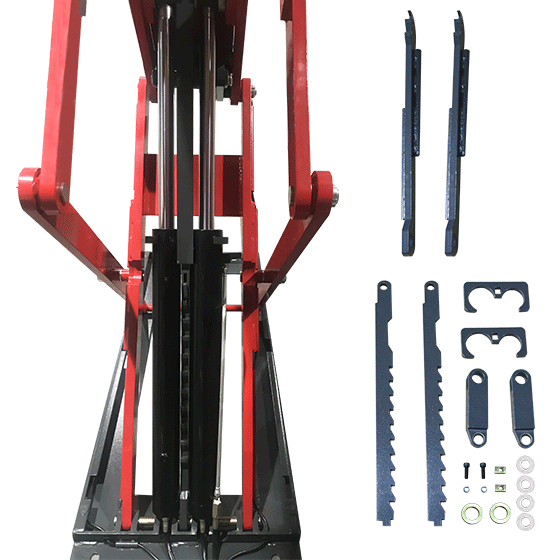

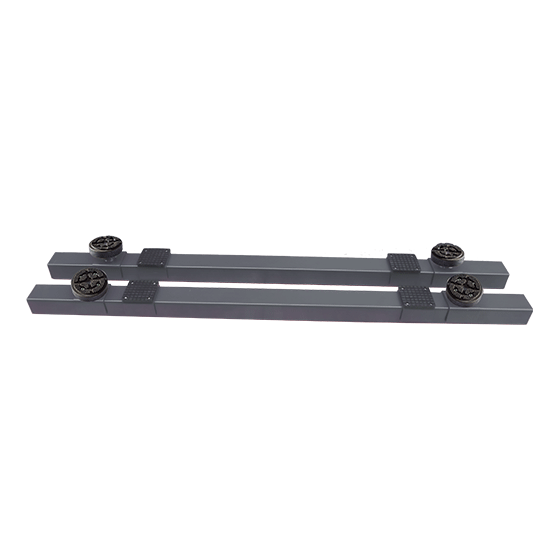

Optional: Leveling bar. Kits No.: SX003
Shipping Information

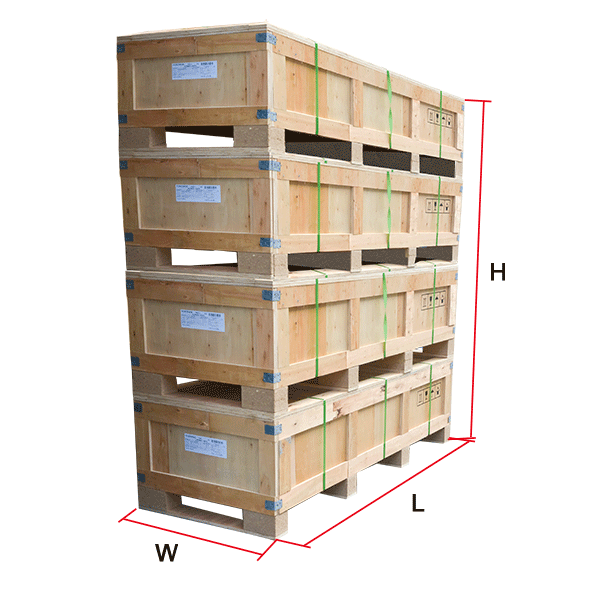

4 units/package, packing measurement (LxWxH) : 66 15/16" x 27 9/16" x 77 3/16"
Attention to forklift loading and unloading
