Features
• 12,000 lbs capacity, extremely wide design with a width over 118″ between columns;
• AMGO ETL certified power unit comes as standard;
• Mechanical self-locking safety device with air-driven lock release;
• Primary multiple safety locks and cable-slack protection system come standard;
• Cable-driven, utilizing aircraft standard high quality cables;
• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve;
• Non-skid diamond platforms;
• Stepless adjustable width between platforms;
• Integrated slip plates and adjustable turnplate pockets.
Specifications
| Model | Pro-12ASX | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 45s | |
| Overall Length (Inc Ramps) | A | 232 5/8" |
| Runway Length | B | 182 11/16" |
| Overall Width | C | 132 1/8" |
| Width Between Columns | D | 118 1/8" |
| Max. Lifting Height | E | 76 3/8" |
| Max. Lock Height to top of runway | 73 1/4" | |
| Overall Height | F | 86" |
| Minimum Height | G | 8 11/16" |
| Max. Underneath Height | H | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" | |
| Drive-Thru Clearance | I | 104 3/16" |
| Width Between Runways | J | 43 5/16" Min. 35 7/16" Max. 53 3/4" |
| Outside Edge of Runways | K | 83 5/16" Min. 75 7/16" Max. 93 3/4" |
| Min. Four Wheel Align | L | 81 3/4" |
| Max. Four Wheel Align | M | 159 7/16" |
| Max. Two Wheel Align | N | 160 3/4" |
| Gross Weight | 2,773 lbs | |
| Motor | 2.0HP |
Detailed Image
Oil-water separator and solenoid air valve are installed on the power side column.
ETL certified AMGO power unit.
Primary multiple safety locks and cable-slack protection system come standard.
Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.

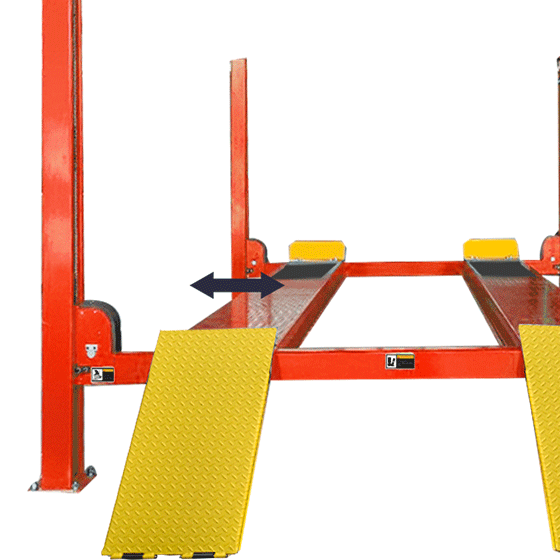

Stepless adjustable width between platforms.

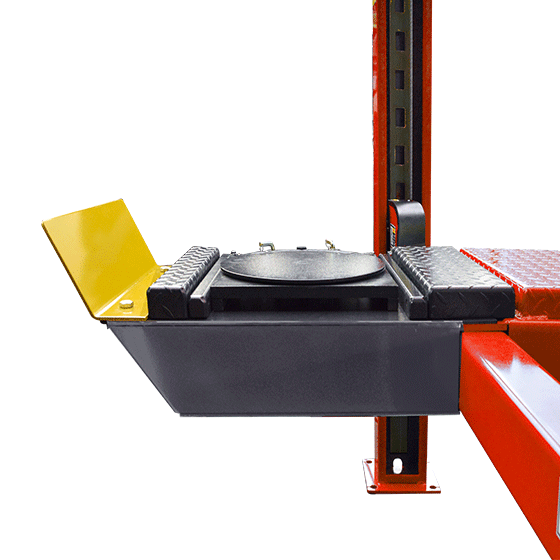

Adjustable turnplate blocks to fit various wheel bases vehicles.

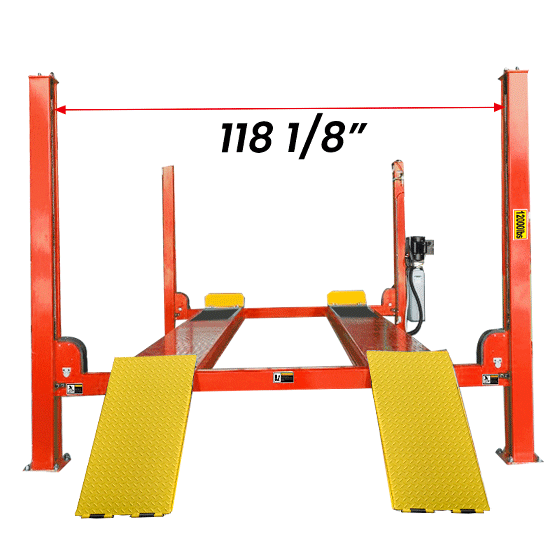

Extreme width between columns: 118 1/8"
Optional extension platform adds 26" in lenght to the platform. Kits No.:41203
Optional Turnplate, each alignment lift need two units. Kits No.: 40101

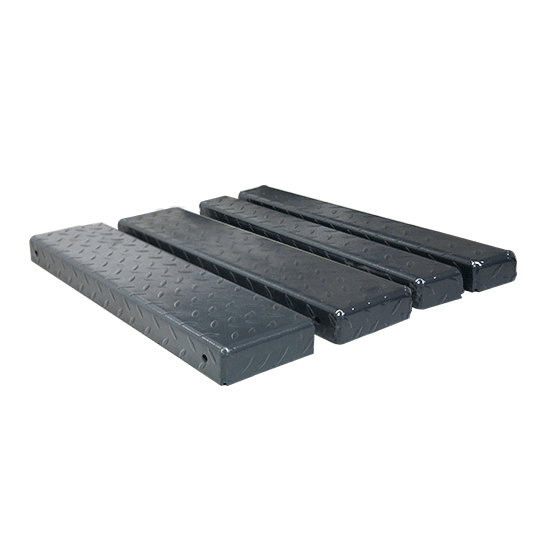

Optional adjustable blocks used with platform extension kit (40903), Kits No.40905
Optional Air line kits All AMGO four post lifts are designed to use the air line kits for rolling jack. Kits No.:40102A
Optional Rolling Jacks RJ-6H: manual hydraulic type,6,000lbs capacity. RJ-6A: pneumatic hydraulic type,6,000lbs capacity.
Shipping Information
1 units/package, packing measurement (LxWxH) : 199 5/8"x22 1/16"x28 1/2", Packed with power unit.
3 units/package, packing measurement (LxWxH) : 199 5/8"x22 1/1x84 7/16"
