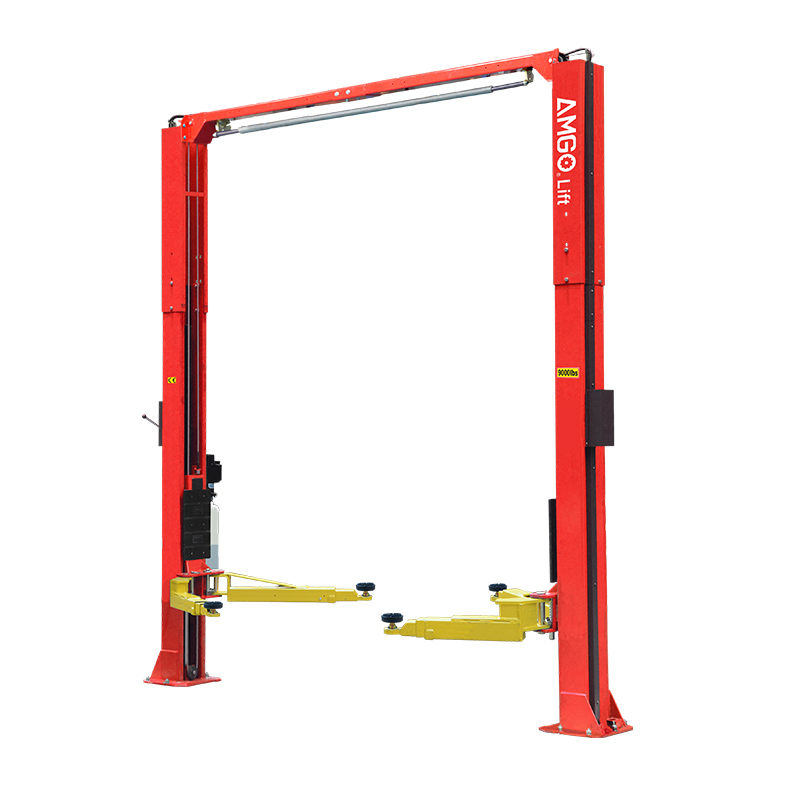

Features
- Lifting capacity: 9,000 lbs;
- Dual hydraulic direct-drived cylinders made on high standard;
- The
arms allow symmetrical or asymmetrical loading, ensuring adequate door clearance ; - Single-point manual safety lock release, simultaneously unlocks both columns from one side;
- Clear-floor design provides an unobstructed floor use;
- Overhead safety shut-off device for maximum vehicle protection;
- Two standard height settings accommodate varying ceiling heights;
- Self-lubricating UHMW polyethylene sliders
- Automatic arms restraint;
- Areo sync cables come standard;
- Comes with detachable toe guard and tool tray;
- Standard double-screw rubber pad ( pin dia 2″ ) with 3″ extension adapters.

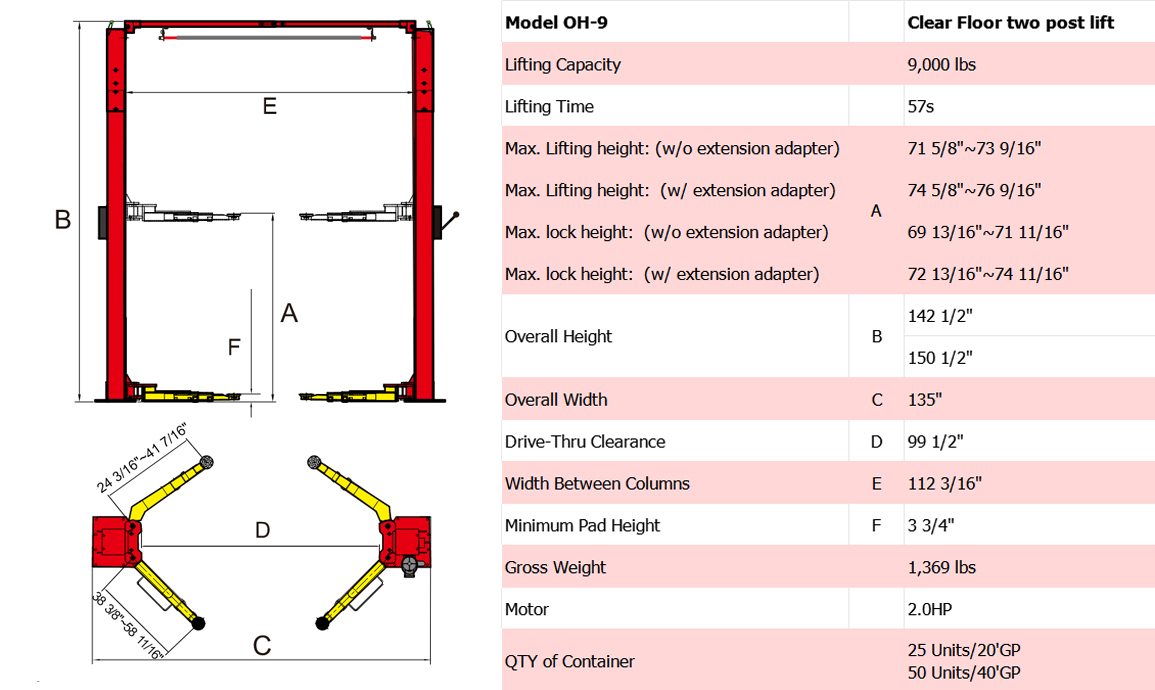

Specifications
| Model OH-9 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 57s | |
| Max. Lifting height: (w/o extension adapter) | A | 71 7/16"~73 3/8" |
| Max. Lifting height: (w/ extension adapter) | 74 7/16"~76 5/16" | |
| Max. lock height: (w/o extension adapter) | 69 5/8″~71 1/2" | |
| Max. lock height: (w/ extension adapter) | 72 5/8"~74 1/2" | |
| Overall Height | B | 143 1/8" (151") |
| Overall Width | C | 135” |
| Drive-Thru Clearance | D | 99 1/2" |
| Width Between Columns | E | 112 3/16" |
| Minimum Pad Height | F | 3 9/16" |
| Gross Weight | 1,493 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 25 Units/20'GP |

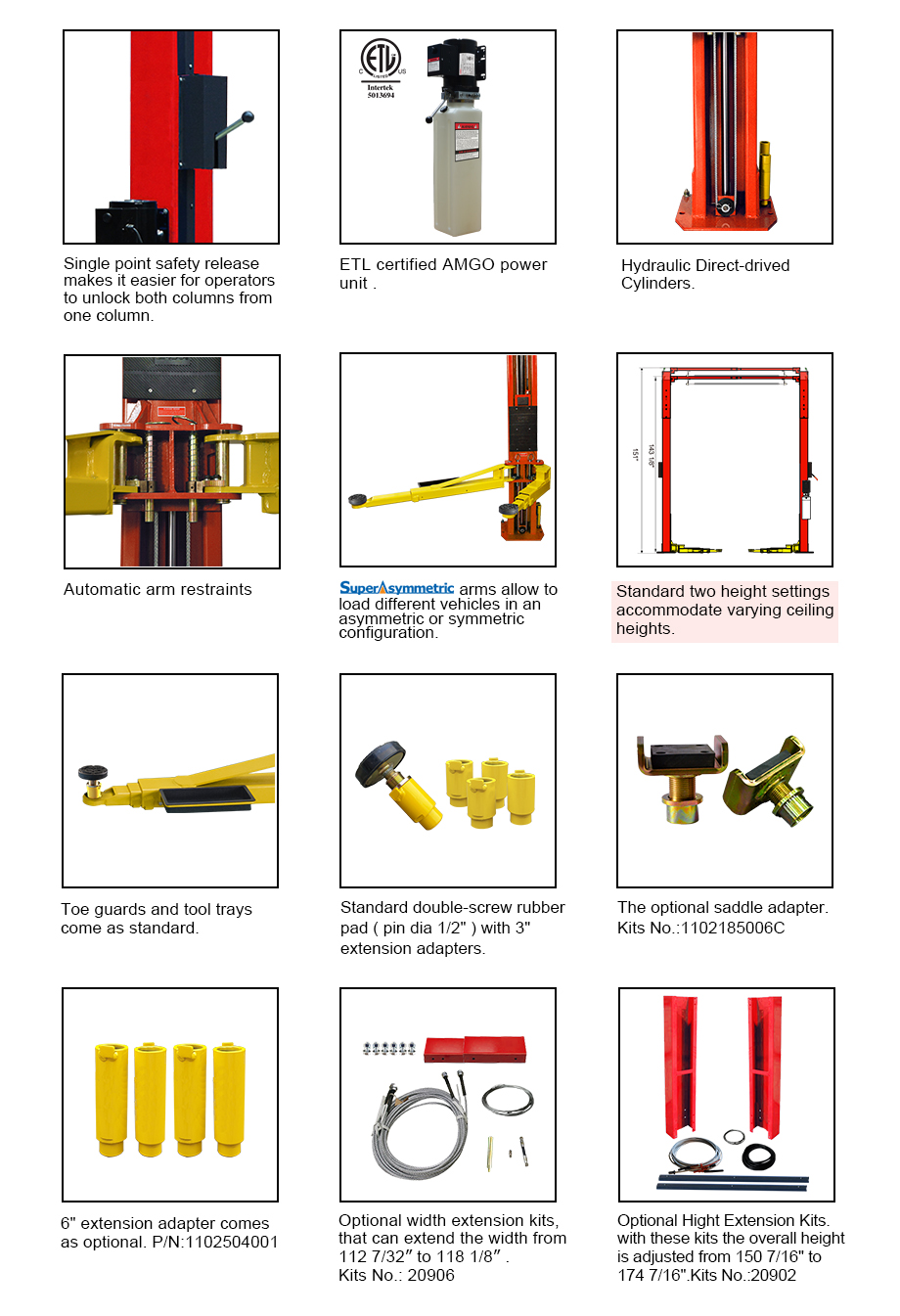

Detailed Image
Single point safety release makes it easier for operators to unlock both columns from one column.
ETL certified AMGO power unit.
Hydraulic direct-drived cylinders.
Automatic arm restraints.
Super asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.

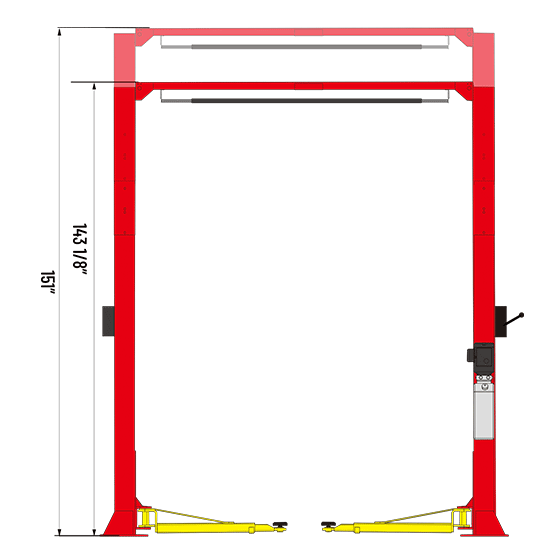

Two standard height settings .
Toe guards and tool trays come standard.
Standard double-screw rubber pad (pin dia 2") with 3" extension adapters.
The optional saddle adapter. Kits No.: 21108
6" extension adapter comes as optional. P/N: 1102504001-01
Optional width extension kits, that can extend the width from 112 3/16" to 118 1/8". Kits No.: 20906
Optional Height Extension Kits. With these kits the overall height is adjusted from 150 7/16" to 174 7/16". Kits No.: 20902
Shipping Information
2 units/package, packing measurement (LxWxH) : 114 9/16" x 17 3/4" x 60 7/16" (Packed with power unit)
3 units/package, packing measurement (LxWxH) : 114 9/16" x 17 3/4" x 89 3/8" (Packed with power unit)
