Features
- Lifting capacity: 15,000 lbs;
- Dual hydraulic direct-drived cylinders made on high standard;
- 4 two-stage sturdy arms are capable to lift trucks with different wheel bases;
- Single-point manual safety lock release, simultaneously unlocks both columns from one side;
- Clear-floor design, provide unobstructed floor use;
- Overhead safety shut-off device prevents vehicle damage;
- Exclusive: adjustable three height setting accommodates varying service ceiling heights;
- Self-lubricating UHMW polyethylene sliders
- Automatic arms restraint;
- Areo sync cables come standard;
- Comes with detachable toe guard and tool tray;
- Both heavy-duty single-screw rubber pad and saddle adapter come as standard;
- Both 3” and 6” extension adapters come as standard.

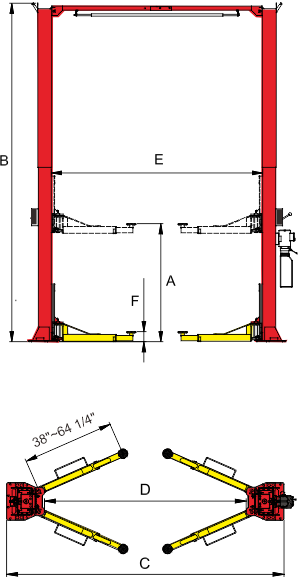

Specifications
| Model OH-15 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 15,000 Ibs | |
| Lifting Time | 84s | |
| Max. Lifting height: (w/o extension adapter) | A | 74 7/8"~76 1/4" |
| Max. Lifting height: (w/ extension adapter) | 83 7/8"~85 1/4" | |
| Max. lock height: (w/o extension adapter) | 72 15/16″~74 1/4" | |
| Max. lock height: (w/ extension adapter) | 81 15/16"~83 1/4" | |
| Overall Height: (low setting) | B | 174" |
| Overall Height: (medium setting) | 186" | |
| Overall Height: (high setting) | 198" | |
| Overall Width | C | 150 3/4" |
| Drive-Thru Clearance | D | 109 3/4" |
| Width Between Columns | E | 123 1/2" |
| Minimum Pad Height | F | 6 7/8" |
| Gross Weight | 2,423 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 16 Units/20'GP |
Detailed Image
Single point safety release makes it easier for operators to unlock both columns from one column.
ETL certified AMGO power unit.
Hydraulic direct-drived cylinders.

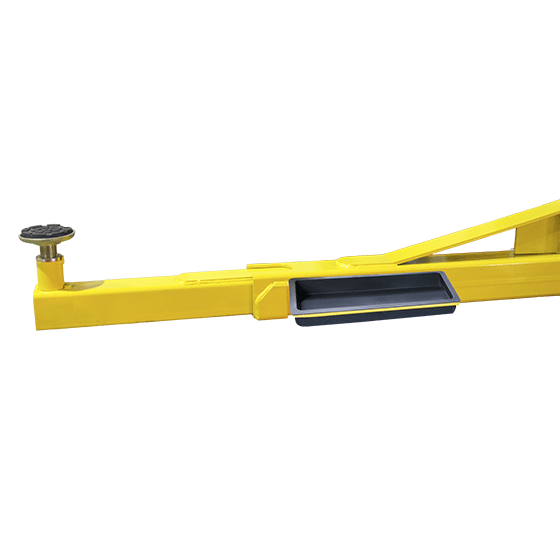

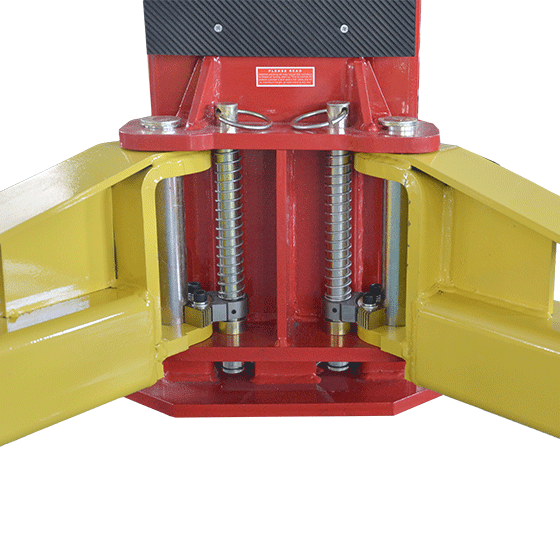

Automatic arm restraints.
Standard heavy-duty 2-stage arms (P/N of Lifting arm assy. :10217165-03).
Standard includes both heavy-duty single screw rubber pad and saddle adapter.
Standard includes both 3" and 6" extension adapters
Optional base extension kits. Kits no. 21501.
Shipping Information
2 units/package, packing measurement (LxWxH) : 113 3/4" x 21 1/4" x 80 3/4" (Packed with power unit)
