Features
- Lifting capacity: 12,000 lbs;
- Dual hydraulic direct-drived cylinders made on high standard;
- 4 three-stage arm design allows to lift vehicles from short to long wheel base;
- Single-point manual safety lock release, simultaneously unlocks both columns from one side;
- Clear-floor design provides an unobstructed floor use;
- Overhead safety shut-off device for maximum vehicle production;
- Exclusive: adjustable three height setting accommodates varying service ceiling heights;
- Self-lubricating UHMW polyethylene sliders
- Automatic arms restraint;
- Areo sync cables come as standard;
- Comes with detachable toe guard and tool tray;
- Both heavy-duty single-screw rubber pad and saddle adapter come as standard;
- Both 3” and 6” extension adapters come as standard.

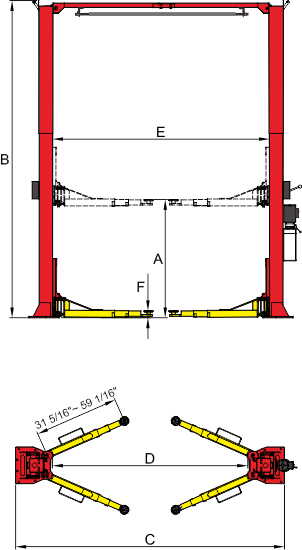

Specifications

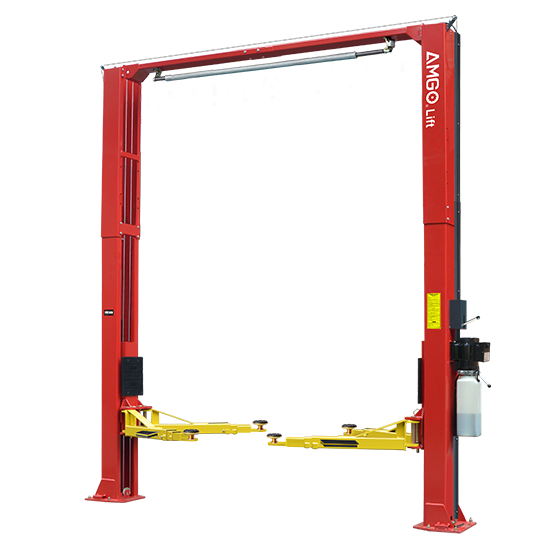

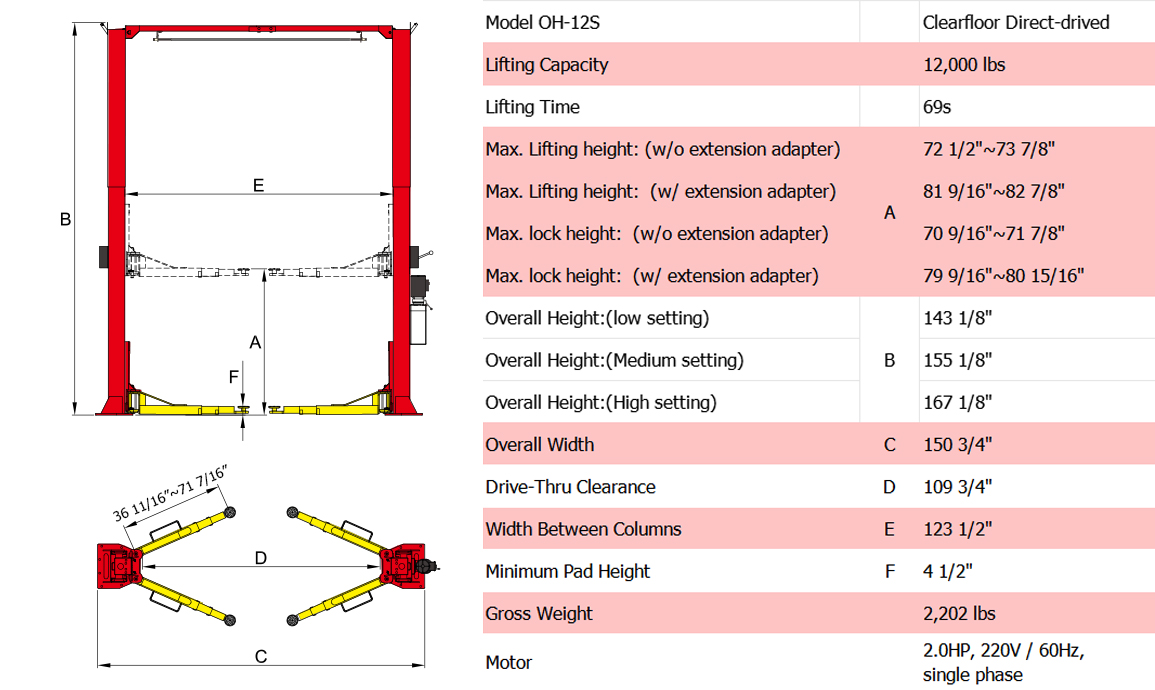

| Model OH-12 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 69s | |
| Max. Lifting height: (w/o extension adapter) | A | 72 1/2"~73 7/8" |
| Max. Lifting height: (w/ extension adapter) | 81 9/16"~82 7/8" | |
| Max. lock height: (w/o extension adapter) | 70 9/16″~71 7/8" | |
| Max. lock height: (w/ extension adapter) | 79 9/16"~80 15/16" | |
| Overall Height: (low setting) | B | 174" |
| Overall Height: (medium setting) | 186" | |
| Overall Height: (high setting) | 198" | |
| Overall Width | C | 150 3/4" |
| Drive-Thru Clearance | D | 109 3/4" |
| Width Between Columns | E | 123 1/2" |
| Minimum Pad Height | F | 4 1/2" |
| Gross Weight | 2,436 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 14 Units/20'GP |
Detailed Image

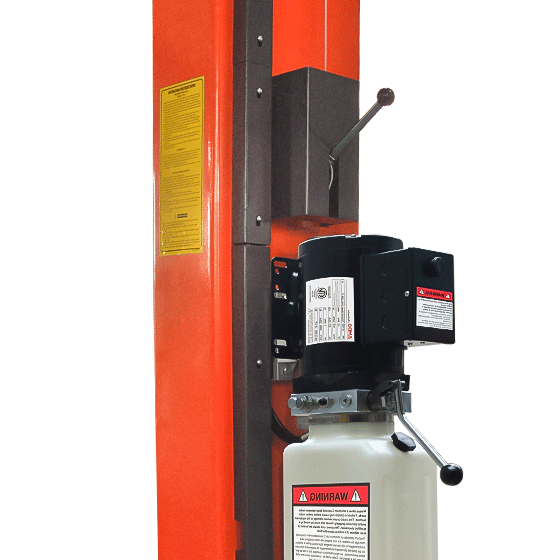

Single point safety release makes it easier for operators to unlock both columns from one column.

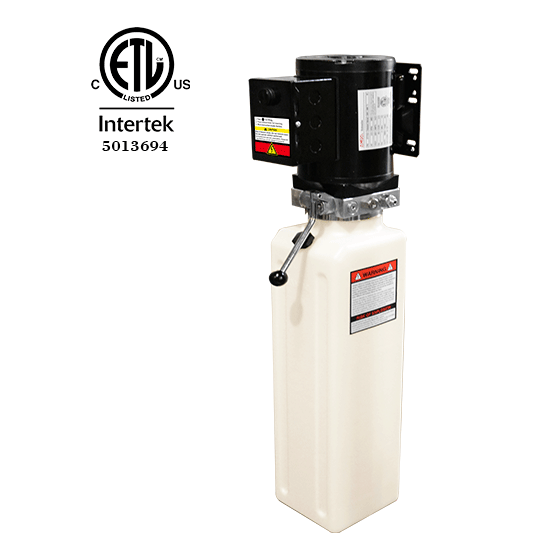

ETL certified AMGO power unit.
Hydraulic direct-drived cylinders.

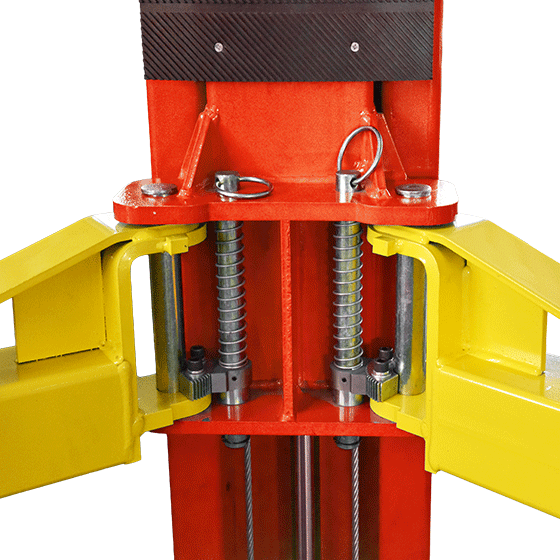

Automatic arm restraints.
Standard heavy-duty 3-stage arms (P/N of Lifting arm assy. :1102854001C-01).

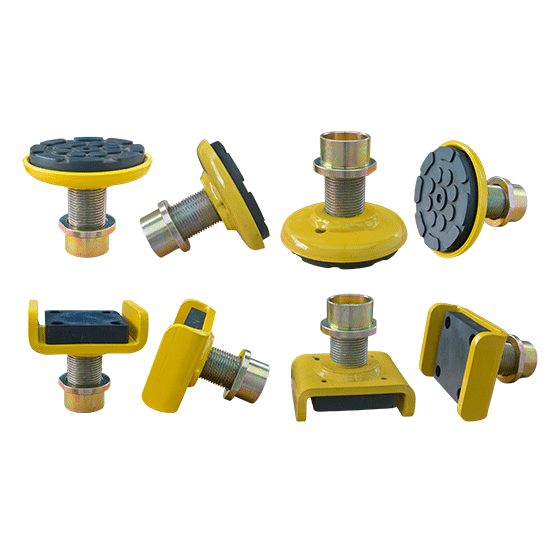

Standard includes both heavy-duty single screw rubber pad and saddle adapter.

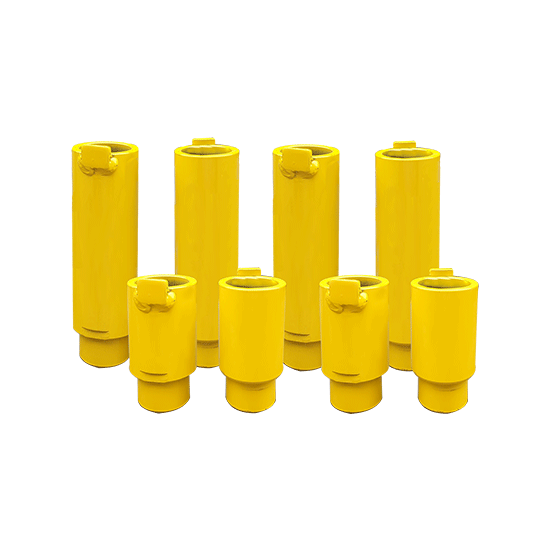

Standard includes both 3" and 6" extension adapters
Optional heavy duty extreme wide saddle adapter. Kits No. 21109

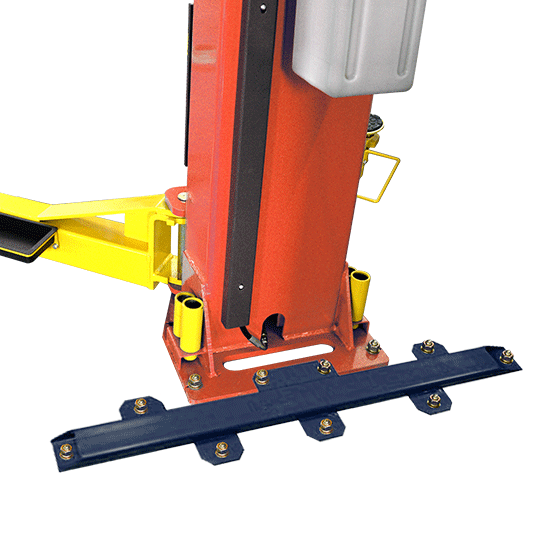

Optional base extension kits. Kits no. 21501.

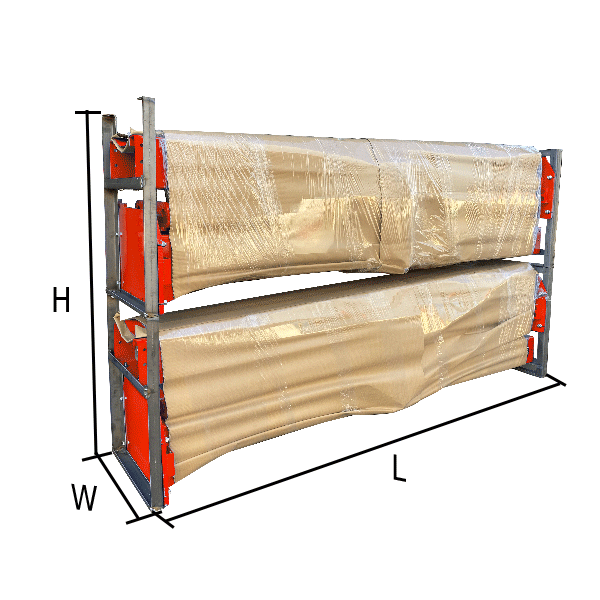

Shipping Information
2 units/package, packing measurement (LxWxH) : 113 3/4" x 21 1/4" x 80 3/4" (Packed with power unit)
