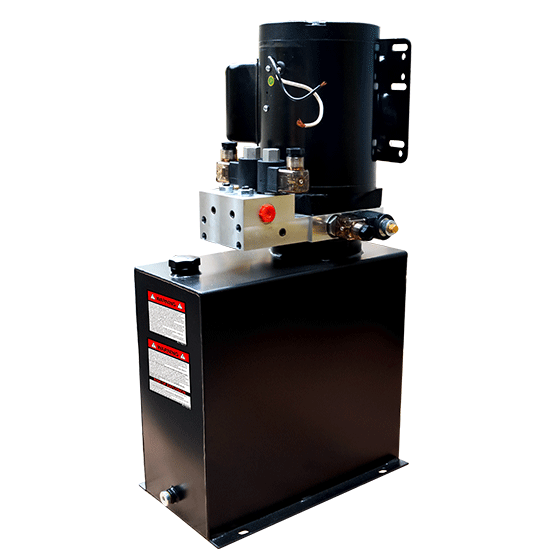

Model: 071205

220V/60HZ Single Phase Electric Power Unit

In strict compliance with the modernized AMGO design princinple, the Model 071205 adopts a plug-in architecture. Its integration of an electromagnetic release valve and dual two-way check solenoid valves ensures reliable, high-performance operation for heavy-duty double-scissor lifts.

Compatible AMGO models:

DX-12A

Contact Us Now

Click to download Product Manual

Categories: ,

Features

  • With ETL Certificate, 220V single-phase 60Hz AC;
  • 17L Steel oil tank;
  • Electromagnetic release valve control descent;
  • High pressure gear pump with a displacement 2.1cc/r, the highest pressure up to 25MPa;
  • Plug-in design high-pressure relief valve, with a relief pressure set at 25MPa;
  • Adjustable reflux speed by throttle valve;
  • Longevity & easy maintenance
  • Oil outlet is provided on both sides

Specifications

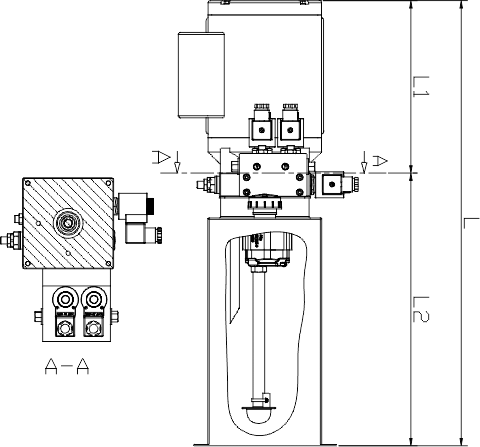

Model: 071205 Specifications
Part No.071205
L24 7/16"
L19 5/16"
L215 1/8"
Voltage220v Single Phase
Frequency60Hz
Power2.0HP
Pressure25MPa
Displace ment2.1cc/r
Tank17L
Oil Outlet3/8SAE

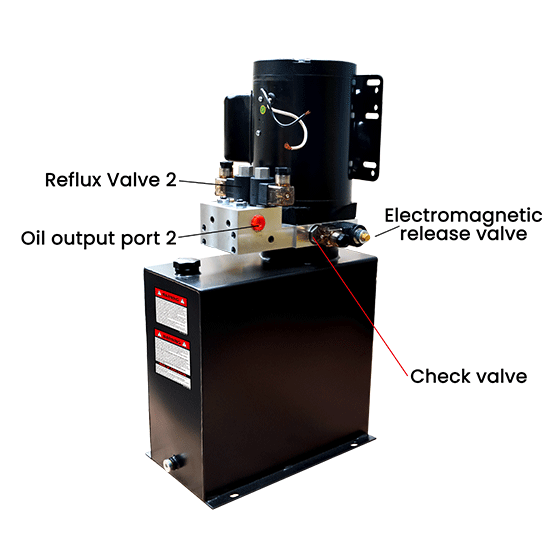

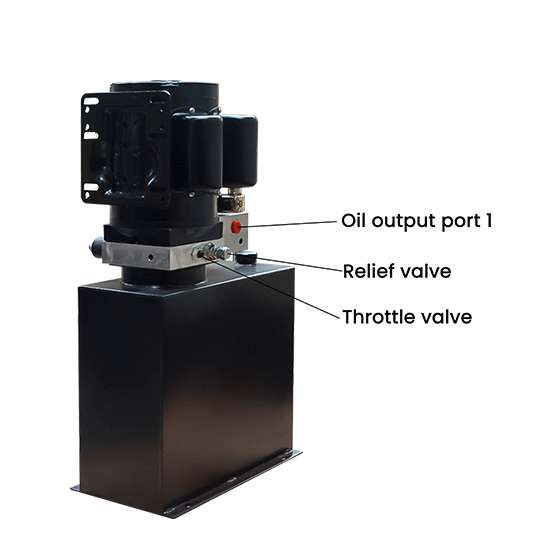

Detailed Image

Shipping Information

1 units/package, packing measurement (LxWxH) : 39 3/4"x12 3/16"x15 3/8"
