Features
- With ETL Certificate, 220V single-phase 60Hz AC;
- Equipped with 11L high-density polyethylene oil tank;
- Electromagnetic release valve control descent;
- High pressure gear pump with a displacement 2.1cc/r, the highest pressure up to 25MPa;
- Plug-in design high-pressure relief valve, with a relief pressure set at 25MPa;
- Adjustable reflux speed by throttle valve;
- Longevity & easy maintenance
- Oil outlet is provided on both sides
Specifications

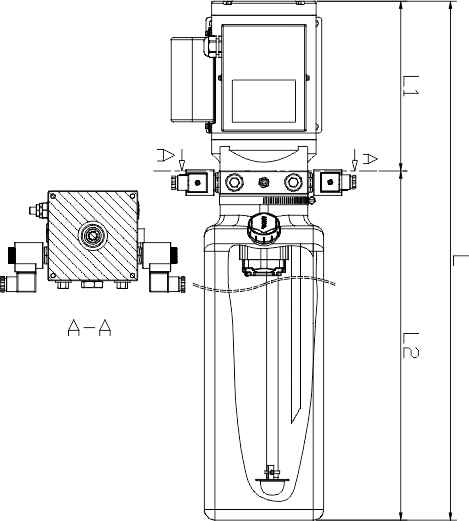

| Part No. | 071203 |
|---|---|
| L | 31 7/16" |
| L1 | 9 5/16" |
| L2 | 22 3/16" |
| Voltage | 220v Single Phase |
| Frequency | 60Hz |
| Power | 2.0HP |
| Pressure | 25MPa |
| Displace ment | 2.1cc/r |
| Tank | 11L |
| Oil Outlet | 3/8SAE |

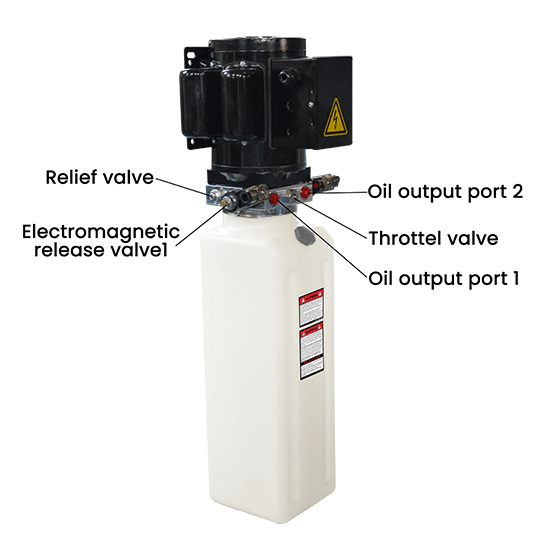

Detailed Image
