Model: 071201

220V/60HZ Single Phase Electric Power Unit

Equipped with an electromagnetic release valve, this 220V unit is designed for safe, stable, and user-comfortable operation.

Compatible with AMGO models:

XL-8F | XL-10F | XL-9X

Contact Us Now

Click to download Product Manual

Categories: ,

Features

  • With ETL Certificate, 220V single-phase 60Hz AC;
  • Equipped with 11L high-density polyethylene oil tank;
  • Electromagnetic release valve control descent;
  • High pressure gear pump with a displacement 2.1cc/r, the highest pressure up to 25MPa;
  • Plug-in design high-pressure relief valve, with a relief pressure set at 21MPa;
  • Adjustable reflux speed by throttle valve;
  • Longevity & easy maintenance
  • Oil outlet is provided on both sides

Specifications

Model: 071201 Specifications
Part No.071201
L31 7/16"
L19 5/16"
L222 3/16"
Voltage220v Single Phase
Frequency60Hz
Power2.0HP
Pressure21MPa
Displace ment2.1cc/r
Tank11L
Oil Outlet3/8SAE

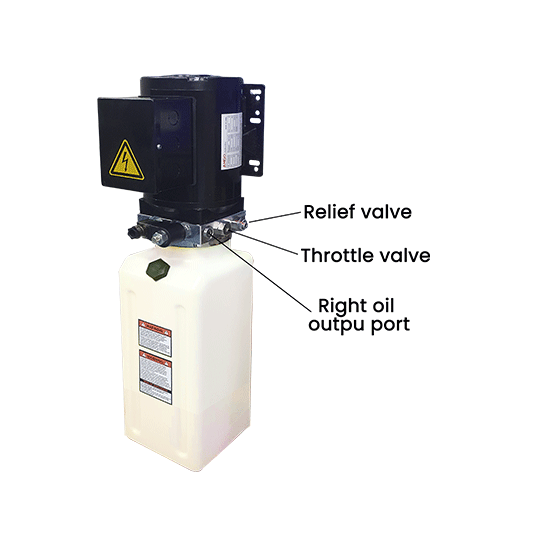

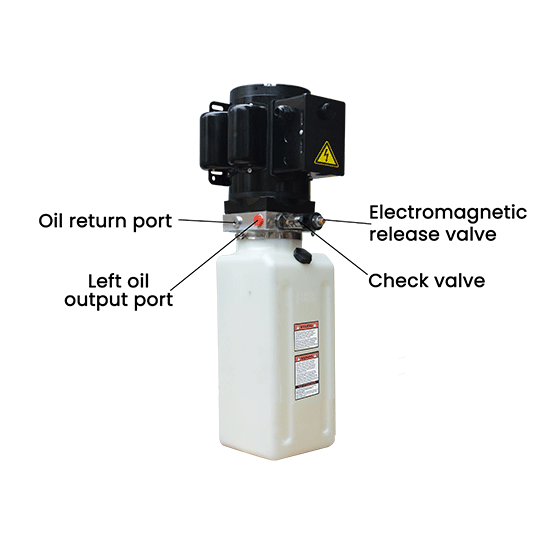

Detailed Image

Shipping Information

1 units/package, packing measurement (LxWxH) : 36 5/8’’x12 3/16’’x15 3/8’’
