Features
- Lifting capacity: 6,000lbs;
- Portable, newly designed dolly for easy maneuverability;
- Rugged platform and hard-rubber lifting pad ensure stable and quick lifting;
- Dual-approach ramps for maximum space efficiency;
- Mechanical locks with multiple lock points, and an automatic gravitational lock-release mechanism;
- 1-1/2″ Rubber pads come standard;
- Portable design, can easily moved to the service bay.

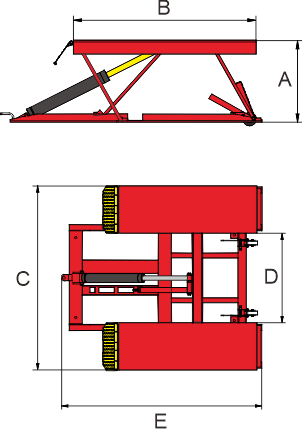

Specifications

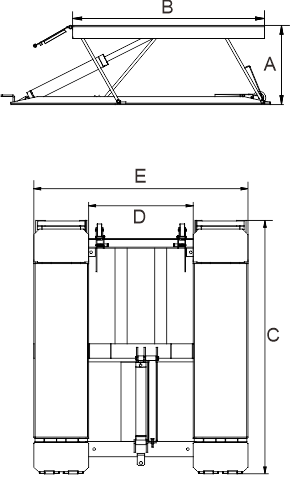

| Model | LR06 | |
|---|---|---|
| Lifting Capacity | 6,000 Ibs | |
| Lifting Time | 56s | |
| Max. Lifting Height | A | 24 3/16" |

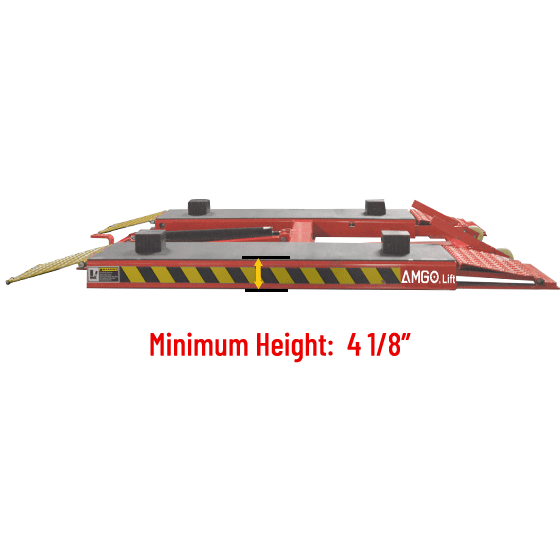

| Minimum Height | 4 1/8" | |
| Overall Length (not incl. Ramps) | B | 57 3/16" |
| Overall Length (incl. Ramps) | C | 84 1/16" |
| Width between runways | D | 34 3/16" |
| Outside edge of runways | E | 70 1/16" |
| Gross Weight | 827 lbs | |
| Motor | 110V/1.0HP |
Detailed Image

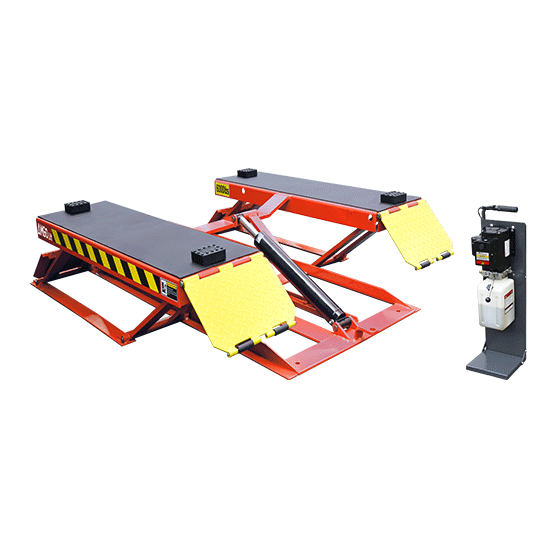

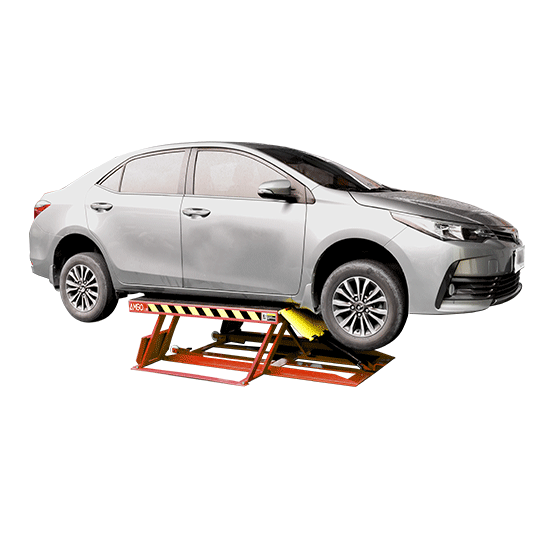

Versatile low-profile platform handles everything from standard cars to low-clearance vehicles

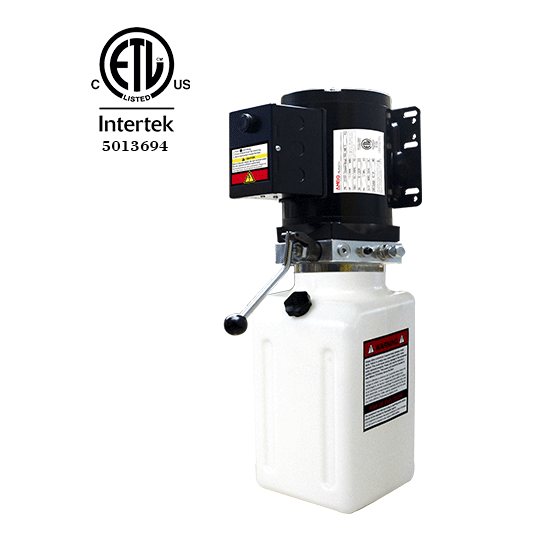

ETL certified AMGO power unit.
Mechanical locks with multiple lock points, and an automatic gravitational lock-release mechanism.

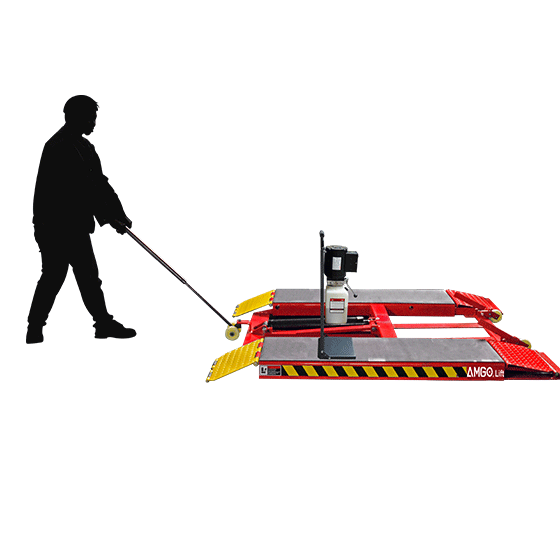

Portable design, can easily moved to the service bay.

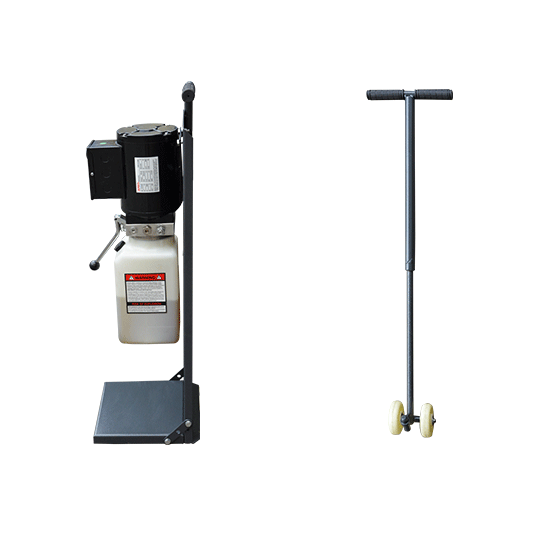

Exclusively-designed detachable power unit stand and telescoping dolly.
1-1/2" Rubber pads come standard.

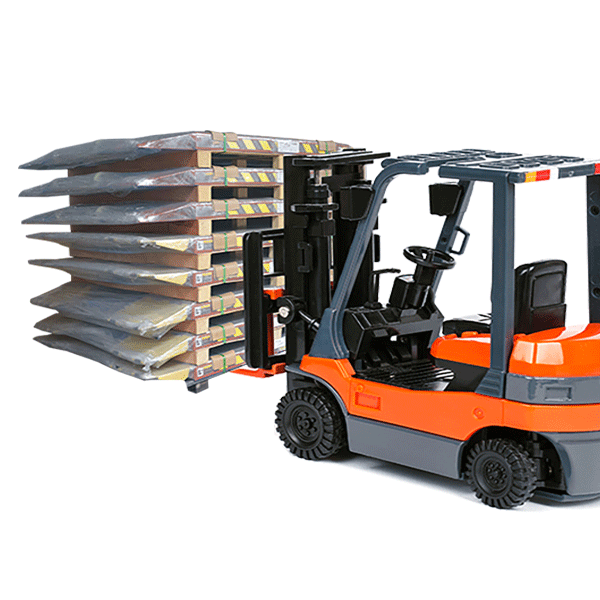

Shipping Information

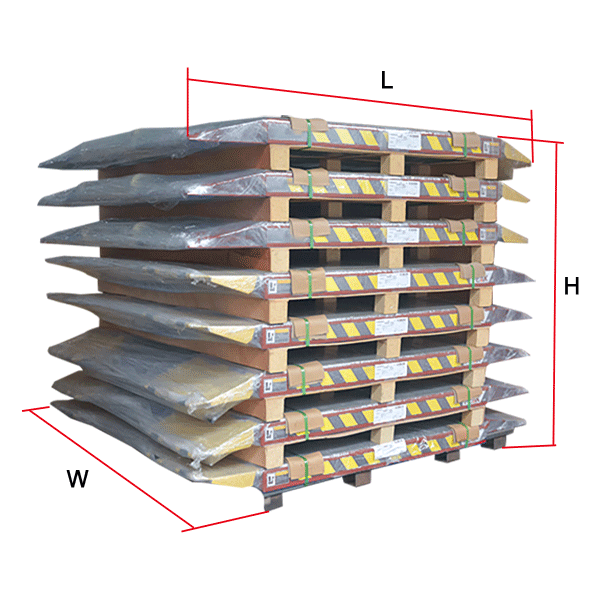

8 units/package, packing measurement (LxWxH) : 84 7/16”x70 7/8"x69 5/16"
1 units/package, packing measurement (LxWxH) : 27 3/4”x11 3/4"x12 5/8""
