Features
- Lifting capacity: 10,000 lbs;
- Commercial grade with enhanced structure, designed for professional workshops and home garages;
- Symmetric four 3-stage retractable arms are suitable for more vehicles;
- Automatic arms restraint;
- Single-point manual safety lock release, simultaneously unlock both columns from one side;
- Dual-safety lock structure ensures additional safety;
- Self-lubricating UHMW polyethylene sliders;
- Areo sync cables come as standard;
- Comes with detachable toe guard and tool tray;
- Standard double-screw rubber pad ( pin dia 2″ ) with 3″ extension adapters.

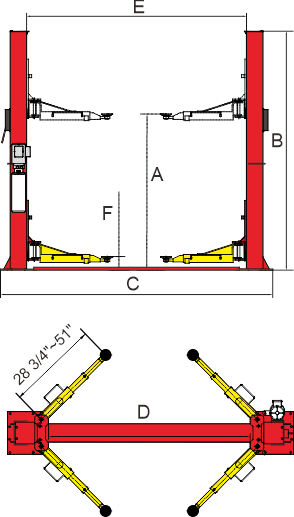

Specifications
| Model BP-10 | Base plate two post lift | |
|---|---|---|
| Lifting Capacity | 10,000 Ibs | |
| Lifting Time | 62s | |
| Max. Lifting height: (w/o extension adapter) | A | 76 3/8"~78 1/4" |
| Max. Lifting height: (w/ extension adapter) | 79 3/8"~81 1/4" | |
| Max. lock height: (w/o extension adapter) | 74 13/16″~76 11/16" | |
| Max. lock height: (w/ extension adapter) | 77 13/16"~79 11/16" | |
| Overall Height | B | 111 7/8" |
| Overall Width | C | 139 1/8" |
| Drive-Thru Clearance | D | 100 3/4" |
| Width Between Columns | E | 112 1/4" |
| Minimum Pad Height | F | 3 9/16" |
| Gross Weight | 1,697 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 16 Units / 20'GP |
Detailed Image

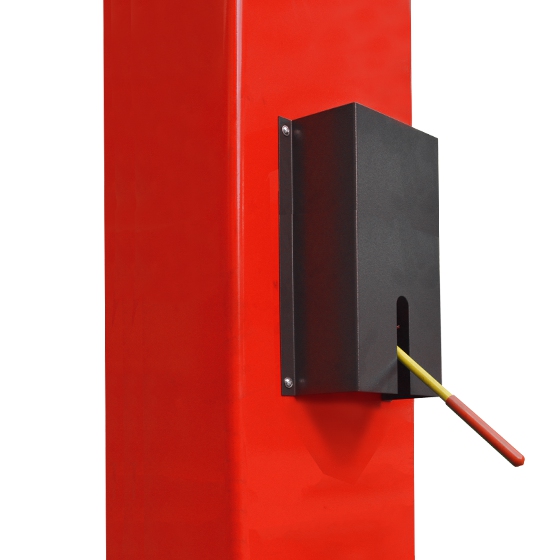

Single point safety release makes it easier for operators to unlock both columns from one column.
ETL certified AMGO power unit.

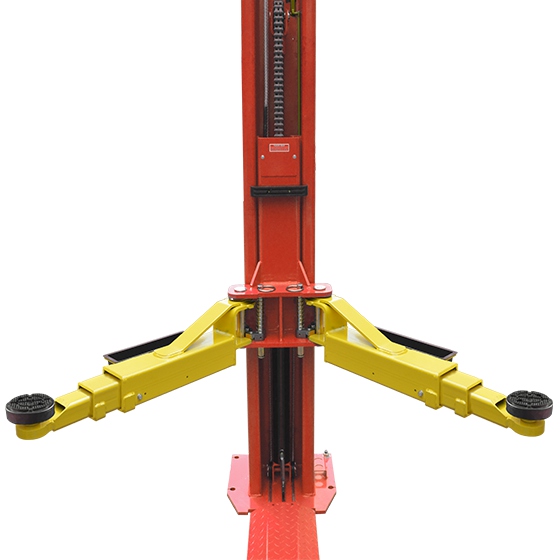

Symmetric 3-stage retractable arms are suitable for more vehicles.

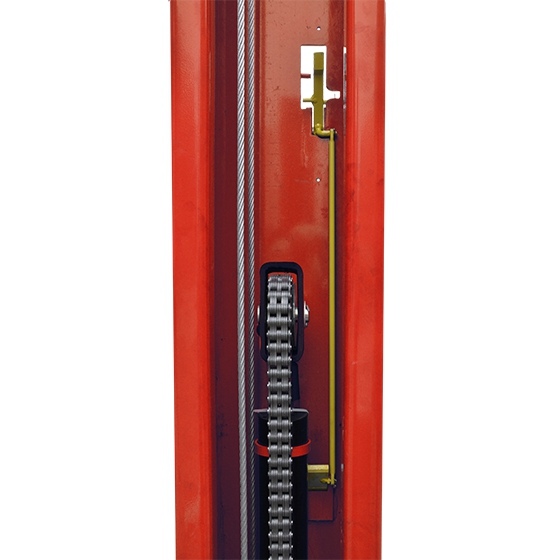

AMGO's exclusive dual safety lock structure.

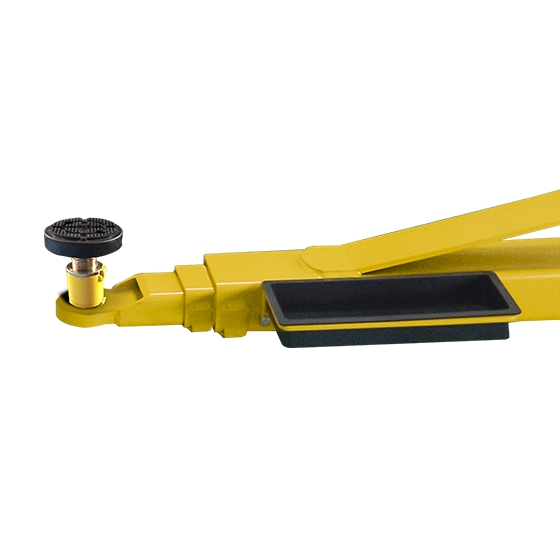

Double-screw rubber pad with pin dia. 2", comes with 3" extension adapter.
Toe guards and tool trays come as standard.
The optional saddle adapter. Kits No.: 1102185006C
6" extension adapter comes as optional. P/N: 1102504001-01

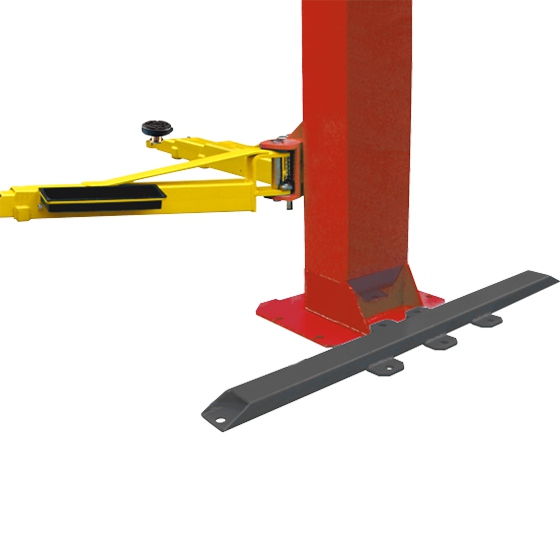

Optional base plate extention. Kits no.: 20903
Shipping Information
2 units/package, packing measurement (LxWxH) : 114 1/8" x 20 1/8" x 71" (Packed with power unit)
