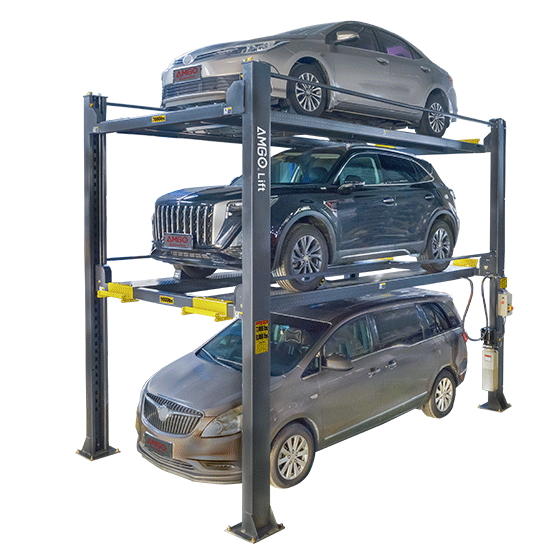

4097X

Features

● The patented design of 4097X features double safety locks for both lower and upper platforms;
● Capacity: 7,000lbs for upper platforms, 9,000lbs for lower platforms;
● Embedded platform design allows one set of drive-in ramps to serve both lower and upper platforms, minimum height just 7 1/16”;
● Safety control devices protect the vehicle from collision during lifting of the lower platforms, and prevent the upper platforms separating from the lower platforms when carrying the upper platforms down;
● Effortless fingertip push lock release operation;
● 220V/60HZ Single Phase power unit, ETL Certified;
● Proprietary drive-in ramps function as both tire stop and drive-on ramp, with quick assembly and disassembly.

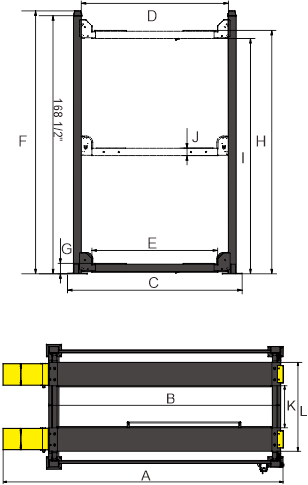

Specifications

Model		4097X
Lifting Capacity		Upper:7,000lbs Lower:9,000 Ibs
Lifting Time		104s
Overall Length (Inc Ramps)	A	247 9/16"
Outside Edge of Crossbeams	B	Upper:197 13/16" Lower: 204 1/16"
Overall Width	C	113 15/16"
Width Between Posts	D	96"
Drive Throu Clearance	E	82 1/16"
Overall Height	F	170 1/16"
Minimum Height	G	7 1/16"
Max. Lifting Height	H	158 3/8"
Max. Lock Height to Top of Runway		155 3/8"
Max. Height Underneath Runway	I	152 15/16"
Max. Lock Height Underneath Runway		150"
Width Between Runways	J	Upper: 37" Lower: 38 3/16"
Overall Width of Single Parking Unit	K	Upper: 78 3/4" Lower: 75 9/16"
Gross Weight		4,246 lbs
Motor		2.0HP

Detailed Image

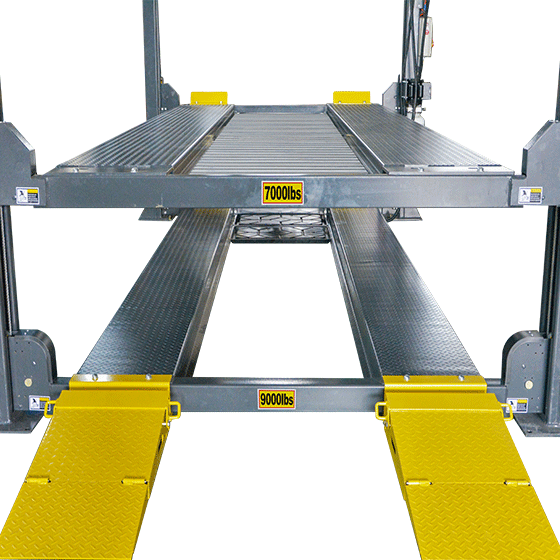

Proprietary drive-in ramps function as both tire stop and drive-in ramp, with quick assembly and disassembly.

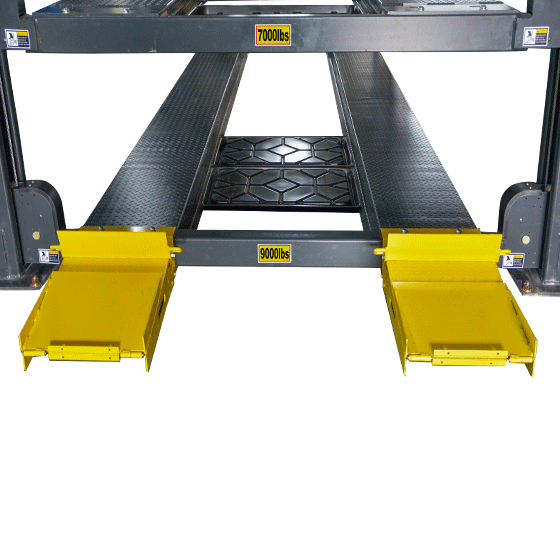

Double safety locks on both upper and lower platforms ensure a safe operation.

Effortless fingertip push operation;

Standard rubber wheel chocks.

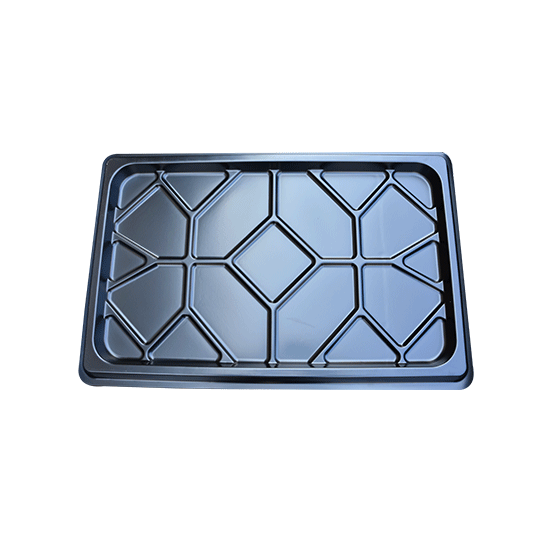

Optional plastic oil tray, Kits No.: 40806.

Optional storage wave panels Kits No.: 40812

Shipping Information

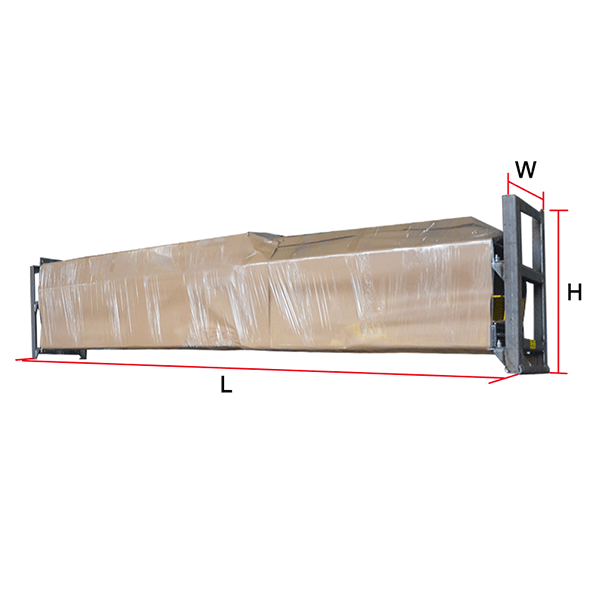

1 units/package, packing measurement (LxWxH): 210 5/8" x 22 1/4"x 40". Packed with Power Unit.

2 units/package, packing measurement (LxWxH) : 210 5/8" x 22 1/4"x 79 7/8"

Attention to forklift loading and unloading
