Features
- Lifting capacity: 9,000lbs, max. car weight: 6,000lbs;
- Low profile design, allows easy load for low clerance vehicles;
- Primary safety lock and cable-slack protection device come standard;
- AMGO’ patented design concealed safety lock control device, with manual single-point lock release;
- Foldable drive-on ramps come standard;
- Exclusive: Double-
Shaped columns for increased strength; - Non-slip diamond platforms;
- Multiple lock points secure the vehicles during lifting and storage;
- 110V power unit is worked with the lift (lifting time: 100s), please specify when ordering.
Specifications
| Model | 409-DP | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 47s | |
| Overall Length (Inc Ramps) | A | 208 1/16" |
| Outside Edge of Crossbeams | B | 167 5/8" |
| Overall Width | C | 190 9/16" |
| Width Between Columns | D | 181" |
| Drive Through Width | E | 169 13/16" |
| Overall Height | F | 82 7/8" |
| Minimum Height | G | 5 15/16" |
| Max. Lifting Height | H | 73 5/8" |
| Max. Lock Height to Top of Runway | 70 7/8" | |
| Max. Height Underneath Runway | I | 68 7/8" |
| Max. Lock Height Underneath Runway | 66 1/8" | |
| Width Between Runways | J | 37" |
| Overall Width of Single Parking Unit | K | 74 7/16" |
| Width Between Two Parking Units | L | 13 3/4" |
| Gross Weight | 2,771 lbs | |
| Motor | 2.0HP |
Detailed Image
AMGO'spatented design concealed safety lock control device, with manual single point lock release.
Foldable drive-on ramps. (each lift 2 units). P/N:104533025C-01
Double safety locks provide additional safety.
90° motor installing plate. P/N: 40802
Optional Caster kits help easily maneuver the parking lift. One set 4pcs. Kits No: 40801
Optional plastic oil tray (1 set, 4pcs) Kits No.: 40806.
Optional extended aluminum drive-in ramp. P/N: 40815, each lift needs 2 units.
Optional Adj.Jack Tray ,P/N: 40816
Optional Motor Protective cover (with emergency stop switch). Kits No.: 40810
Optional rubber wheel chock P/N: 40811
Optional storage wave panels Kits No.: 40812.

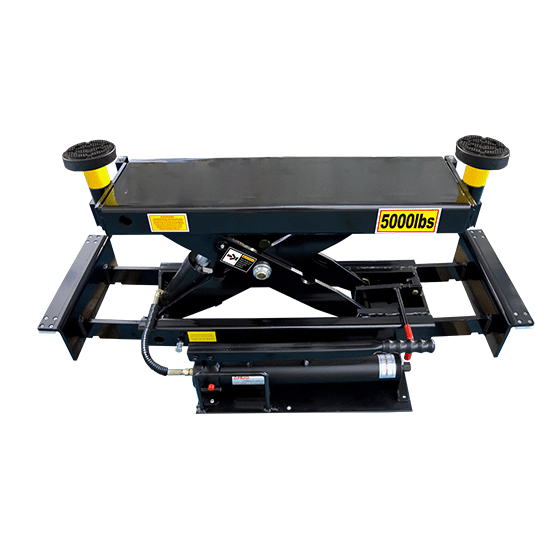

J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 5,000lbs.
Shipping Information

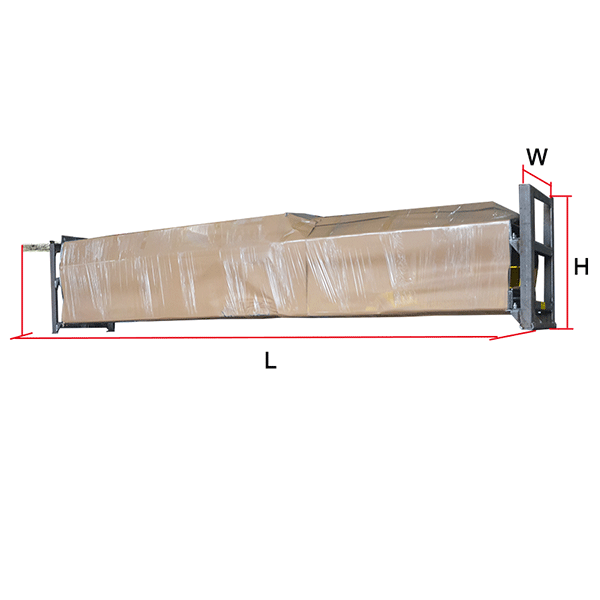

1 units/package, packing measurement (LxWxH): 192 3/16" x 21 5/8"x 37". Packed with Power Unit.

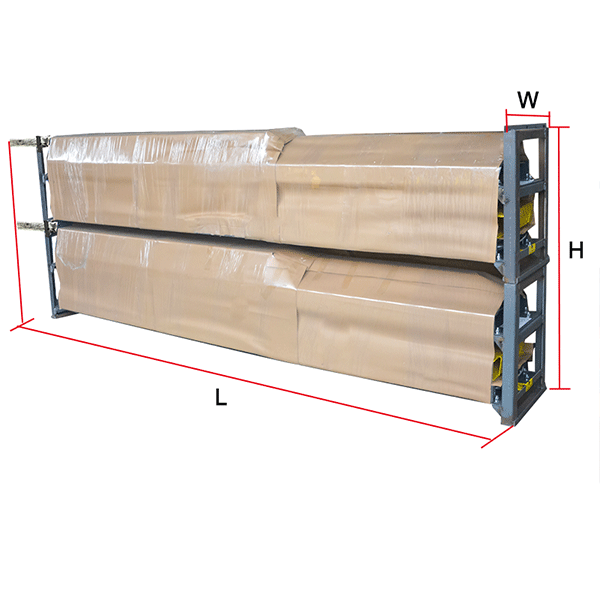

2 units/package, packing measurement (LxWxH) : 192 3/16" x 21 5/8"x 74 7/16".
