Features
- Portable design with a 7,000-lb. lifting capacity;
- AMGO’s patented arm lock release system allows a seamless, one-handed release operation;
- Patented, easily adjustable AMGO bionic arms for precise positioning at lifting points;
- Drop-in screw-type rubber pad with 2” pin diameter;
- Self-lubricating UHMW polyethylene sliders and bronze bushings;
- AMGO ETL certified power unit.
Specifications

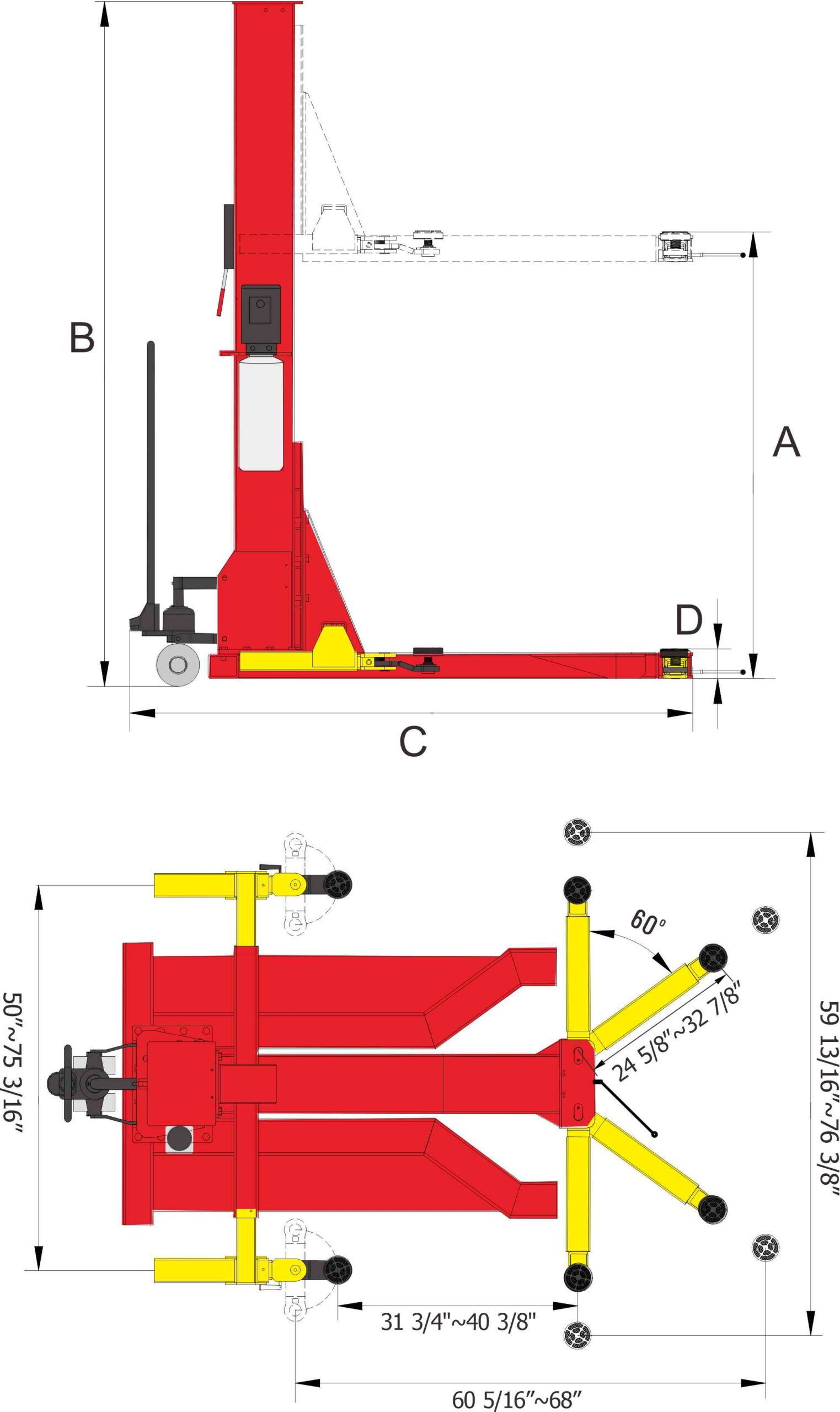

| Model SML-7 | Single Post Lift | |
|---|---|---|
| Lifting Capacity | 7,000 lbs | |
| Lifting Time | 38s(220V) 84s(110V) |
|
| Max. Lifting Height: (w/o extension adapter) | A | 70 13/16" ~ 72 3/4" |
| Max. Lifting Height: (w/ extension adapter) | 72 3/4" ~ 75 11/16" | |
| Max. Lock Height: (w/o extension adapter ) | 67 7/16" ~ 69 3/8" | |
| Max. Lock Height: (w/ extension adapter ) | 70 7/16” ~ 72 3/8“ | |
| Overall Height | B | 109 7/16" |
| Overall Width | C | 90 3/8" |
| Minimum Pad Height | D | 3 5/16" |
| Gross Weight | 1,942 lbs | |
| Motor | 2.0HP,220V/60Hz 1.0HP,110V/60Hz |
|
| QTY of Container | 12 Units/20'GP |
Detailed Image

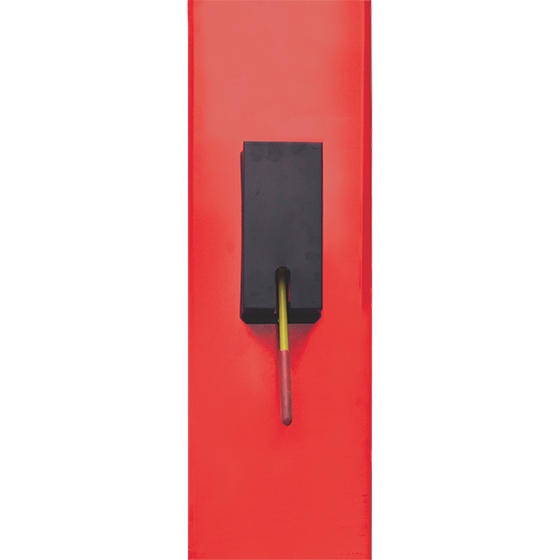

Single point safety release makes it easier for operators to unlock both columns from one column.
ETL certified AMGO power unit.

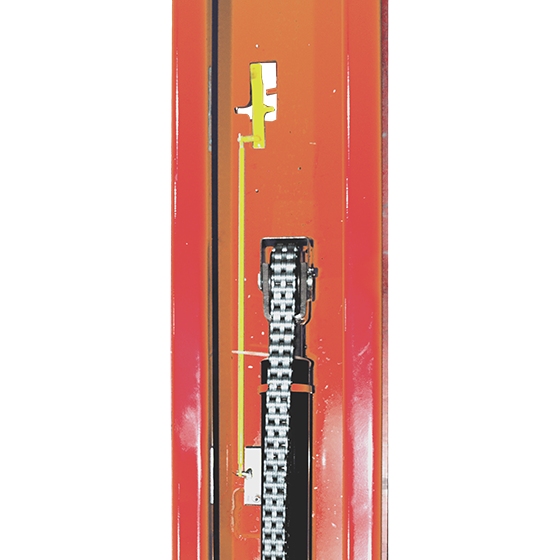

Dual-lock safety mechanism and chain-protective cover,only available at AMGO.
AMGO’s patented arm lock release system allows a seamless, one-handed release operation.

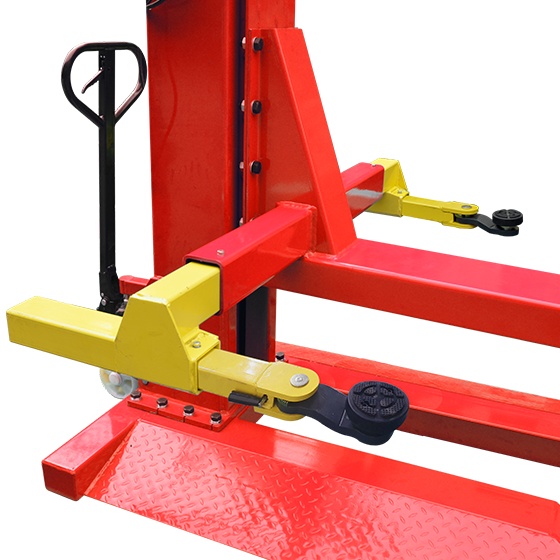

Patented, easily adjustable AMGO bionic arms for precise positioning at lifting points.

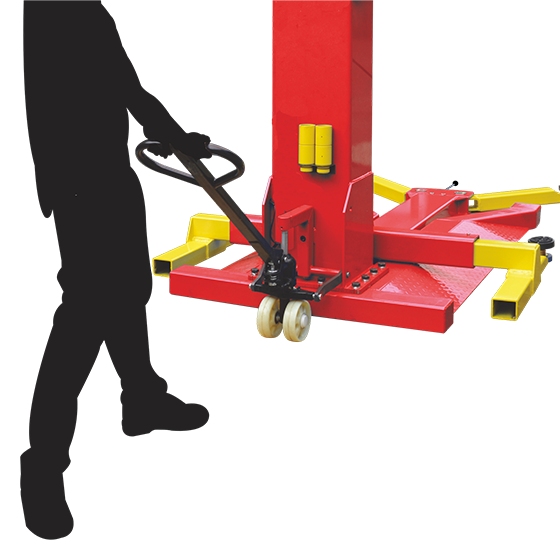

Portable wheels make it easy to move the lift.

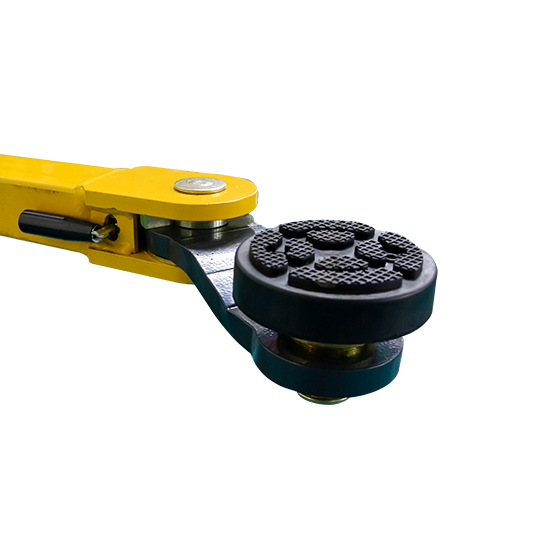

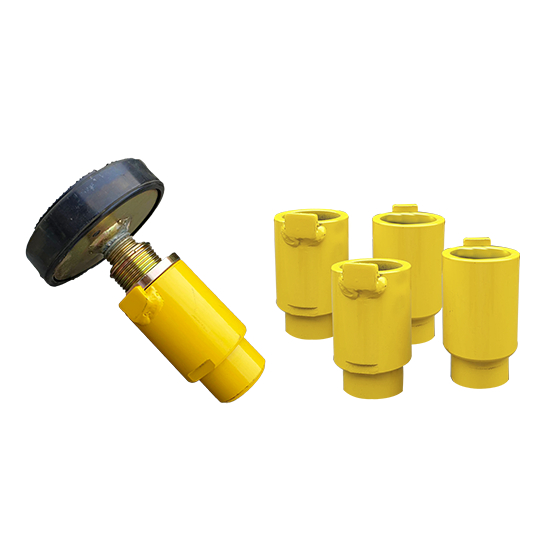

Drop-in screw-type rubber pad with 2” pin diameter, comes with 3" extension adapter.

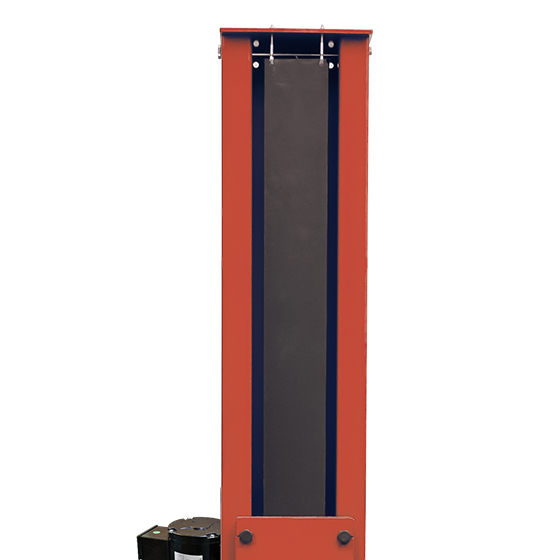

Fabric chain cover protects the cylinder and provides a nice, clean appearance.
Shipping Information

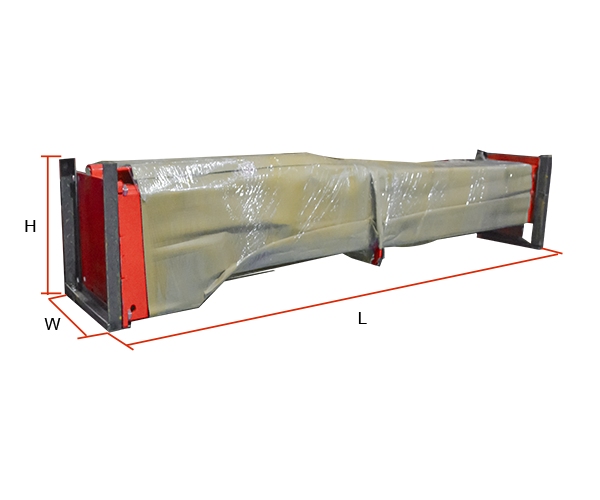

Single unit as a package, packing dimension of column (LxWxH): 109 1/16" x 20 1/16" x 14 3/4“

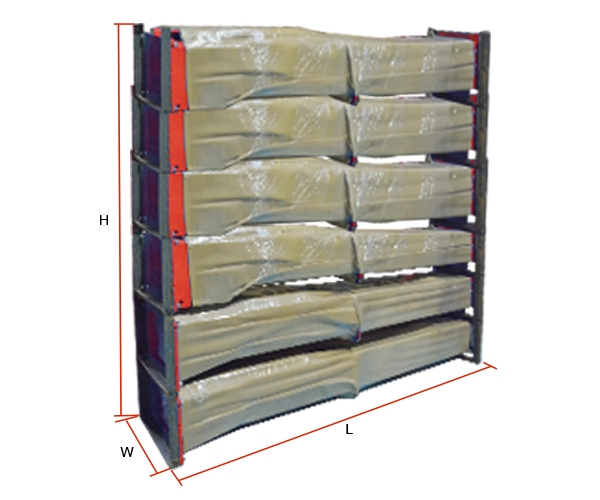

6 units as a package, packing dimension (LxWxH): 109 1/16" x 20 1/16" x 88 9/16"

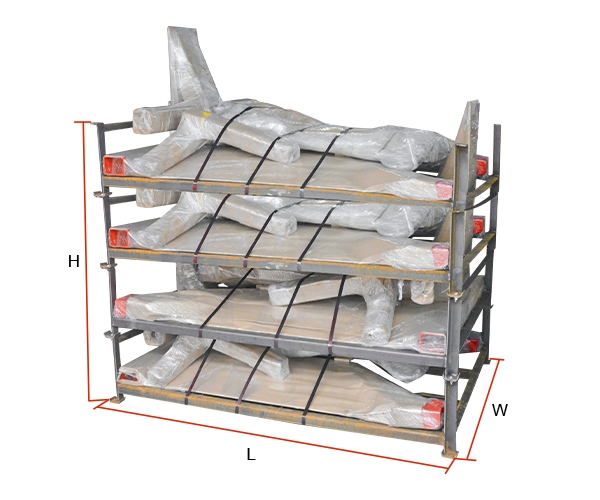

Single unit as a package, packing dimension (LxWxH): 76 3/4" x 55 1/2" x 35 9/16"
