Features
- Equipped with pneumatic hydraulic pump;
- Whole set of 2.5”, 5” adapters & rubber pad assy., increases the lifting height to service most pickups and high-seated passenger cars;
- The unique patent floating roller system with protective box that ensures the jack to glide smoothly on the rail;
- Extendedable telescoping arms can be positioned to the correct lifting points at any time;
- Enhance solid scissors provide running stability;
- Adjustbale lower sliding assy. fits many different brands of four post or scissor lifts with a width of 36” to 56 1/2” between runways;
- The jack features two solid locking positions that are used once the jack is raised to a comfort work height;
- Convenient guradrail works as a booster handle for for easily moving the Jack and protecting the oil hose.
Specifications
| Model | RJ-8A | |
|---|---|---|
| Lifting Capacity | 8,000 Ibs | |
| Lifting Time | 50s | |

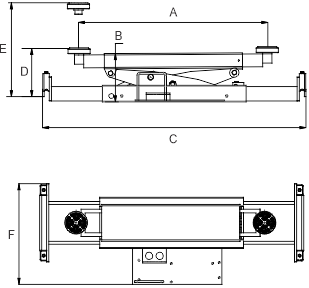

| Arm Pads Reach | A | 34 7/16" - 56" |
| Min. Height | B | 10 11/16" |
| Support Base Width | C | 36" - 56 1/2" |
| Min Rubber Pad Height | D | 10 7/8" |
| Max. Lifting Height (Without adapters) | E | 21 3/16" |
| Max. Lifting Height (With adapters) | 28 11/16" | |
| Overall Width | F | 21 3/4" |
| Air Pressure | 0.8Mpa | |
| Gross Weight | 397lbs | |
| Pump | Pneumatic Pump |
Detailed Image

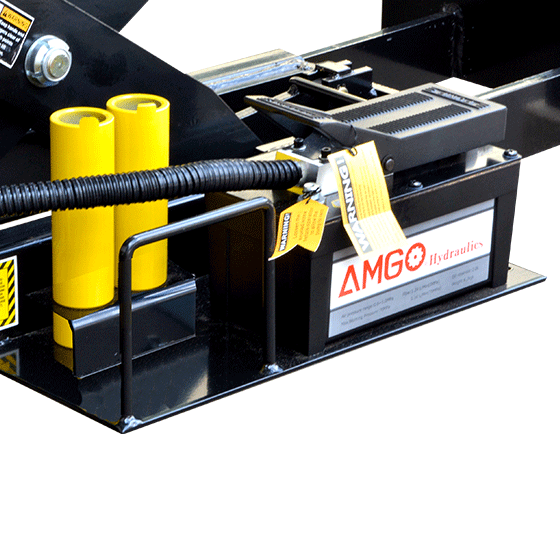

Excellent quality pneumatic hydraulic pump matched with a high working pressure oil hose. Includes a customized special bracket for adapter storage.
Patented float rolling devices allows the jack to move smoothly on the rail while sitting stably in the groove when lifting a vehicle.

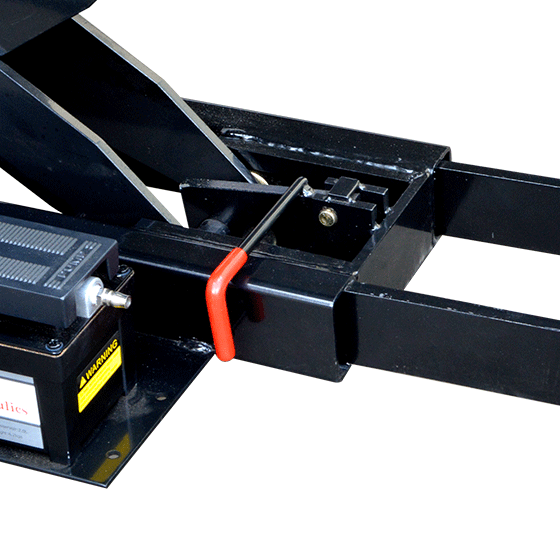

Simple-to-operate manual safety lock allows access to multiple lock positions for a comfortable working height.

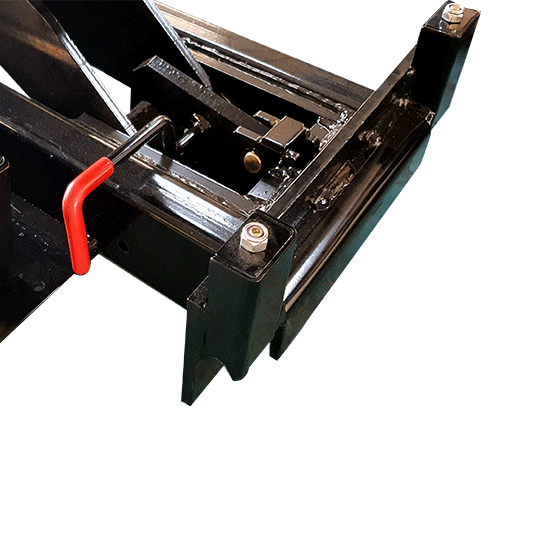

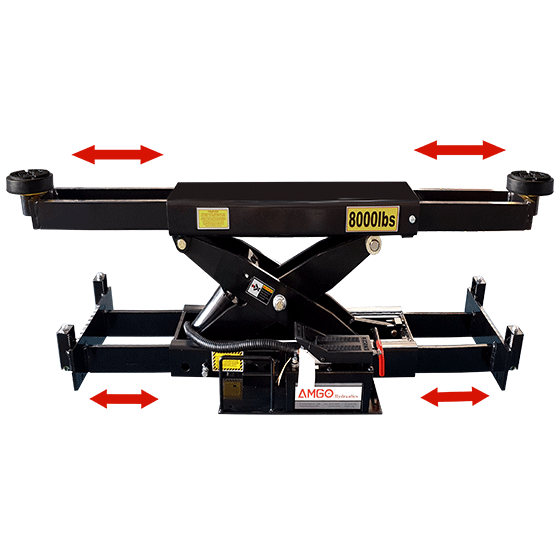

The long-reach arm and lower sliding assembly are fully adjustable to accommodate virtually any 4-post or scissor lift.
Ergonomically guardrail help to protect oil hose as well as assist to move the Jack easily.
Stackable rubber pads assembly with 2.5", 5" extension adapters.
Shipping Information
Single unit/package, packing measurement (LxWxH) : 38 9/16" x 22 13/16" x 15 3/8"
