Features
- Equipped with hand pump;
- Standard 2.5″ extension adapters & durable Rubber Pads Assy;
- Adjustable arms allow for easy positioning to reach the desired support point;
- Low-Profile Jack provides ample clearance for low-stance sports cars and other modified vehicles;
- Manual safety lock provides two lock positions that allow you to find a comfortable work height;
- Extendable lower sliding Assy. fits widths of 33 7/8″ to 52 13/16″ between runways;
- Ergonomic guardrail helps move the jack easily.
Specifications
| Model | RJ-6H | |
|---|---|---|
| Lifting Capacity | 6,000 Ibs | |
| Lifting Time | 50s | |
| Arm Pads Reach | A | 33 1/16"-53 7/16" |
| Min. Height | B | 8 7/16" |
| Support Base Width | C | 33 7/8"-52 13/16" |
| Min Rubber Pad Height | D | 8 5/8" |
| Max. Lifting Height (Without adapters) | E | 17 3/4" |
| Max. Lifting Height (With adapters) | 20 1/4" | |
| Overall Width | F | 20 1/16" |
| Gross Weight | 280lbs | |
| Pump | Manual Pump |
Detailed Image

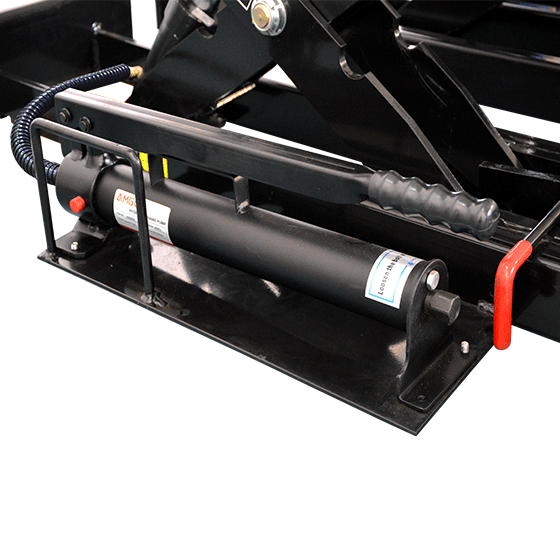

The Hand Pump is convenient and quick to operate.
Patented float rolling device allows the jack to move smoothly on the rail while sitting stably in the groove when lifting a vehicle.

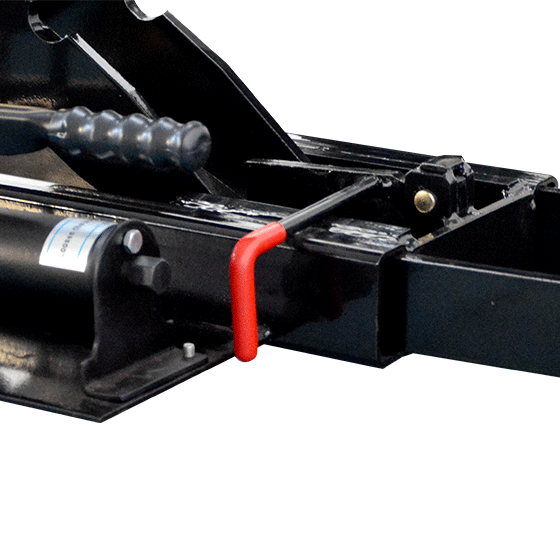

Manual safety lock is easy to control

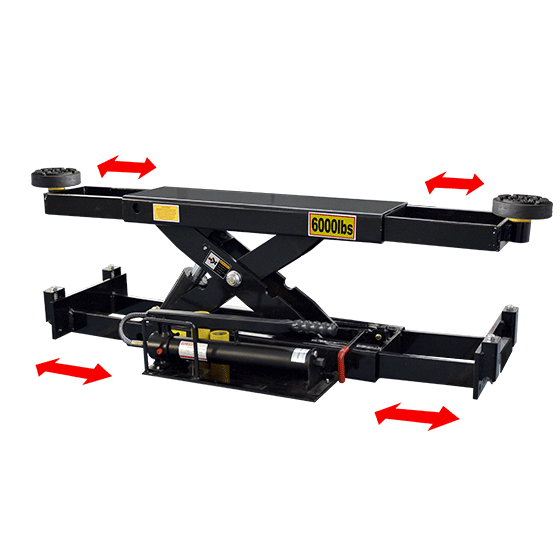

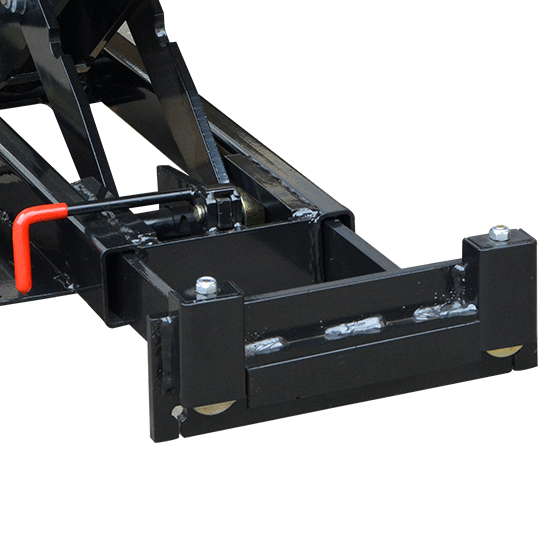

The long-reach arm and lower sliding assembly are fully adjustable to accommodate virtually any 4-post or scissor lift.
An ergonomic guardrail makes moving this jack easy.
Stackable rubber pads assembly with 2.5" extension adapters.
Shipping Information
Single unit/package, packing measurement (LxWxH) : 36 1/4" x 21 7/8" x 13 3/4"
