Features
- Powerful pneumatic hydraulic pump with excellent performance.
- Heavy-duty sturdy saddle adapter assy. provides more suitable chassis engagement and ensures more secure support when lifting a extremely heavy-duty vehicle or full-sized truck.
- Wholeset of 3″ & 6″ extension adapters increases the lifting height to service more heavy-duty vehicles;
- Incorportes AMGO’s patented floating rolling technology;
- Extendable lower sliding Assy. are strengthen and thickened which holding the jack steadily between the runways.
- The strongest adjustable arms are good to handle heavy-duty work and positioning lift point easily.
- Equipped with larger size hydraulic oil cylinder.
- Ergonomically guradrail works as a booster handle for moving the Jack easily and protecting oil hose.
Specifications

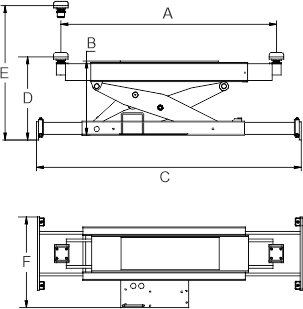

| Model | RJ-20A | |
|---|---|---|
| Lifting Capacity | 20,000 Ibs | |
| Lifting Time | 50s | |
| Arm Pads Reach | A | 45 1/4" - 66 1/8" |
| Min. Height | B | 14 3/16" |
| Support Base Width | C | 45 3/16" - 58 1/4" |
| Min Rubber Pad Height | D | 16 9/16" - 17 15/16" |
| Max. Lifting Height (Without adapters) | E | 31" - 32 5/16" |
| Max. Lifting Height (With adapters) | 40" - 41 5/16" | |
| Overall Width | F | 25 1/2" |
| Air Pressure | 0.8Mpa | |
| Gross Weight | 829 lbs | |
| Pump | Pneumatic Pump |
Detailed Image

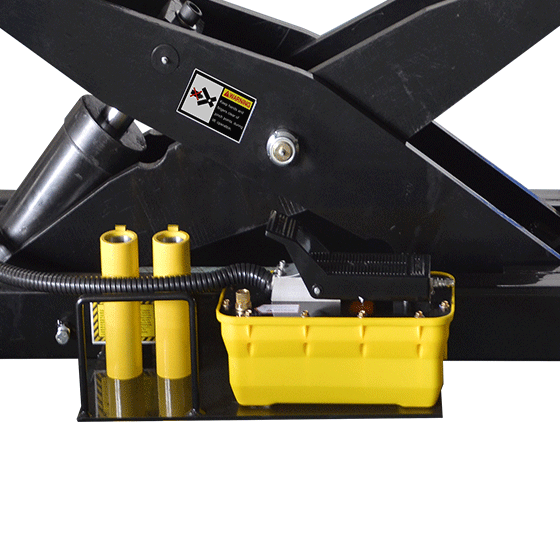

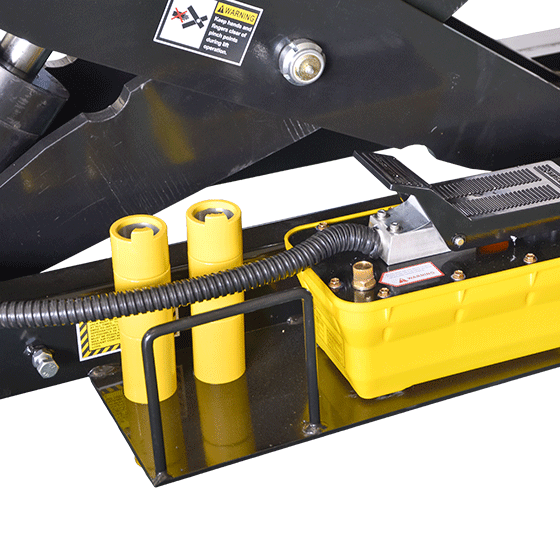

Special high pressure pneumatic hydraulic pump connected and longevity hose maintains high performance.

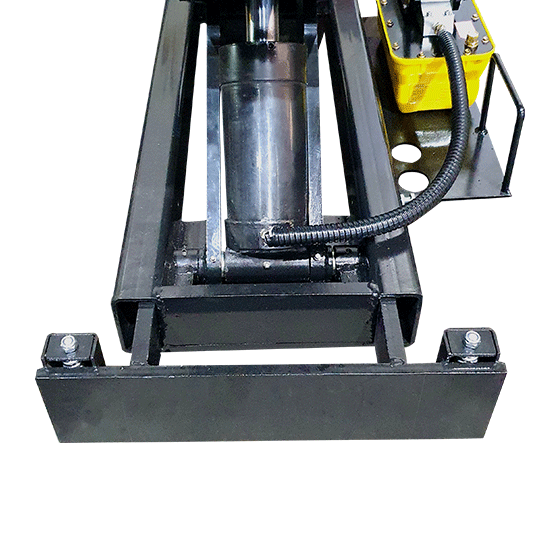

A larger version and more powerful hydraulic oil cylinder.

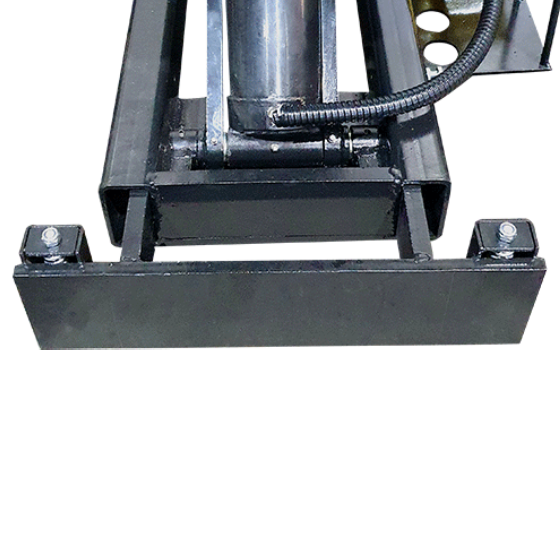

Thickened extendable lower sliding assy, which equipped with Zinc made rollers of the patent floating design.

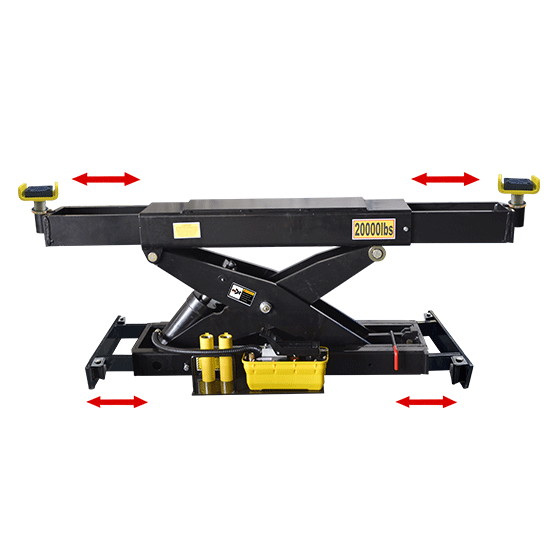

Strengthen upper support assy and adjustable arms are crafted to withstand extremely heavy loading.
Ergonomically guardrail protecting oil hose as well as easy to move the Jack as a booster.

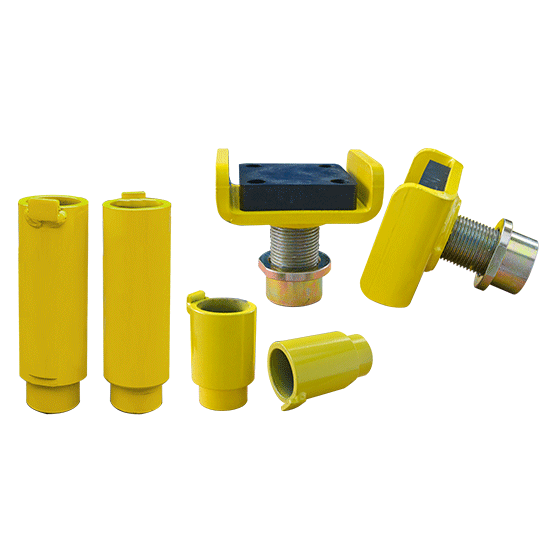

Rugged construction single-screw frame saddle adapters package with 3" & 6" extension adapters.
Shipping Information

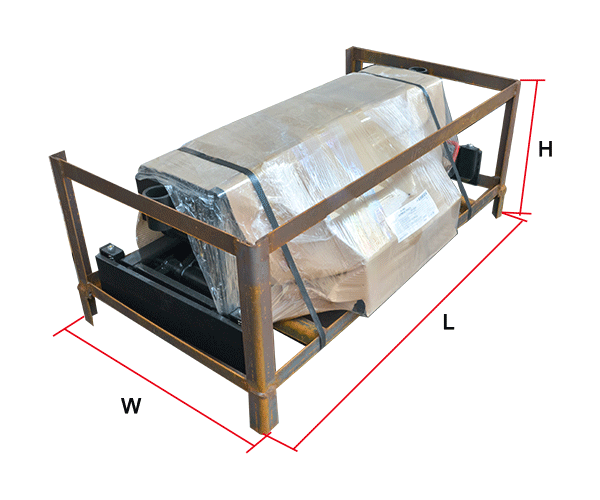

Single unit/package, packing measurement (LxWxH) : 49 13/16"x26 3/4"x 18 1/16"mm
