PRO-14A

The PRO-14A provides the same lifting capacity as the PRO-14 but with turn plates to do alignment work. It is built to commercial grade standards which will provide many years of service.

Contact Us Now

Click to download Product Brochure

Click to download Product Manual

Description

Features

• 14,000 lbs Capacity

• Air-Lock Released for Safety and Reliability of Convenient Operation

• Mechanical Self-Lock and Cable-Breaking Protection

• 1/2″ Aircraft at Quality Cable

• Hydraulic cylinders are designed and made to high quality standards

• Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 47”(1194mm) and maximum distance is 54 1/2”(1385mm).

• Skid Proof Diamond Platform

Optional Rolling Jacks:
-RJ-8A: pneumatic hydraulic type 8,000lbs (3,500kg)
-RJ-10A: pneumatic hydraulic type 10,000lbs (4,500kg)

More choices:
-Optional led lights: No. 40103
-Optional extension kits: No. 41403
-Optional air line kits: No. 40102

• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

Model PRO-14A
Style Alignment
Lifting Capacity 14,000 lbs (6,500kg)
Lifting Time 81S
A: Overall Length (Inc.Ramps) 257″ (6528mm)
B: Overall Length (No.Ramps) 216 1/2″ (5500mm)
C: Overall Width 130 7/8″ (3324mm)
D: Width Between Columns 116″ (2946mm)
E: Max. Lifting Height 75 3/8″ (1915mm)
F: Overall Height 86″ (2185mm)
G: Minimum Height 9 7/8″ (250mm)
H: Max. Underneath Height 66 3/4″ (1695mm)
I: Drive-Thru Clearance 102 1/8″ (2592mm)
J: Width Between Runways 47″ (1194mm), Max. 54 1/2″ (1385mm)
K: Outside Edge of Runways 87″ (2210mm), Max. 94 1/2″ (2401mm)
L: Min. Four Wheel Align 92 1/2″ (2350mm)
M: Max. Four Wheel Align 169 5/8″ (4310mm)
N: Max. Two Wheel Align 175 1/4″ (4450mm)
Gross Weight 3,400 lbs (1,542kg)
Motor 2.0HP, 220V/60Hz Single Phase

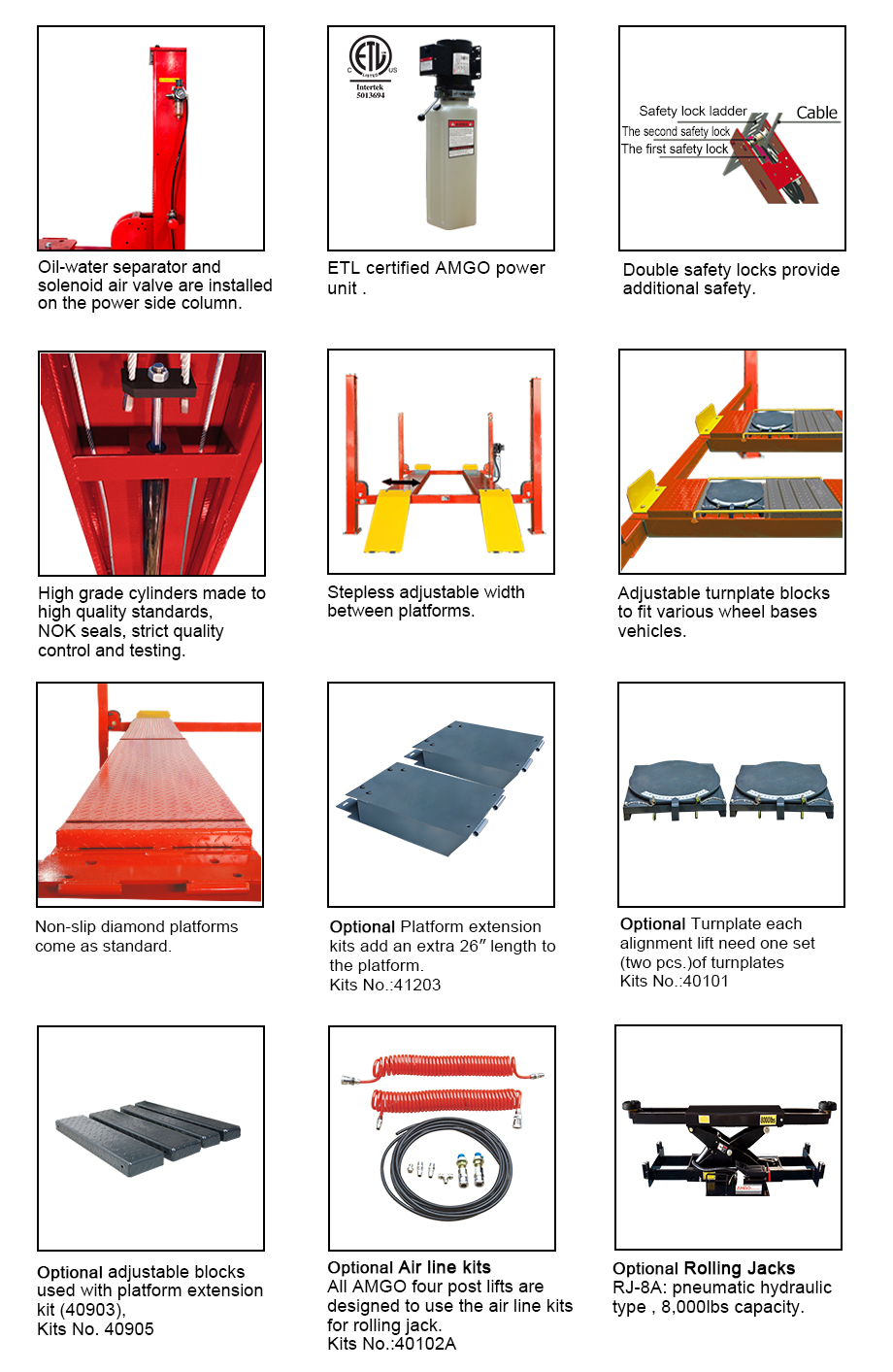

Detailed Images
