Features
- Lifting capacity: 10,000 lbs;
- Dual hydraulic direct-drived cylinders made on high standard;
- The
arms can load the vehicle in either a symmetrical or an asymmetrical way, ensuring adequate door clearance; - Single-point manual safety lock release, simultaneously unlock both columns from one side;
- Clear-floor design, provide unobstructed floor use;
- Overhead safety shut-off device prevents vehicle damage;
- Standard two height settings accommodate varying ceiling heights;
- Additional optional kits are available to extend the height and width, providing a more comprehensive service;
- Self-lubricating UHMW polyethylene sliders;
- Automatic arms restraint;
- Areo sync cables come as standard;
- Comes with detachable toe guard and tool tray;
- Standard double-screw rubber pad ( pin dia 2” ) with 3” extension adapters.
Specifications

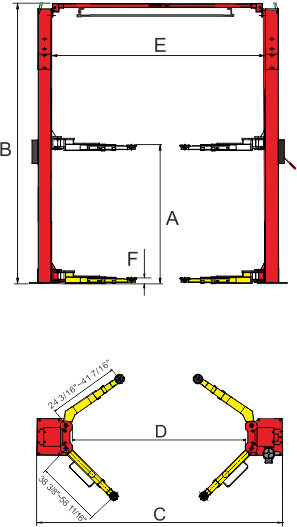

| Model OHX-10H | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 10,000 Ibs | |
| Lifting Time | 63s | |
| Max. Lifting height: (w/o extension adapter) | A | 78 9/16"~80 7/16" |
| Max. Lifting height: (w/ extension adapter) | 81 9/16"~83 7/16" | |
| Max. lock height: (w/o extension adapter) | 76 11/16″~78 9/16" | |
| Max. lock height: (w/ extension adapter) | 79 11/16"~81 9/16" | |
| Overall Height | B | 157"~167 3/16" |
| Overall Width | C | 134 15/16" (140 7/8") |
| Drive-Thru Clearance | D | 99 13/16" (105 11/16") |
| Width Between Columns | E | 112 1/4" (118 1/8") |
| Minimum Pad Height | F | 3 9/16" |
| Gross Weight | 1,709 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 15 Units/20'GP |
Detailed Image
Single point safety release makes it easier for operators to unlock both columns from one column.
ETL certified AMGO power unit.
Hydraulic direct-drived cylinders.
Automatic arm restraints.
Super asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.

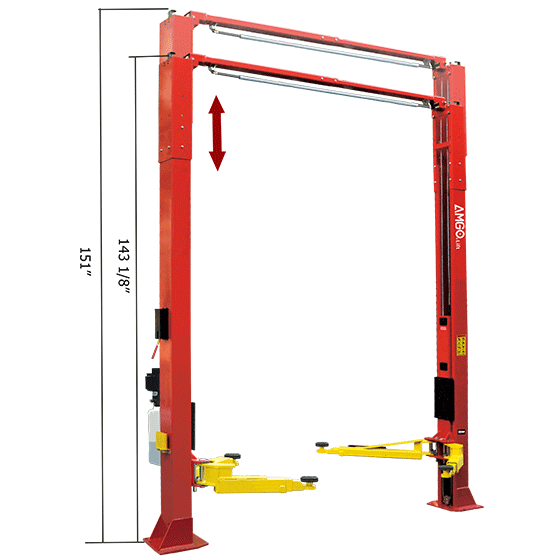

Standard two height settings accommodate varying ceiling heights.
Extremely long carriages, more than twice the length of comparable models on the market.
Standard double-screw rubber pad (pin dia 2") with 3" extension adapters.
The optional saddle adapter. Kits No.: 1102185006C
6" extension adapter comes as optional. P/N: 1102504001-01
Optional width extension kits, that can extend the width between columns from 112 1/4" to 118 1/8". Kits No.: 21005
Shipping Information
2 units/package, packing measurement (LxWxH) : 145 1/16" x 17 3/4" x 61" (Packed with power unit)
3 units/package, packing measurement (LxWxH) : 145 1/16" x 17 3/4" x 89 1/16" (Packed with power unit)
