Features
- Lifting capacity: 9,000 lbs;
- Dual hydraulic direct-drived cylinders made on high standard;
- The
arms can load the vehicle in either a symmetrical or an asymmetrical way, ensuring adequate door clearance ; - Single-point manual safety lock release, simultaneously unlock both columns from one side;
- Clear-floor design, provide unobstructed floor use;
- Overhead safety shut-off device prevents vehicle damage;
- Standard two height settings accommodate varying ceiling heights;
- Self-lubricating UHMW polyethylene sliders
- Automatic arms restraint;
- Areo sync cables come as standard;
- Comes with detachable toe guard and tool tray;
- Standard double-screw rubber pad ( pin dia 2″ ) with 3″ extension adapters.
Specifications

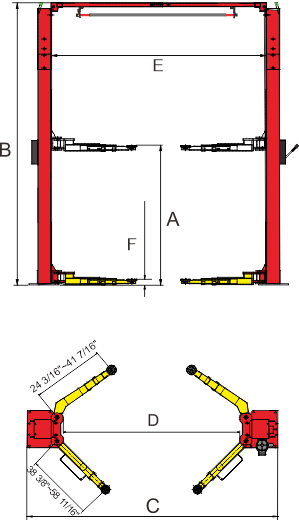

| Model OH-9 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 57s | |
| Max. Lifting height: (w/o extension adapter) | A | 71 7/16"~73 3/8" |
| Max. Lifting height: (w/ extension adapter) | 74 7/16"~76 5/16" | |
| Max. lock height: (w/o extension adapter) | 69 5/8″~71 1/2" | |
| Max. lock height: (w/ extension adapter) | 72 5/8"~74 1/2" | |
| Overall Height | B | 143 1/8" (151") |
| Overall Width | C | 135” |
| Drive-Thru Clearance | D | 99 1/2" |
| Width Between Columns | E | 112 3/16" |
| Minimum Pad Height | F | 3 9/16" |
| Gross Weight | 1,493 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 25 Units/20'GP |
Detailed Image
Single point safety release makes it easier for operators to unlock both columns from one column.
ETL certified AMGO power unit.
Hydraulic direct-drived cylinders.
Automatic arm restraints.

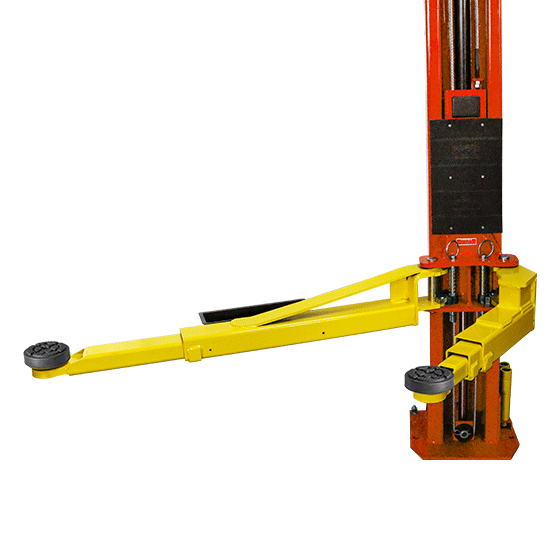

Super asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.

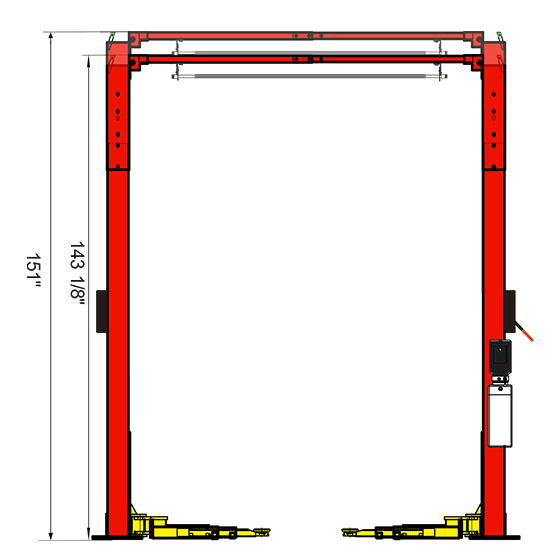

Standard two height settings accommodate varying ceiling heights.

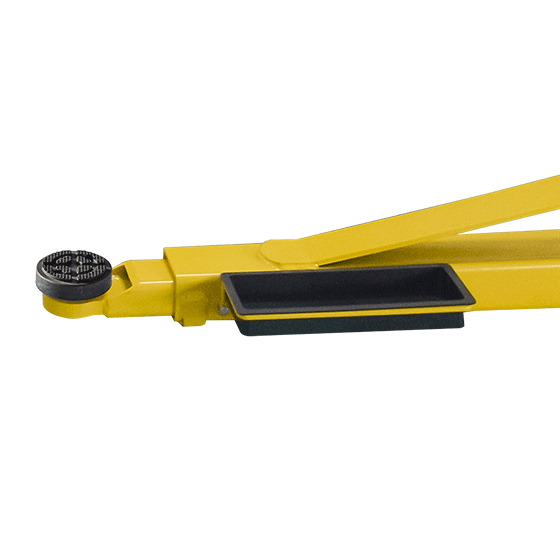

Toe guards and tool trays come as standard.
Standard double-screw rubber pad (pin dia 2") with 3" extension adapters.
The optional saddle adapter. Kits No.: 1102185006C
6" extension adapter comes as optional. P/N: 1102504001-01
Optional width extension kits, that can extend the width from 112 3/16" to 118 1/8". Kits No.: 20906

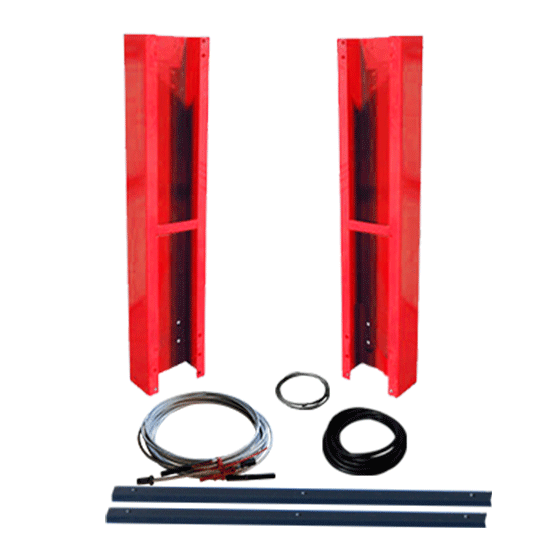

Optional Height Extension Kits. With these kits the overall height is adjusted from 150 7/16" to 174 7/16". Kits No.: 20902
Shipping Information
2 units/package, packing measurement (LxWxH) : 114 9/16" x 17 3/4" x 60 7/16" (Packed with power unit)
3 units/package, packing measurement (LxWxH) : 114 9/16" x 17 3/4" x 89 3/8" (Packed with power unit)
