Features
- Lifting capacity: 18,000 lbs;
- Dual hydraulic direct-drived cylinders made on high standard;
- 4 two-stage sturdy arms ensure the heavy load stability;
- Single-point manual safety lock release, simultaneously unlocks both columns from one side;
- Clear-floor design, provides an unobstructed floor use;
- Overhead safety shut-off device for maxium vehicle protection;
- Exclusive: adjustable three height setting accommodates varying service ceiling heights;
- Extremely long carriages are equipped to enhance the stability and durability;
- Self-lubricating UHMW polyethylene sliders
- Automatic arms restraint;
- Areo sync cables come standard;
- Comes with detachable toe guard and tool tray;
- Both heavy-duty single-screw rubber pad and saddle adapter come as standard;
- Both 3” and 6” extension adapters come as standard.
Specifications

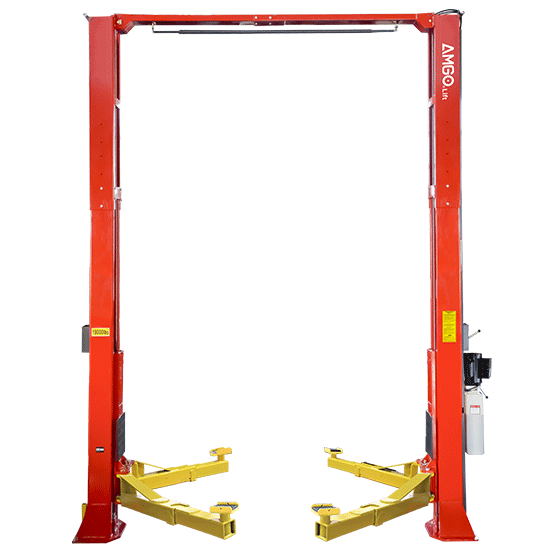

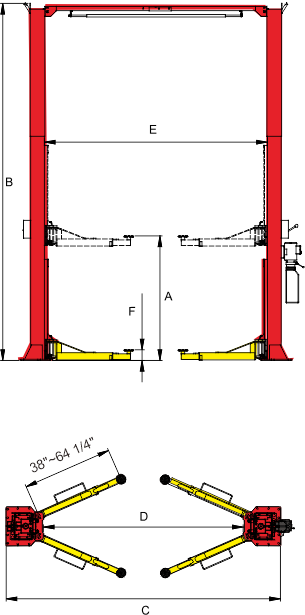

| Model OH-18 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 18,000 Ibs | |
| Lifting Time | 84s | |
| Max. Lifting height: (w/o extension adapter) | A | 74 7/8"~76 1/4" |
| Max. Lifting height: (w/ extension adapter) | 83 7/8"~ 85 1/4" | |
| Max. lock height: (w/o extension adapter) | 72 7/8"~ 74 1/4" | |
| Max. lock height: (w/ extension adapter) | 81 7/8"~ 83 1/4" | |
| Overall Height: (low setting) | B | 174" |
| Overall Height: (medium setting) | 186" | |
| Overall Height: (high setting) | 198" | |
| Overall Width | C | 151 15/16" |
| Drive-Thru Clearance | D | 110 7/16" |
| Width Between Columns | E | 123 1/2" |
| Minimum Pad Height | F | 6 7/8" |
| Gross Weight | 2,906 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 24 Units/40'GP |
Detailed Image
Single point safety release makes it easier for operators to unlock both columns from one column.
ETL certified AMGO power unit.

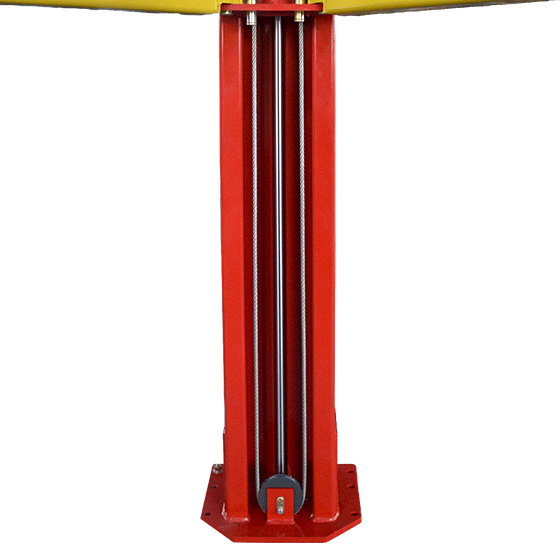

Hydraulic direct-drived cylinders.
Automatic arm restraints.

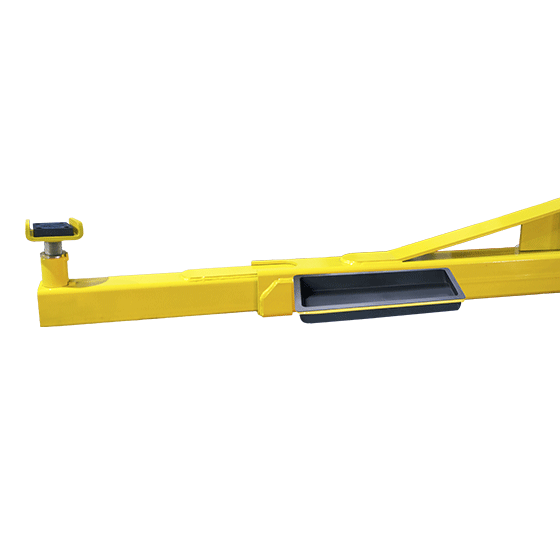

Standard heavy-duty 2-stage arms (P/N of Lifting arm assy. :1102794001C-03).
Standard includes both heavy-duty single screw rubber pad and saddle adapter.
Standard includes both 3" and 6" extension adapters
Shipping Information
2 units/package, packing measurement (LxWxH) : 133 7/8" x 22 1/2" x 74 3/8" (Packed with power unit)
