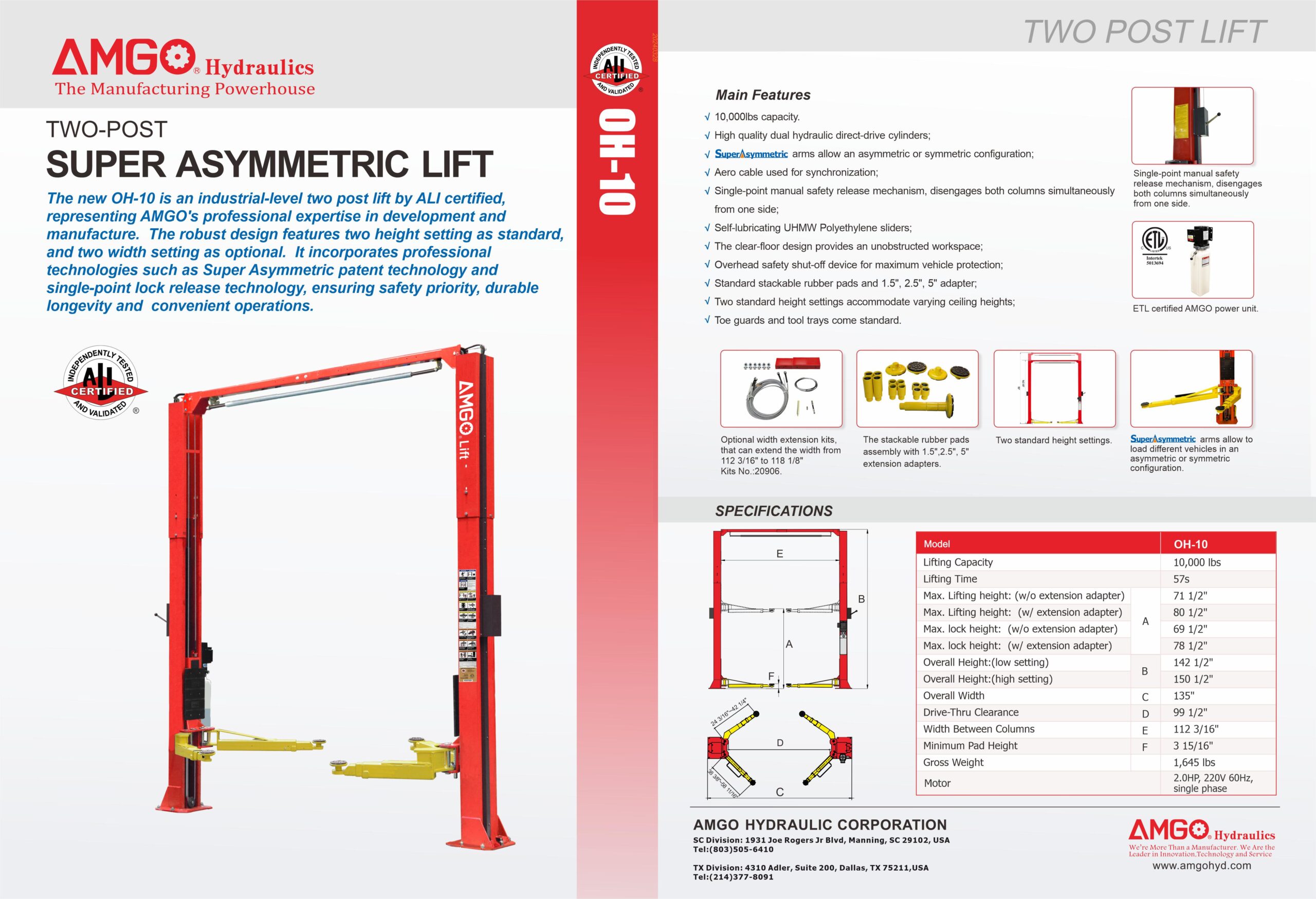

OH-10

Features

• 10,000lbs capacity.
• Dual hydraulic direct-drived cylinders made on high standard.
•   to load different vehicles in an asymmetric or symmetric configuration.
• Aero cable used for synchronization.
• Single-point manual safety release mechanism, disengages both columns simultaneously from one side.
• Self-lubricating UHMW Polyethylene sliders.
• Clear-floor design, provide unobstructed floor use.
• Overhead safety shut-off device prevents vehicle damage.
• Stackable rubber pads and 1.5″, 2.5″, 5″ adapters as standard supply.
• Standard two height settings accommodate varying ceiling heights.
• Toe guards and tool trays come as standard.

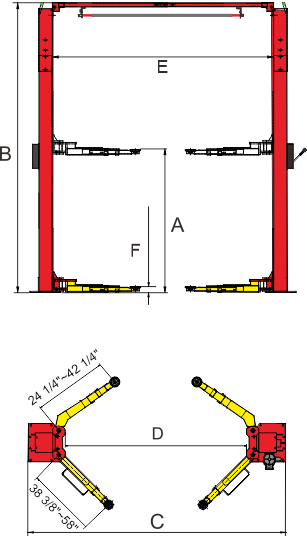

Specifications

Model OH-10		Clear floor two post lift
Lifting Capacity		10,000 Ibs
Lifting Time		57s
Max. Lifting height: (w/o extension adapter)	A	71 1/2"
Max. Lifting height: (w/ extension adapter)		80 1/2"
Max. lock height: (w/o extension adapter)		69 1/2"
Max. lock height: (w/ extension adapter)		78 1/2"
Overall Height	B	142 1/2" 150 1/2"
Overall Width	C	135”
Drive-Thru Clearance	D	99 1/2"
Width Between Columns	E	112 3/16"
Minimum Pad Height	F	3 15/16"
Gross Weight		1,645 Ibs
Motor		2.0HP
QTY of Container		25 Units/20'GP

Detailed Image

Single point safety release makes it easier for operators to unlock both columns from one column.

ETL certified AMGO power unit.

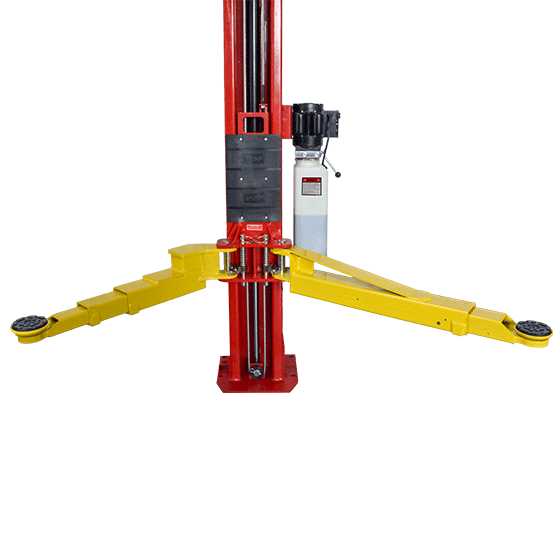

Hydraulic direct-drived cylinders.

Automatic arm restraints.

Super asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.

Standard two height settings accommodate varying ceiling heights.

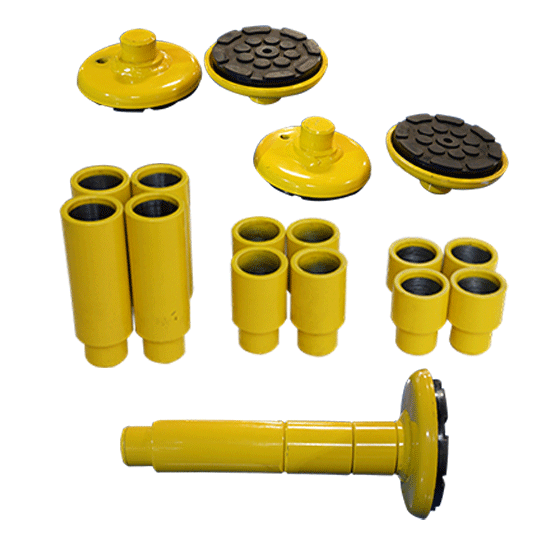

The stackable rubber pads assembly with 1.5", 2.5", 5" extension adapters.

Optional width extension kits, that can extend the width from 112 3/16" to 118 1/8". Kits No.: 20906

Shipping Information

2 units/package, packing measurement (LxWxH) : 113 9/16" x 17 3/4" x 60 5/8" (Packed with power unit)

3 units/package, packing measurement (LxWxH) : 114 9/16" x 17 3/4" x 89 9/16" (Packed with power unit)

Attention to forklift loading and unloading
