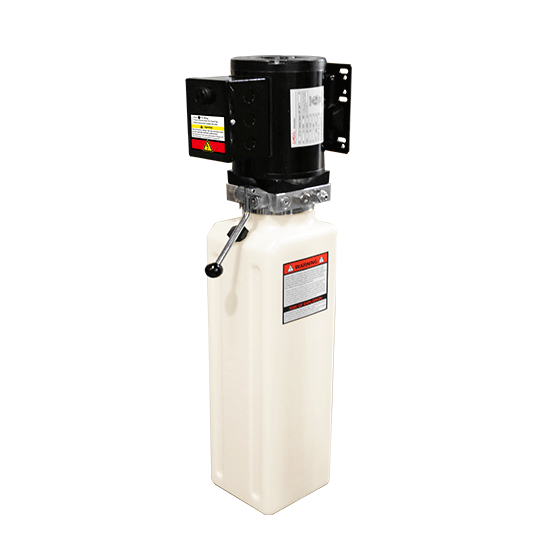

Model: 071102

220V/60HZ Single Phase Manual Power Unit

This upgraded unit is engineered to meet the demanding requirements of commercial-duty applications, delivering reliable power to drive your car lifts, especially heavy-duty Two Post and Four Post Car Lifts.

Compatible AMGO models:

OH-12 | OH-12S | OH-15 | OH-18 | BP-12 | PRO-12 | PRO-12A | PRO-12AX | PRO-14 | PRO-14A | PRO-14E | PRO-14AE | PRO-18 | PRO-18A.

Contact Us Now

Click to download Product Manual

Categories: ,

Features

  • With ETL Certificate, 220V single-phase 60Hz AC;
  • Equipped with 14L high-density polyethylene oil tank;

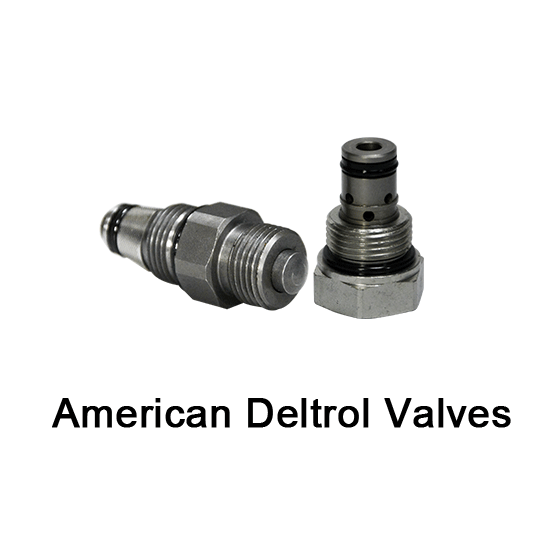

  • Manual Detrol release valve;
  • High pressure gear pump with a displacement 2.1cc/r, the highest pressure up to 25MPa;
  • Plug-in design high-pressure relief valve, with a relief pressure set at 21MPa;
  • Adjustable reflux speed by throttle valve;
  • Longevity & easy maintenance
  • Oil outlet is provided on both sides

Specifications

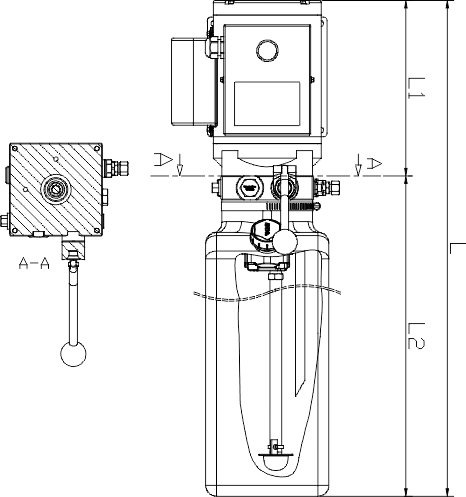

Model: 071102 Specifications
Part No.071102
L35"
L19 5/16"
L225 3/4"
Voltage220v Single Phase
Frequency60Hz
Power2.0HP
Pressure21MPa
Displace ment2.1cc/r
Tank14L
Oil Outlet3/8SAE

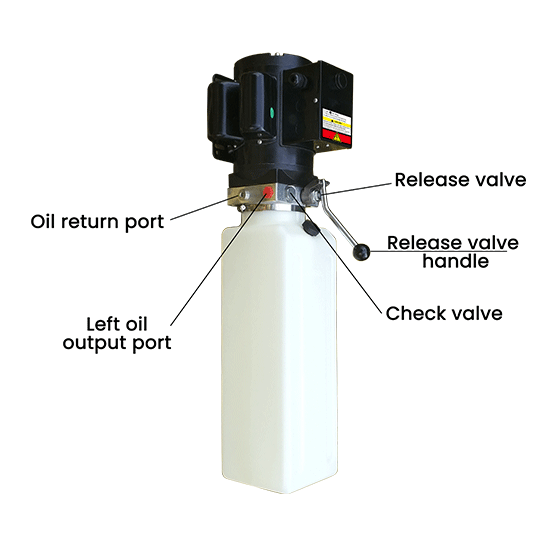

Detailed Image

Shipping Information

1 units/package, packing measurement (LxWxH) : 39 3/4”x12 3/16”x15 3/8”

Reviews

There are no reviews yet.

Be the first to review “Model: 071102”
