Features
• Driven by AMGO pneumatic pump.
• AMGO’s patented design safety device: automatic activation lock with manual release.
• Non-skid diamond platform enhances the stability.
• Hydraulic cylinder is designed and made by high standard, utilizing with top-quality oil seals.
• Removable rear tire cover plate and tool tray come as standard.
• Length/width extension kits come as optional.
• Optional tie kits and lifting jack available.

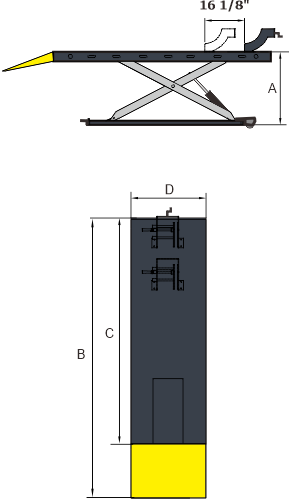

Specifications
| Model | MC-1200P | |
|---|---|---|
| Lifting Capacity | 1,200 Ibs | |
| Lifting Time | 23s | |
| Max. Lifting Height | A | 42 15/16" |
| Max. Lock Height | 40 9/16" | |
| Minimum Height | 6 1/8" | |
| Overall Length (Inc. Ramp) | B | 106 5/16" |
| Runway Length | C | 88 9/16" |
| Overall Width | D | 29 1/2" |
| Gross Weight | 531 lbs | |
| Air Pressure | 0.6 MPa |
Detailed Image

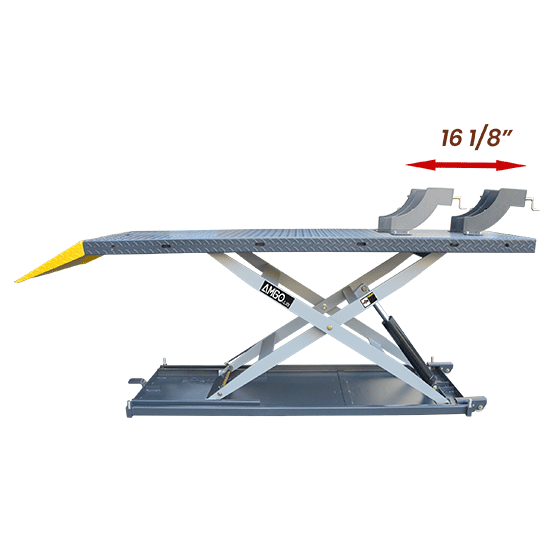

Adjustable wheel vise to accommodate various wheels. Two installation positions to fit for different wheelbases.

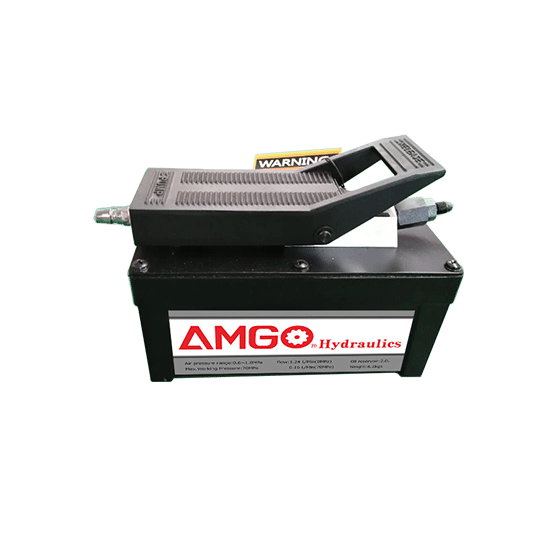

Driven by AMGO pneumatic pump.
Removable rear tire cover plate is convenient for rear wheel replacement.

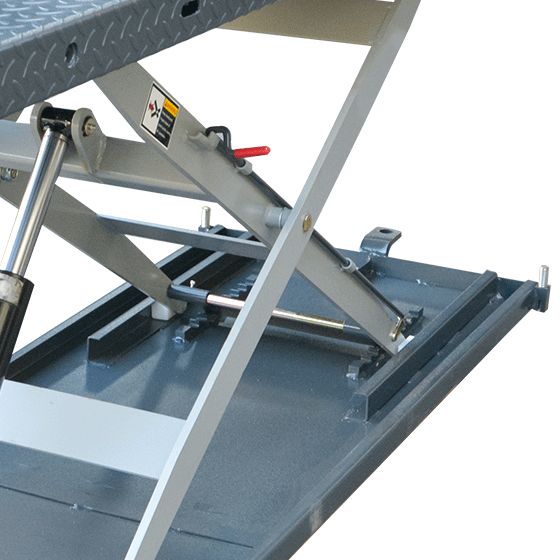

AMGO's patented design safety device: automatic activation lock with manual release.

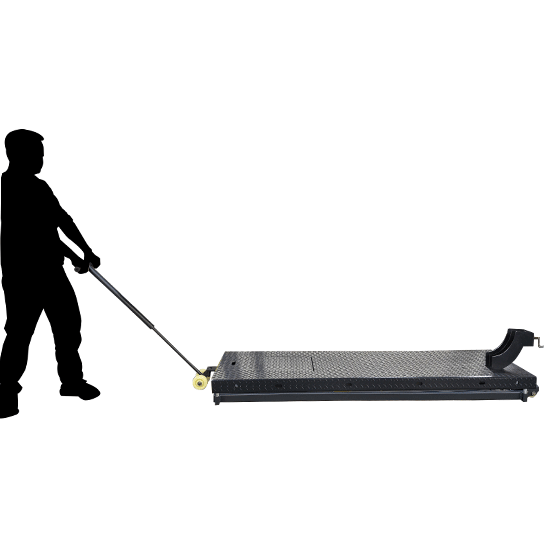

Portable design, easily roll into any servicebay.

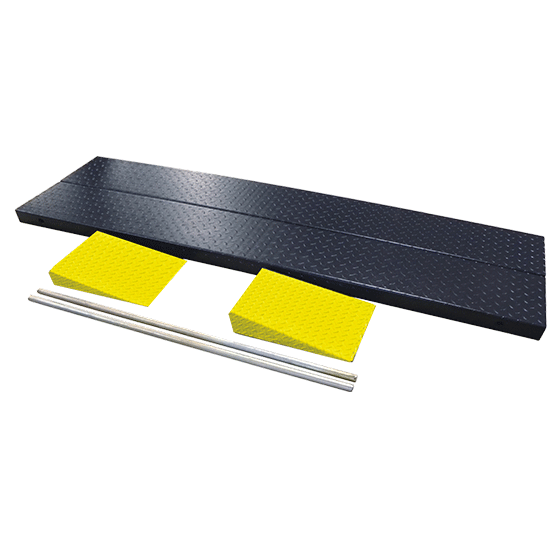

Optional width extension kit . Adds 23 5/8" in width on platform for three or four-wheel motorcycle. Kits No.: MC001
Optional length extension kits no.MC002, adds 15 3/4” in length that suitable for long wheelbases.

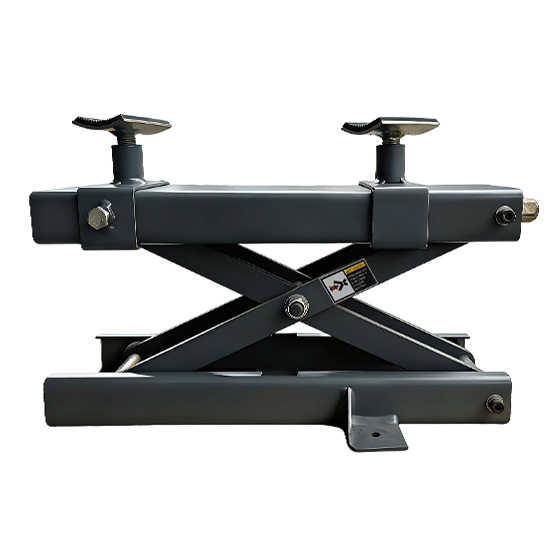

Optional sliding jack MC005, lifting capacity: 500lbs.

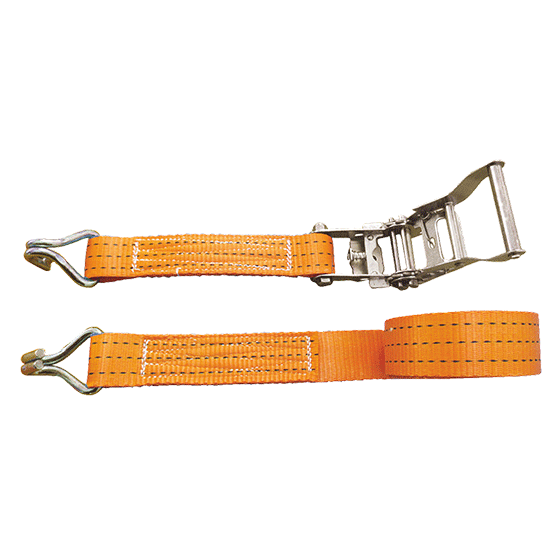

Optional tie kits no.MC006.

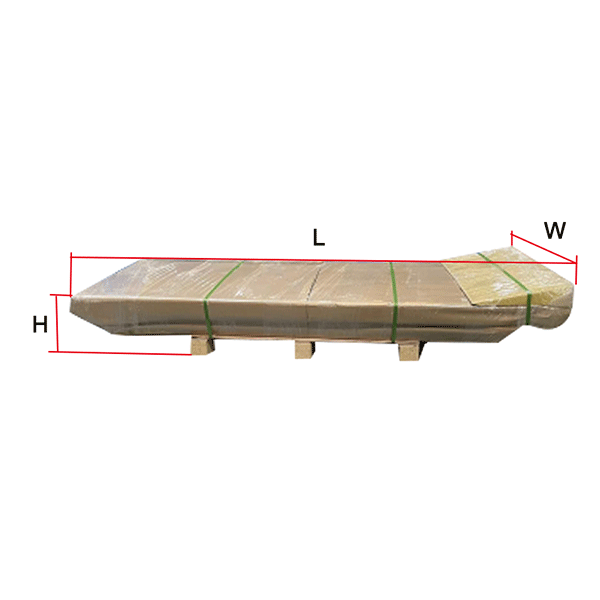

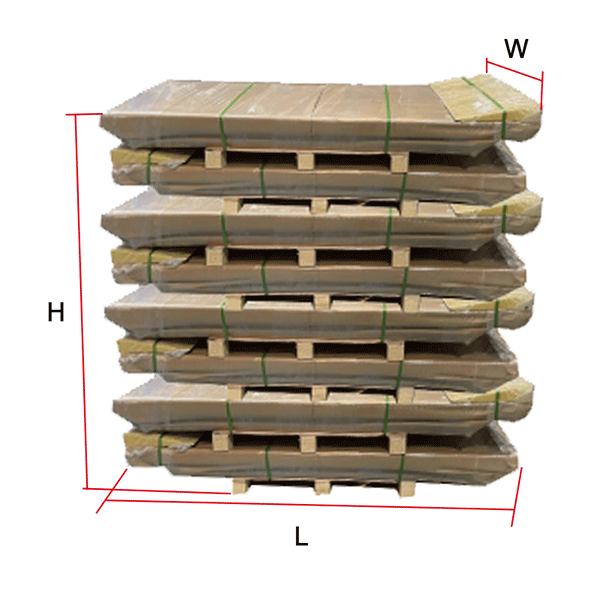

Shipping Information
8 units/package, packing measurement (LxWxH) : 89 3/4"x29 7/8"x80 1/8"
1 units/package, packing measurement (LxWxH) : 89 3/4”x29 7/8"x12 5/8""
