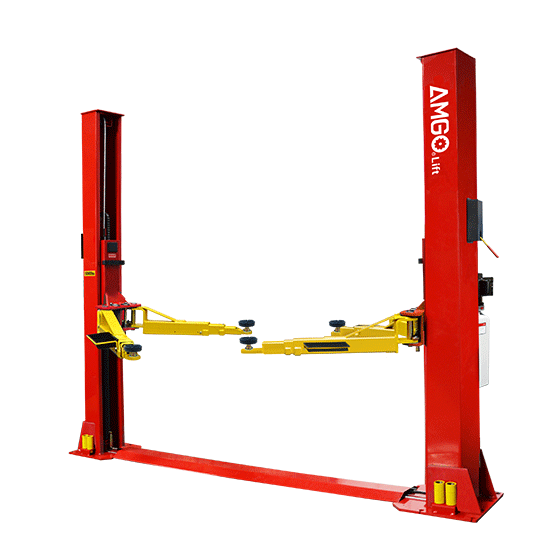

BP-9X

Features

• Lifting capacity: 9,000 lbs;
• Commercial grade with enhanced structure, designed for professional workshops and home garages;
• Symmetric four 3-stage retractable arms are suitable for more vehicles;
• Automatic arms restraint;
• Single-point manual safety lock release, simultaneously unlock both columns from one side;
• Dual-safety lock structure ensures additional safety;
• Self-lubricating UHMW polyethylene sliders;
• Areo sync cables come as standard;
• Comes with detachable toe guard and tool tray;
• Standard double-screw rubber pad ( pin dia 2″ ) with 3” extension adapters.

Specifications

Model BP-9X		Base plate two post lift
Lifting Capacity		9,000 Ibs
Lifting Time		49s
Max. Lifting height: (w/o extension adapter)	A	76 3/8"~78 1/4"
Max. Lifting height: (w/ extension adapter)		79 3/8"~81 1/4"
Max. lock height: (w/o extension adapter)		74 13/16“~76 11/16"
Max. lock height: (w/ extension adapter)		77 13/16"~79 11/16"
Overall Height	B	111 7/8"
Overall Width	C	136 1/4"
Drive-Thru Clearance	D	100 13/16”
Width Between Columns	E	112 1/4"
Minimum Pad Height	F	3 9/16"
Gross Weight		1,563 Ibs
Motor		2.0HP
QTY of Container		20 Units / 20'GP

Detailed Image

Single point safety release makes it easier for operators to unlock both columns from one column.

ETL certified AMGO power unit.

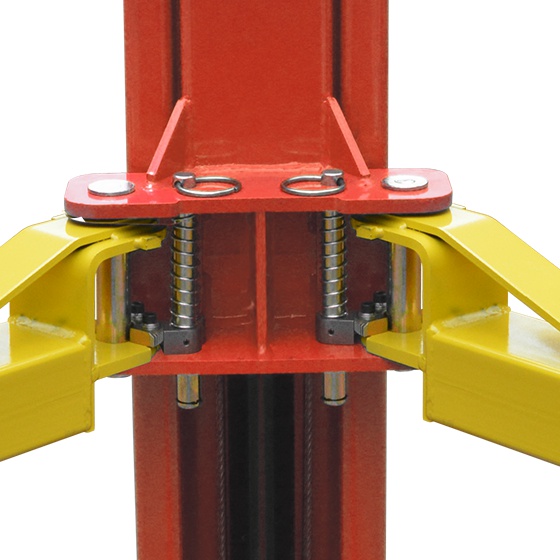

Automatic arm restraints.

Symmetric 3-stage retractable arms are suitable for more vehicles.

AMGO's exclusive dual safety lock structure.

Double-screw rubber pad with pin dia. 2", comes with 3" extension adapter.

Toe guards and tool trays come as standard.

The optional saddle adapter. Kits No.: 1102185006C

6" extension adapter comes as optional. P/N: 1102504001-01

Optional base plate extention. Kits no.: 20903

Shipping Information

2 units/package, packing measurement (LxWxH) : 115 1/2" x 20 1/8" x 59 1/8" (Packed with power unit)

3 units/package, packing measurement (LxWxH) : 115 1/2" x 20 1/8" x 88 1/8" (Packed with power unit)

Attention to forklift loading and unloading
