Features
• 2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
• Electro-air control system, which operates the self-lock safety mechanism
• Heavy-duty design, the X swrial scissors lifts use lage tube to make the lifts stronger.
• Skid proof diamond platform provides traction for tires to stay put
• Optional rolling jacks:
-RJ-6H: 6,000 lbs with manual control
-RJ-6A: 6,000 lbs with pneumatic pump
• More choices:
-Optional led lights Kits No. PX010
-Optional extension Kits No. PX001
-Optional air line Kits No. PX004A

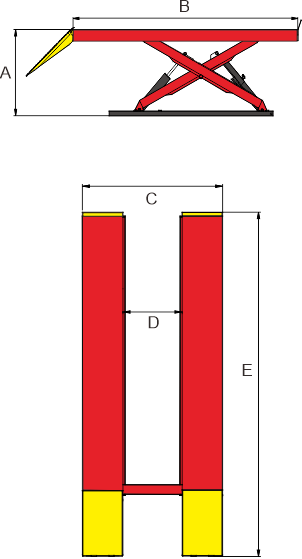

Specifications
| Model | AX-12 | |
|---|---|---|
| Lifting Capacity | 12,000 Ibs | |
| Lifting Time | 75s | |
| Max. Lifting Height | A | 72 13/16" |
| Max. Lock Height | 71 1/16" | |
| Minimum Height | 12" | |
| Runway Length | B | 197 9/16" |
| Overall Width | C | 90 3/16" |
| Width Between Runways | D | 40 15/16" |
| Overall Length (Inc. Ramps) | E | 267 1/16" |
| Gross Weight | 4,872 lbs | |
| Motor | 2.0HP |
Detailed Image
Electro-air control system, mechanical safety locks.
ETL certified AMGO power unit.

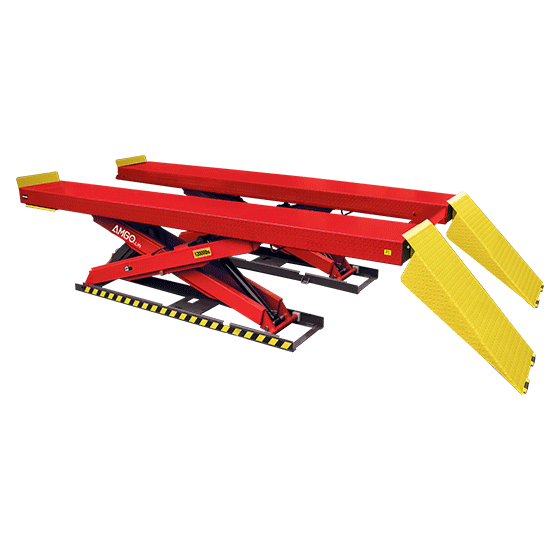

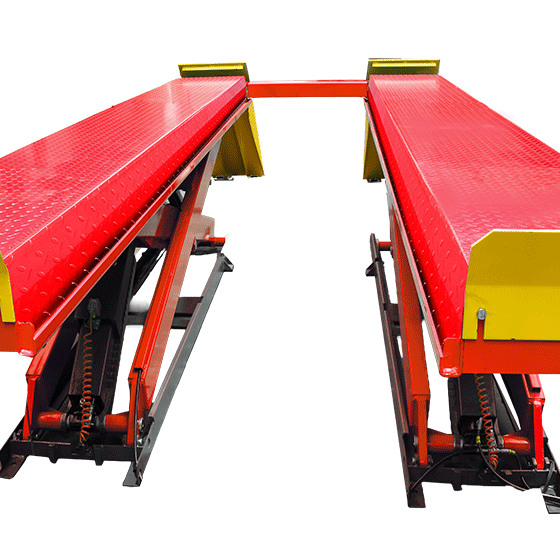

Extremely long and wide non-skid diamond platforms are capable of servicing varying wheelbase vehicles.

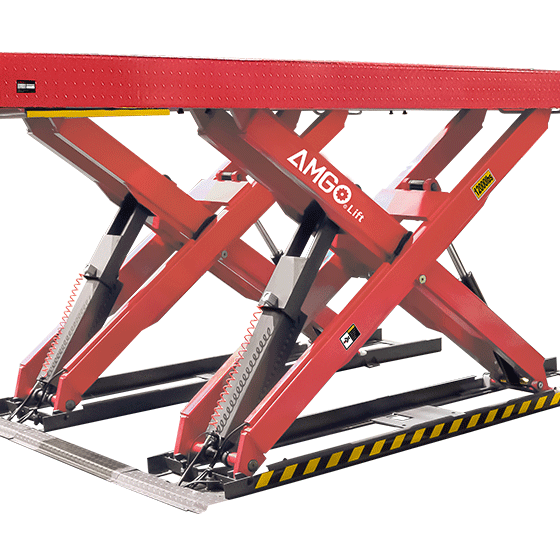

Two groups of total 4 hydraulic cylinders are intergrated to assure the equalization and safety of both platforms.

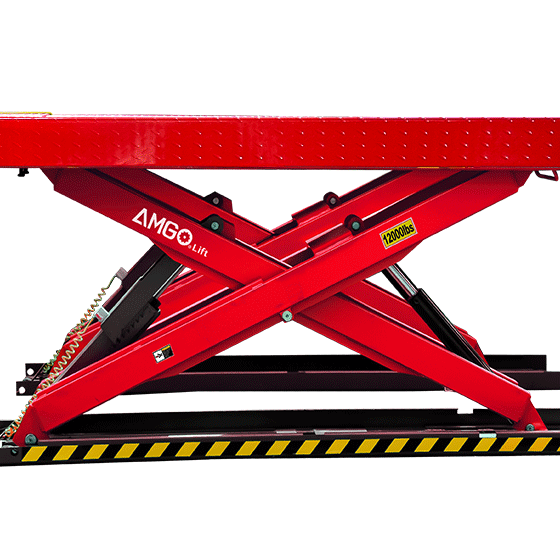

Heavy duty design with robust X sicissors made of large steel tubes to ensure strong capabilities under heavy workloads.

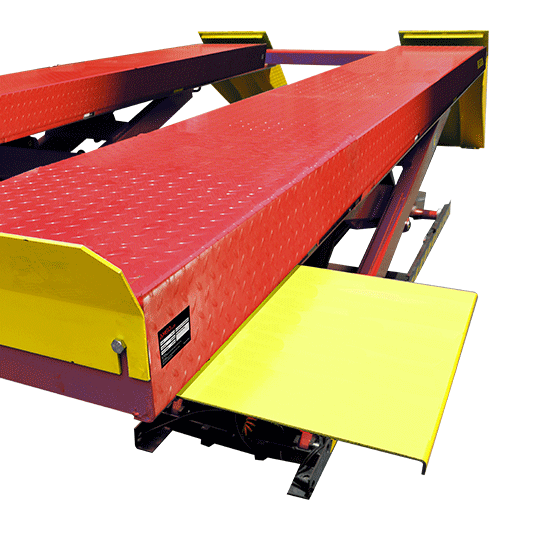

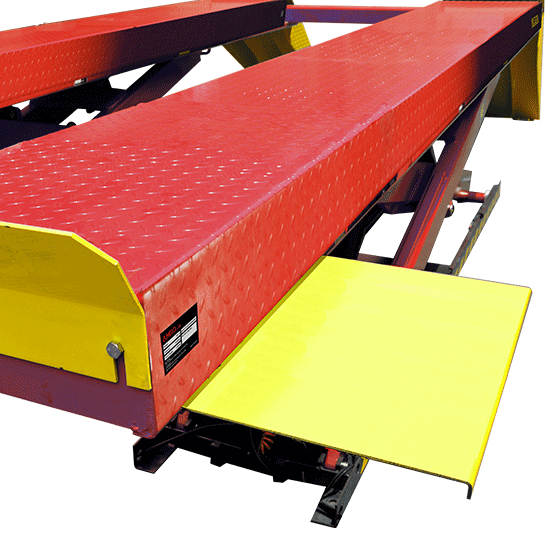

Nice design pull-out tool tray comes as standard.
Electro-air control cabinet.
Optional: extension platform, kits no.: PX001
Optional air line kits (kits no.: PX004A)

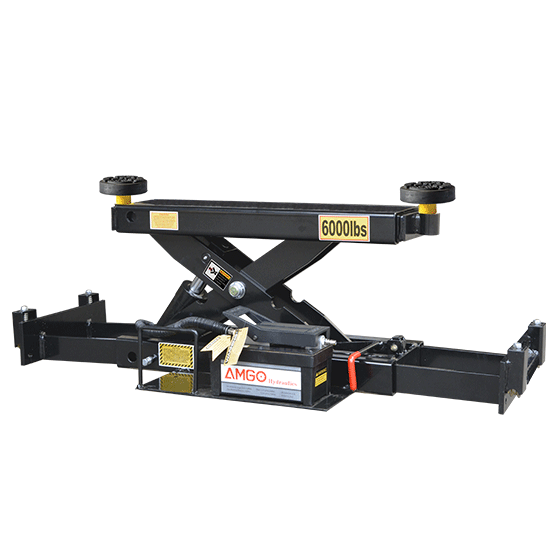

Optional RJ-6H sliding jack with hand pump, 2.5" extension adapters included. Capacity 6,000lbs.

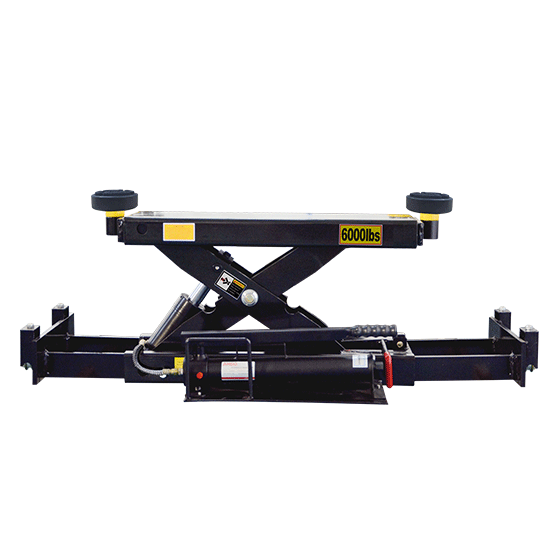

Optional RJ-6A sliding jack with pneumatic hydraulic, 2.5" extension adapters included. Capacity 6,000lbs.
Optional RJ-8A sliding jack with pneumatic hydraulic, 2.5" and 5" extension adapters included. Capacity 8,000lbs.
Shipping Information
1 units/package, packing measurement (LxWxH): 203 1/2" x 29 7/8"x 39 3/4".
2 units/package, packing measurement (LxWxH) : 203 1/2" x 29 7/8"x 80".
Attention to forklift loading and unloading.
