Features
- 10,000lbs capacity, heavy-duty design;
- Flush-mount design, provides unobstructedclear shop floor;
- Full rise design ensures generous workspace beneath the vehicle;
- Dual extendable platforms enhance the compatibility for various wheelbases;
- Mechanic locking system with air-release;
- Electric-hydraulic power system, with control power unit;
- Photocell device ensures the absolute synchronization ;
- Automatic safety stop device come standard;
- 3” rubber pads come standard.
Specifications
| Model | XL-10F | |
|---|---|---|
| Lifting Capacity | 10,000 Ibs | |
| Lifting Time | 49s | |

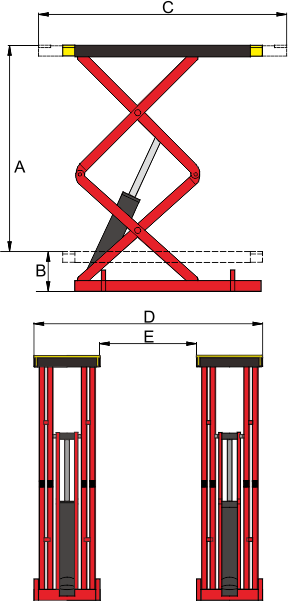

| Max. Lifting Height | A | 75" |
| Max. Lock Height | 72 5/8" | |
| Minimum Height | B | 13 3/4" |
| Runway Length | C | 65 1/8"~80 5/16" |
| Overall Width | D | 74 13/16" |
| Width Between Runways | E | 31 1/2" |
| Gross Weight | 1,903 lbs | |
| Motor | 2.0HP |
Detailed Image

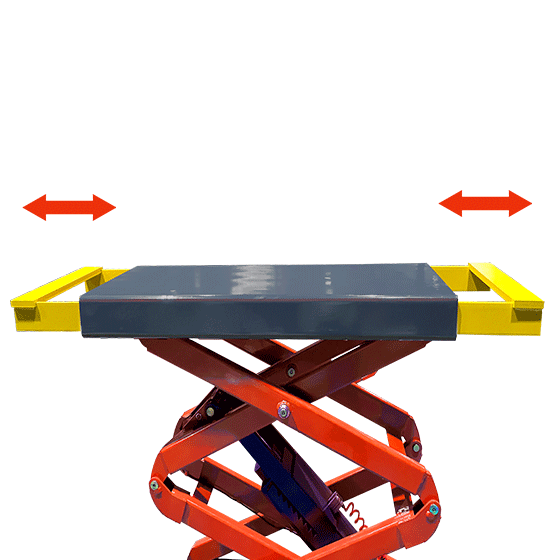

Dual extendable platforms enhance the compatibility for various wheelbases.

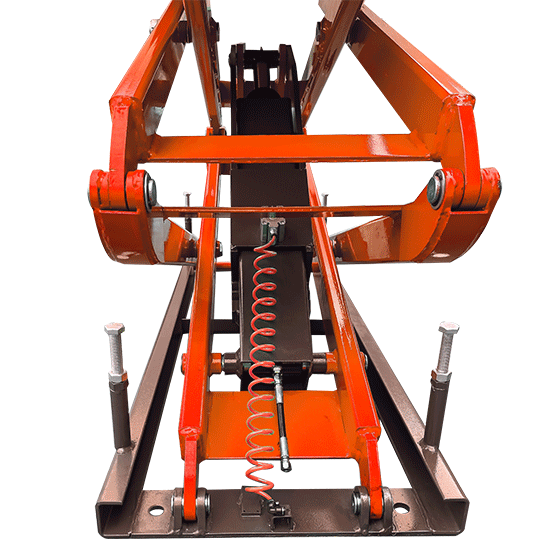

Mechanical automatic safety device, Air-operated safety release. Free access allowed from either side.

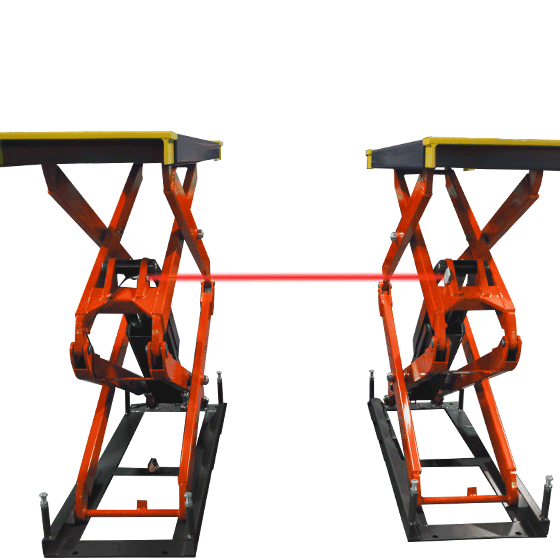

Hydraulic synchronization system. Photocell detection and protection.

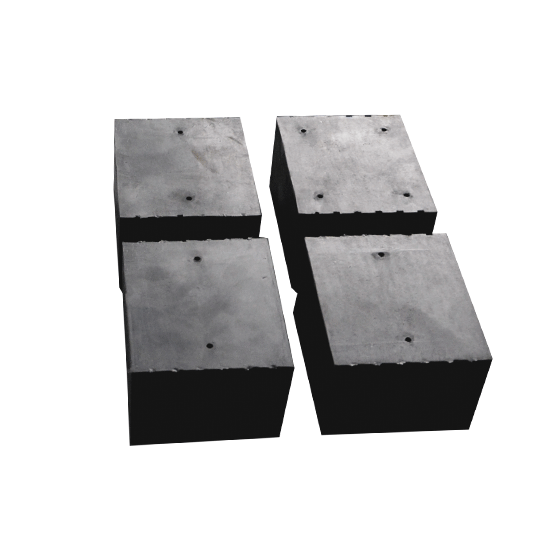

3" Rubber pads come standard.
Optional: Leveling bar. Kits No.: SX003

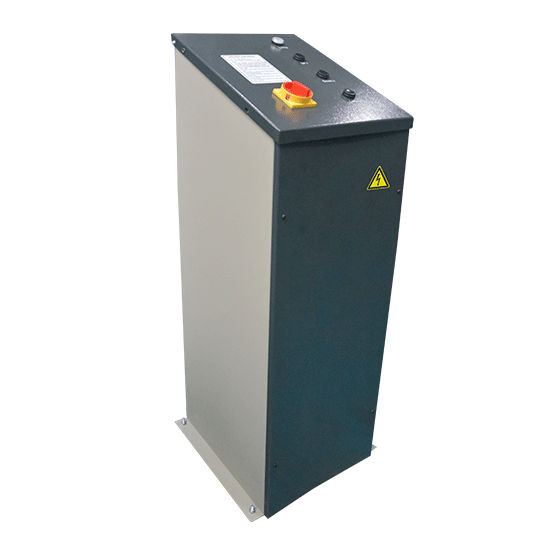

Electro control system, with control cabinet for enhanced safety.
Shipping Information
2 units/package, packing measurement (LxWxH) :69 7/8" x 21 5/8" x 64 15/16"
Attention to forklift loading and unloading
