Features
• 30,000 lbs capacity, 59″ longer than PRO-30;
• AMGO ETL certified power unit comes as standard;
• Mechanical self-locking safety device with air-driven lock release;
• Both primary multiple safety locks and cable-slack protection system are equipped as standard;
• Cable-driven, utilizing aircraft standard high quality cables;
• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve;
• Non-skid diamond platforms allow two width setting.
Specifications
| Model | PRO-30E | |
|---|---|---|
| Lifting Capacity | 30,000 Ibs | |
| Lifting Time | 133s | |
| Overall Length (Inc Ramps) | A | 366 1/8" |
| Outside Edge of Crossbeams | B | 307 1/16" |
| Overall Width | C | 147 9/16" |
| Width Between Columns | D | 130" |
| Max. Lifting Height | E | 75 3/16" |
| Max. Lock Height to top of runway | 72 1/16" | |
| Overall Height | F | 92" |
| Minimum Height | G | 10 1/4" |
| Max. Underneath Height | H | 66 5/16" |
| Max. Lock Underneath Runway | 63 3/16" | |
| Drive-Thru Clearance | I | 115 15/16" |
| Width Between Runways | J | 46" 54 1/16“ |
| Outside Edge of Runways | K | 94" 102 1/8” |
| Gross Weight | 6,860 lbs | |
| Motor | 2.0HP |
Detailed Image

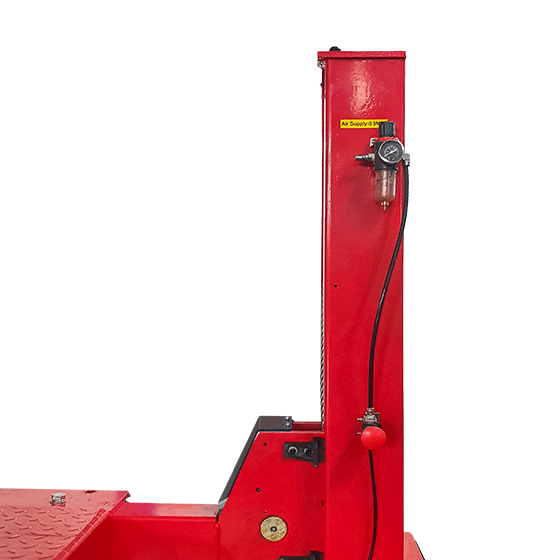

Oil-water separator and solenoid air valve are installed on the power side column.

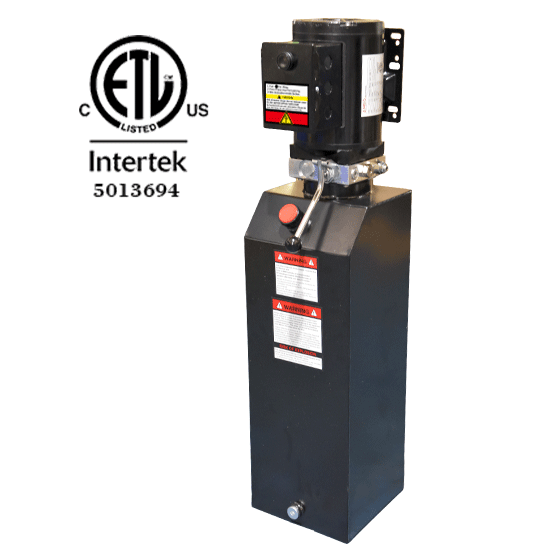

ETL certified AMGO power unit.
Primary multiple safety locks and cable-slack protection system come standard.
Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.

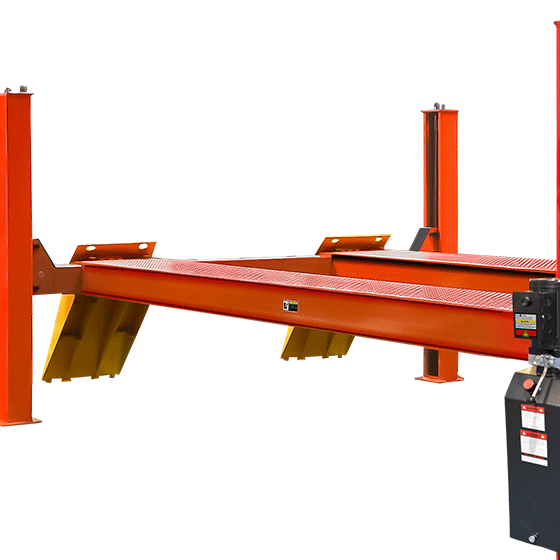

Non-slip diamond platforms allow two-width setting.
Optional Air line kits All AMGO four post lifts are designed to use the air line kits for rolling jack. Kits No.:40106A

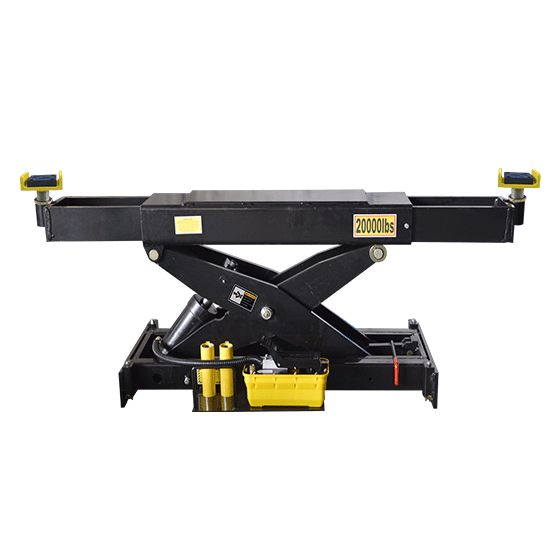

Optional Rolling Jacks RJ-20A: pneumatic hydraulic type, 20,000lbs capacity.
Shipping Information

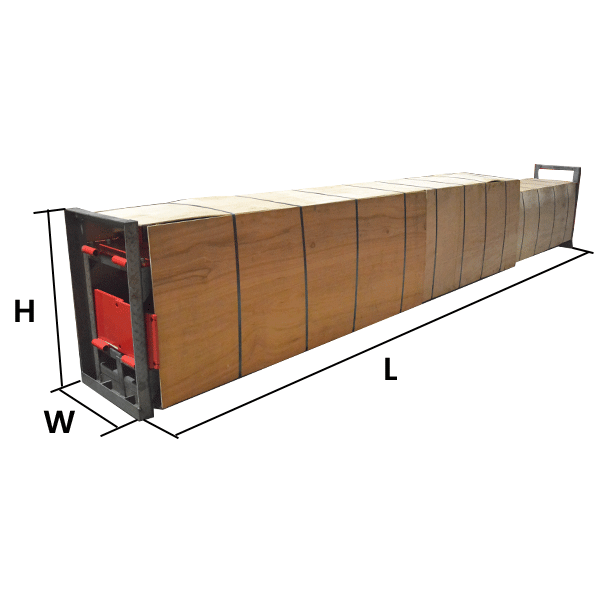

1 units/package, packing measurement (LxWxH): 317 5/16" x 26"x 39 3/8". Packed with Power Unit.

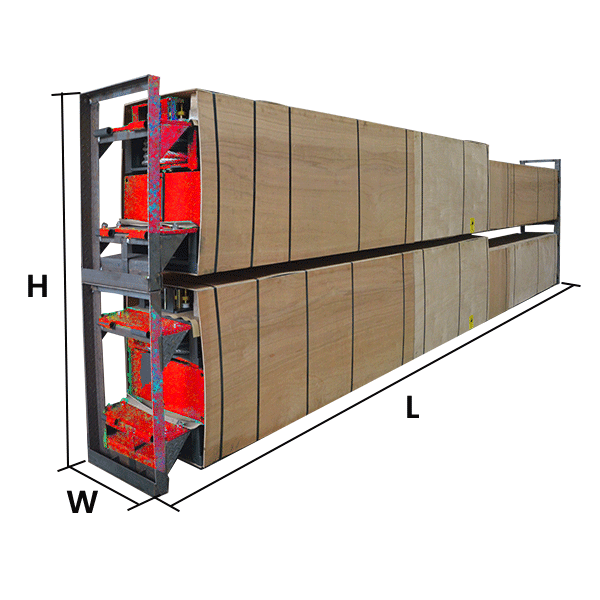

2 units/package, packing measurement (LxWxH) : 317 5/16" x 26"x 78 3/4"

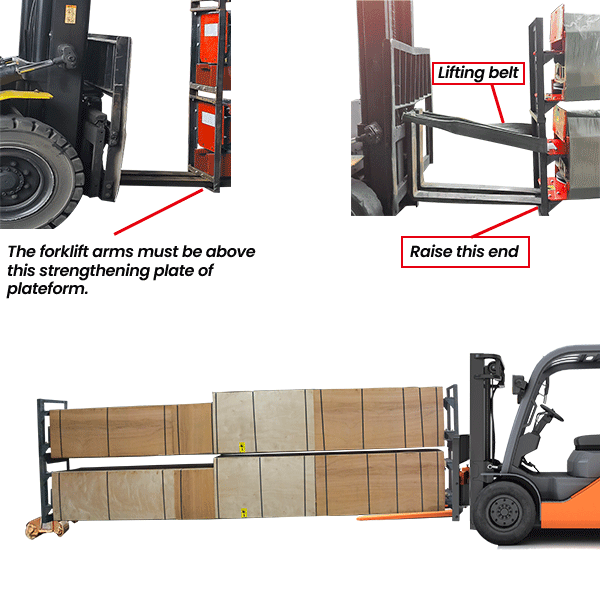

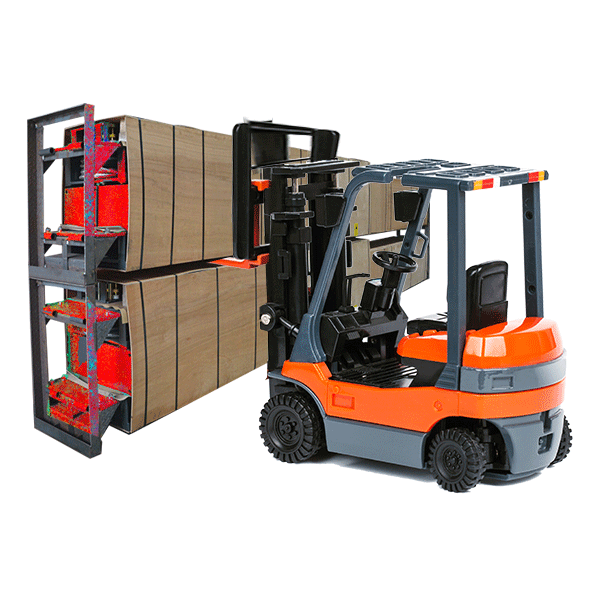

After the machine is pulled out from the container, use the forklift to lift the machine from the middle position.

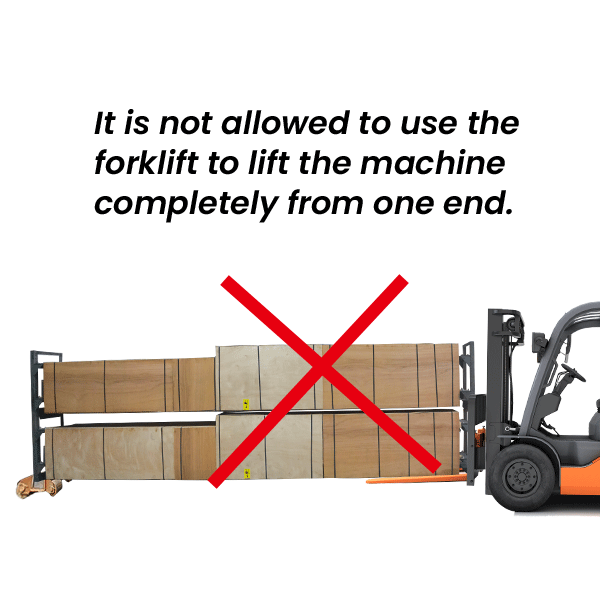

Use a forklift to lift up one end of the machine about 2"-5" from the ground, and pull the machine out from the container with the assistance of lifting belt or other cables.
